Out of Stock

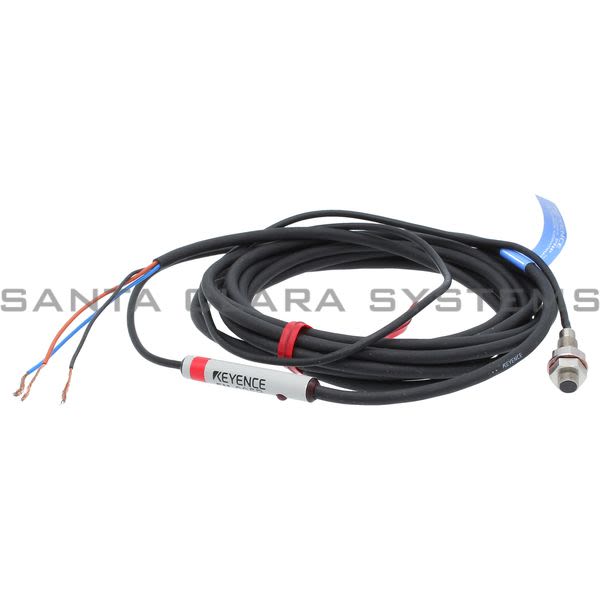

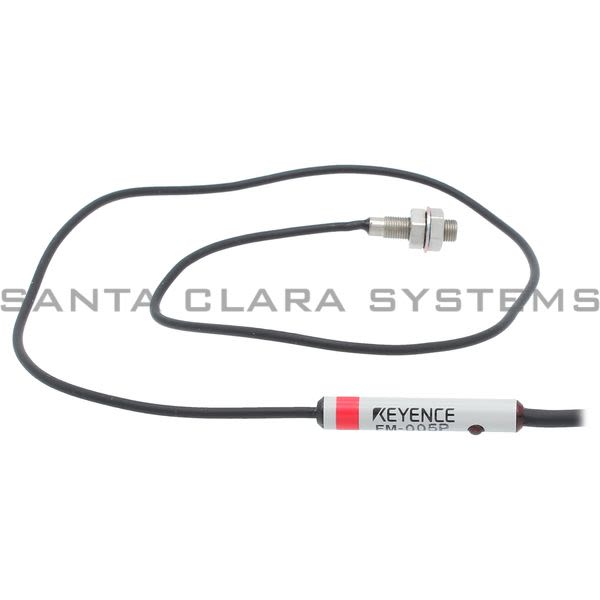

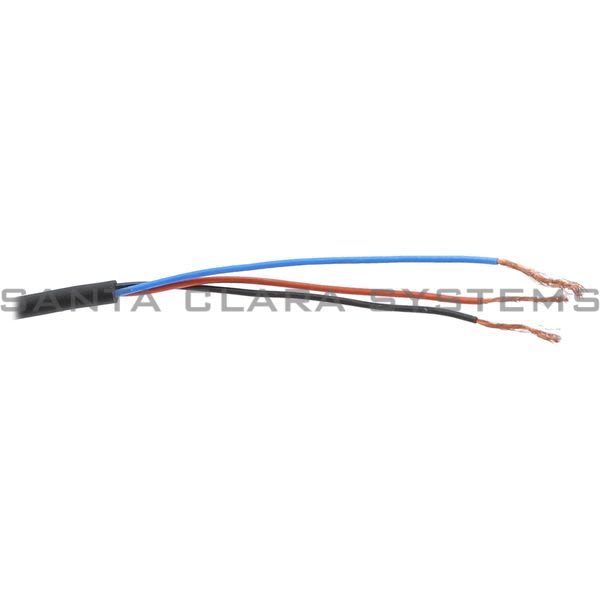

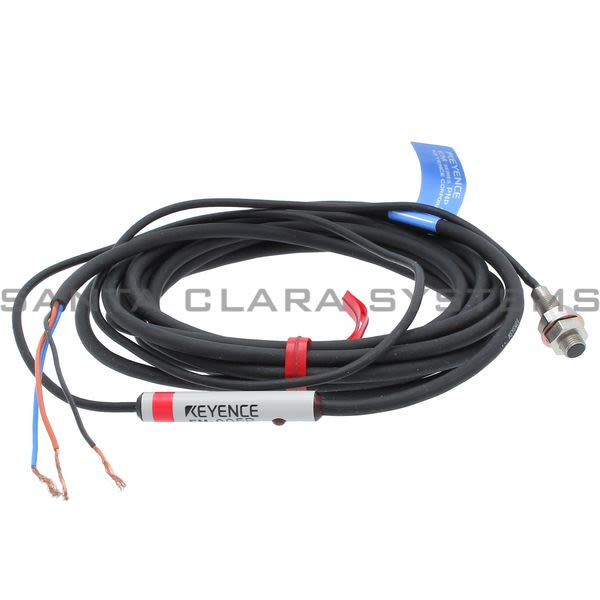

Keyence EM-005P Proximity Switch Product Image

EM-005P

Keyence - Proximity Switch

Product Summary:

Type: Shielded
Shape: M5 Threaded
Detecting distance: 1.0 mm 0.04" 15%
Standard target (iron, t=1 mm 0.04"): 5 x 5 mm 0.20"
Hysteresis: 10% max. of detecting distance

Current response time:

By 5AM PT on Monday

Emergency?

Description: Proximity Switch
Control output: PNP: 200 mA (30 V) max., Residual voltage: 1 V max.
Housing: Stainless steel
Rating - Power voltage: 10.8 to 30 VDC, Ripple (P-P) 10% max.*1
Rating - Current consumption.: 20 mA max.
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating temperature range: -25 to +80C -13 to 176F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 95%, No condensation
Weight (including nuts and 2-m 6.6' cable): Approx 40 g
Footnotes: *1 Make sure that the power voltage stays within 10.8 V to 30 V even if it is affected by ripple effects.

Type: Shielded
Shape: M5 Threaded
Detecting distance: 1.0 mm 0.04" 15%
Detectable object: Ferrous metals (see Characteristics for non-ferrous metals)
Standard target (iron, t=1 mm 0.04"): 5 x 5 mm 0.20"
Hysteresis: 10% max. of detecting distance
Response frequency: 1.2 kHz
Operation mode: N.O.
Temperature characteristics: 10% max. of detecting distance at +23C 73.4F, within -10 to +70C 14 to 158F
Display indicator: Red LED
Output: PNP

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EM-005P . Santa Clara Systems carries 1,475 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
