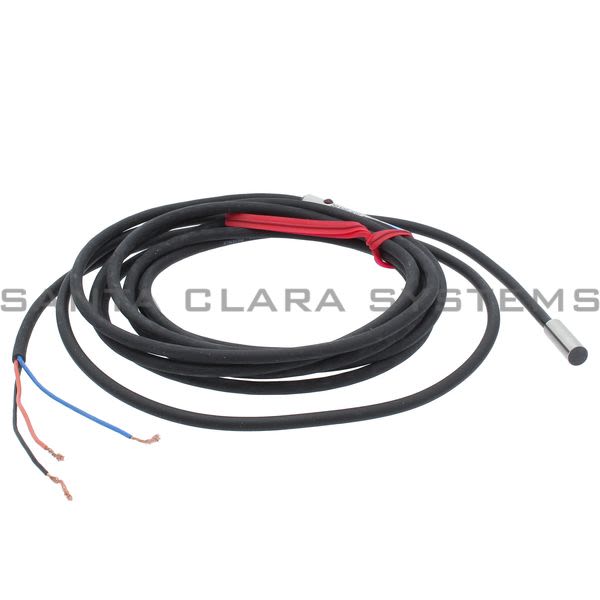

• Keyence EM-054 Proximity Sensor Product Image

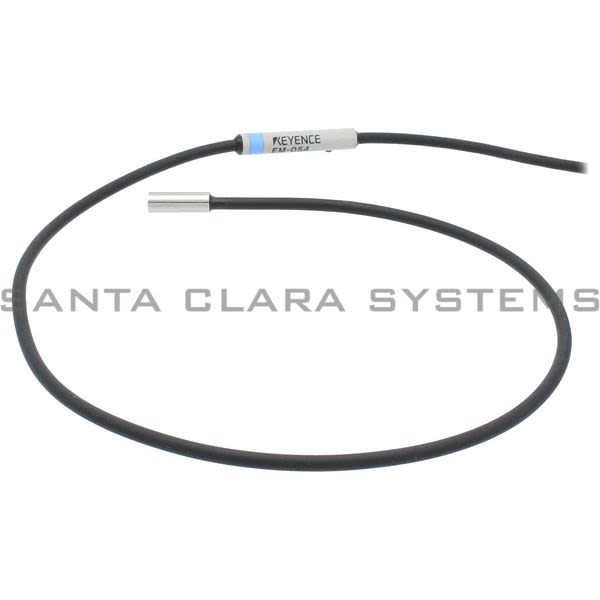

  • Keyence EM-054 Proximity Sensor Product Image

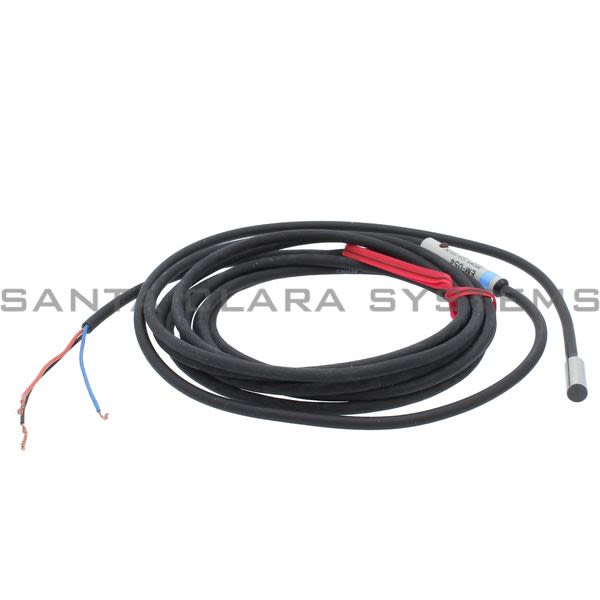

  • Keyence EM-054 Proximity Sensor Product Image
  • Keyence EM-054 Proximity Sensor Product Image
  • Keyence EM-054 Barcode

EM-054

Product Summary:

  • Type: Shielded
  • Shape: 5.4 mm 0.21" dia Cylindrical.
  • Detecting distance: 1.2 mm 0.05" 10%
  • Standard target (iron, t=1 mm 0.04"): 6 x 6 mm 0.24"
  • Hysteresis: 10% max. of detecting distance
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Proximity Sensor
  • Control output: NPN: 200 mA (40 V) max., Residual voltage: 1 V max.
  • Housing: Stainless steel
  • Rating - Power voltage: 10.8 to 30 VDC, Ripple (P-P) 10% max.*1
  • Rating - Current consumption.: 12 mA max.
  • Environmental resistance - Enclosure rating: IP67
  • Environmental resistance - Operating temperature range: -25 to +80C -13 to 176F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 95%, No condensation
  • Weight (including nuts and 2-m 6.6' cable): Approx 40 g
  • Footnotes: *1 Make sure that the power voltage stays within 10.8 V to 30 V even if it is affected by ripple effects.
  • Type: Shielded
  • Shape: 5.4 mm 0.21" dia Cylindrical.
  • Detecting distance: 1.2 mm 0.05" 10%
  • Detectable object: Ferrous metals (see Characteristics for non-ferrous metals)
  • Standard target (iron, t=1 mm 0.04"): 6 x 6 mm 0.24"
  • Hysteresis: 10% max. of detecting distance
  • Response frequency: 1.2 kHz
  • Operation mode: N.O.
  • Temperature characteristics: 10% max. of detecting distance at +23C 73.4F, within -10 to +70C 14 to 158F
  • Display indicator: Red LED
  • Output: NPN
