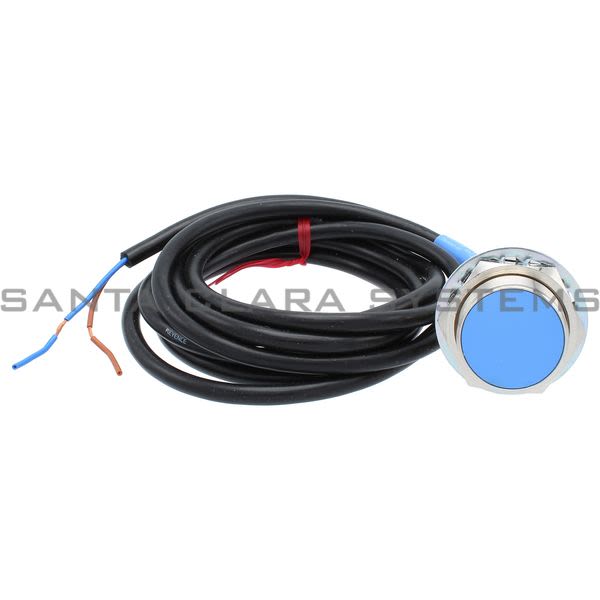

• Keyence EV-30M Proximity Sensor Product Image

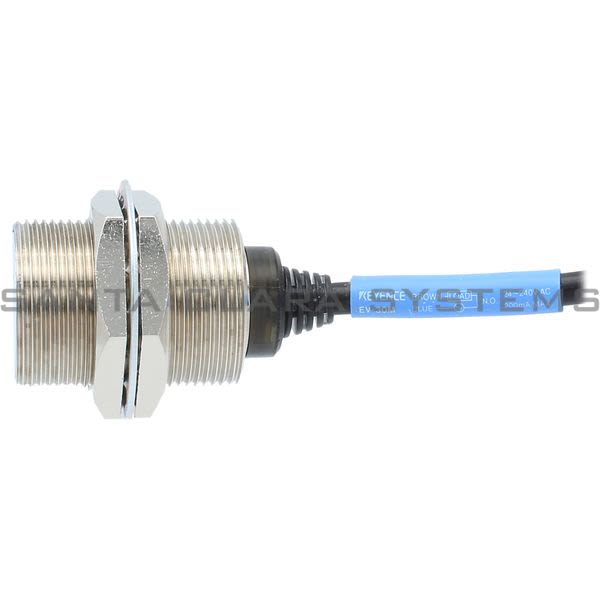

  • Keyence EV-30M Proximity Sensor Product Image
  • Keyence EV-30M Proximity Sensor Product Image
  • Keyence EV-30M Proximity Sensor Product Image
  • Keyence EV-30M Barcode

EV-30M

Product Summary:

  • Type: AC , Shielded
  • Shape: M30
  • Detecting distance: 10 mm 0.39" 10%
  • Standard target (iron, t=1 mm 0.04"): 30 x 30 mm 1.18" x 1.18"
  • Hysteresis: 10% max. of detecting distance
Get a Quote
           or
  • Description: Proximity Sensor
  • Rating - Current consumption (leakage current): 1.3 mA max. (at 240 VAC)
  • Rating - Residual voltage: ?
  • Environmental resistance - Enclosure rating: IP67
  • Environmental resistance - Operating temperature range: -25 to +80C -13 to 176F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 95%, No condensation
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude in X, Y, and Z directions, 2 hours
  • Environmental resistance - Shock resistance: 1,000 m/s2 3280.8' in X, Y, and Z directions, 3 times respectively
  • Case material: Nickel-plated brass
  • Accessories: Nut 2, toothed washer 1, instruction manual
  • Weight: Approx. 300 g
  • Footnotes: *1 This product does not comply with the EMC directive.
  • Type: AC , Shielded
  • Shape: M30
  • Detecting distance: 10 mm 0.39" 10%
  • Detectable object: Ferrous metals (see Characteristics for nonferrous metals)
  • Standard target (iron, t=1 mm 0.04"): 30 x 30 mm 1.18" x 1.18"
  • Hysteresis: 10% max. of detecting distance
  • Response frequency: 25 Hz
  • Operation mode: N.O.
  • Temperature characteristics: 10% max. of detecting distance at 23C 73.4F, within -25 to +70C -13 to +158F
  • Control output (switching capacity): 5 to 200 mA
  • Protection circuit: Short-circuit
  • Cable length: 2 m 6.6'
  • Rating - Power voltage: 24 to 240 VAC, 50/60 Hz
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EV-30M . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
