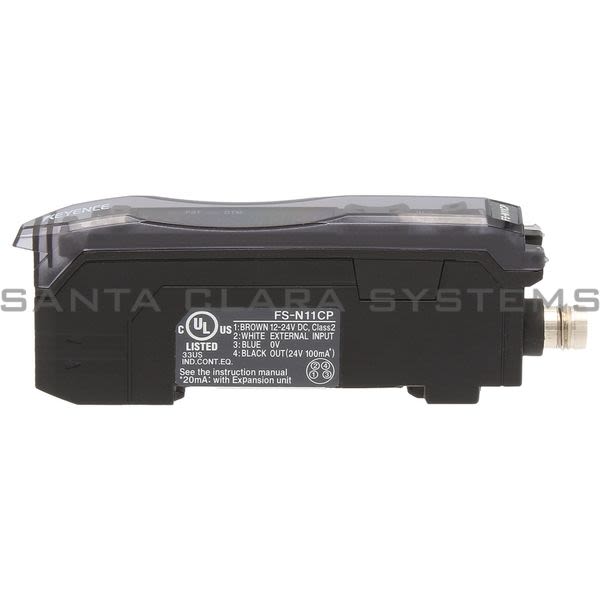

• Keyence FS-N11CP Photoelectric Amplifier Product Image

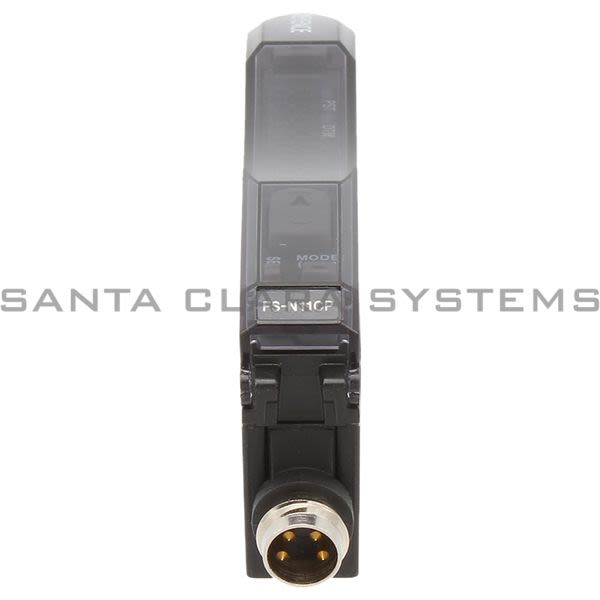

  • Keyence FS-N11CP Photoelectric Amplifier Product Image

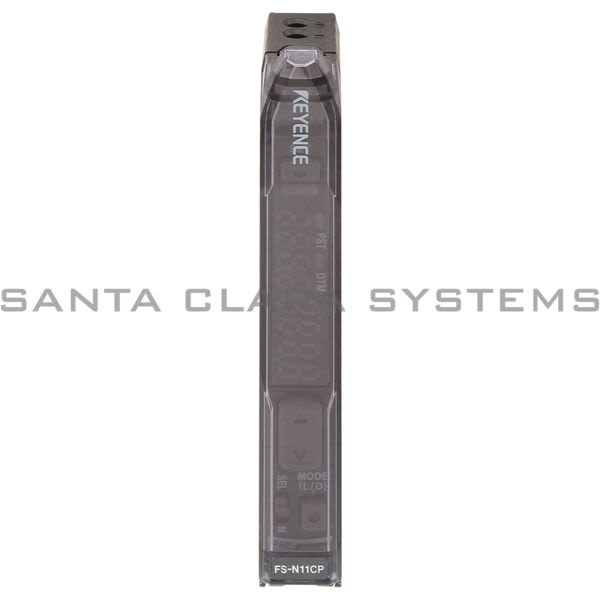

  • Keyence FS-N11CP Photoelectric Amplifier Product Image
  • Keyence FS-N11CP Photoelectric Amplifier Product Image
  • Keyence FS-N11CP Barcode

FS-N11CP

Product Summary:

  • Type: Standard 1 output M8 connector*1
  • Output: PNP
  • Main unit/expansion unit: Main unit
  • Light source LED: Red, 4-element LED
  • APC: ON/OFF switchable (Factory setting: OFF)
Get a Quote

Current response time:

10 Minutes 32 Seconds
  • Description: Photoelectric Amplifier
  • Rating - Current Consumption: Normal: 950 mW or less (39 mA max. at 24 V, 52 mA max. at 12 V)*2 Eco on mode: 850 mW or less (35 mA max. at 24 V, 44 mA max. at 12 V)*2 Eco Full mode: 520 mW or less (21 mA max. at 24 V, 26 mA max. at 12 V)
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 20000 lux or less; Sunlight: 30000 lux or less
  • Environmental resistance - Operating ambient temperature: -20 to +55 C -4 to +131 F (no freezing)*3
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (no condensation)
  • Environmental resistance - Vibration resistance: 10 to 55 Hz Compound amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
  • Environmental resistance - Shock resistance: 500 m/s2 3 times for each of X,Y,Z axis
  • Case material: Both main unit and expansion unit housing material: Polycarbonate
  • Weight: Approx. 22 g
  • Footnotes: *1 Use a cable length of 30 m 98.43' or less for M8 connector and e-CON connector types. *2 Increases 100 mW (4.0 mA) for High Speed mode *3 One or two more units connected: -20 to +55C (-4 to +131F); 3 to 10 more units connected: -20 to +50C (-4 to +122F); 11 to 16 more units connected: -20 to +45C (-4 to +113F). When using 2-outputs, one unit is counted as two units. All temperature regulations are for when the unit is mounted on a DIN rail and installed on metal sheeting.
  • Type: Standard 1 output M8 connector*1
  • Output: PNP
  • Main unit/expansion unit: Main unit
  • Control output: 1 PNP open collector 24 V; 1 output max: 100 mA or less; 2 output total: 100 mA or less (used stand-alone)/20 mA or less (multiple connections); residual voltage 1 V or less
  • External input: 1 Input time 2 ms (ON)/20 ms (OFF) or more (25 ms or more (ON/OFF) when external calibration is selected.)
  • Response time: 50 ?s (HIGH SPEED)/250 ?s (FINE)/500 ?s (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA)
  • Multiple connections to Expansion units: Up to 16 units can be connected total (two output type is treated as two units)
  • Light source LED: Red, 4-element LED
  • APC: ON/OFF switchable (Factory setting: OFF)
  • Number of interference prevention units: 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA (When set to double, the number of interference-prevention units will be doubled.)
  • Rating - Power voltage: 12 - 24 V DC 10% ripple (P-P) 10% or less
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FS-N11CP . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
