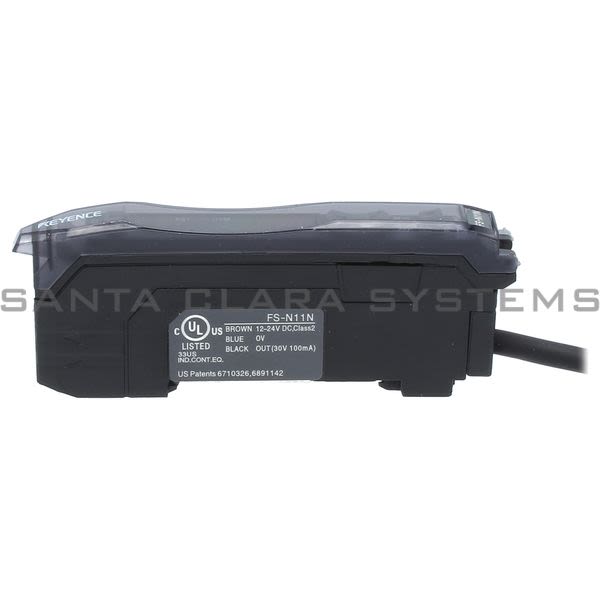

• Keyence FS-N11N Fiber Optic Sensor Product Image

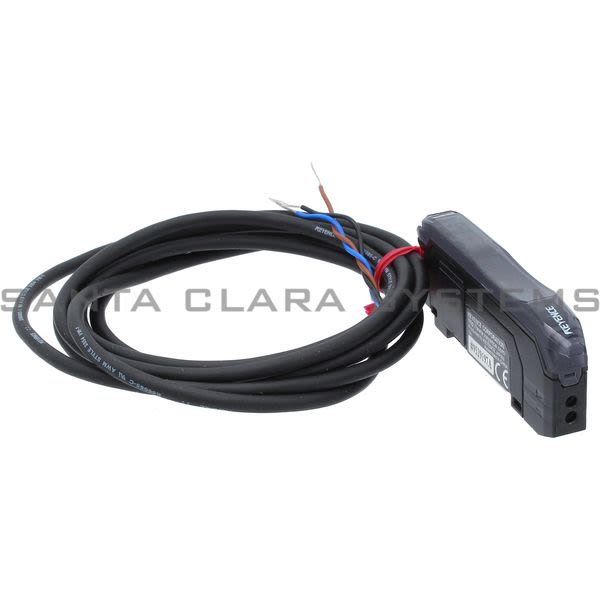

  • Keyence FS-N11N Fiber Optic Sensor Product Image

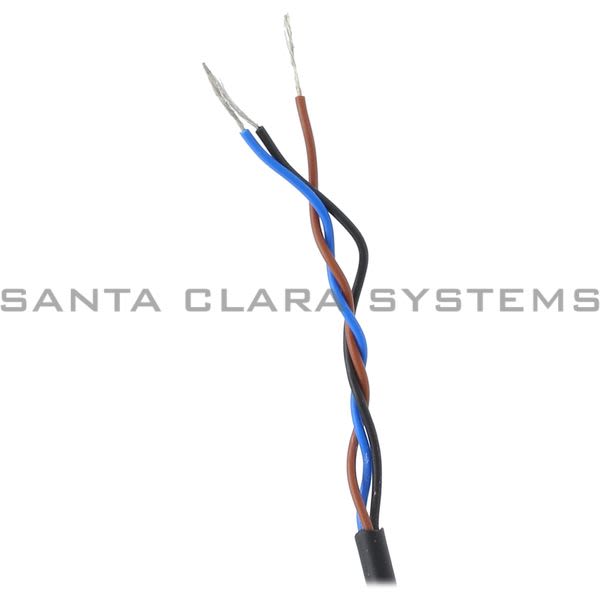

  • Keyence FS-N11N Fiber Optic Sensor Product Image
  • Keyence FS-N11N Fiber Optic Sensor Product Image
  • Keyence FS-N11N Barcode

FS-N11N

Product Summary:

  • Type: Standard 1 output Cable
  • Output: NPN
  • Main unit/expansion unit: Main unit
  • Monitor output (1-5 V): -
  • External input: -
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Fiber Optic Sensor
  • Rating - Power voltage: 12 - 24 V DC 10% ripple (P-P) 10% or less
  • Rating - Current Consumption: Normal: 900 mW or less (36 mA max. at 24 V, 48 mA max. at 12 V)*1 Eco on mode: 800 mW or less (32 mA max. at 24 V, 39 mA max. at 12 V)*1 Eco Full mode: 470 mW or less (19 mA max. at 24 V, 23 mA max. at 12 V)
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 20000 lux or less; Sunlight: 30000 lux or less
  • Environmental resistance - Operating ambient temperature: -20 to +55 C -4 to +131 F (no freezing)*2
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (no condensation)
  • Environmental resistance - Vibration resistance: 10 to 55 Hz Compound amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
  • Environmental resistance - Shock resistance: 500 m/s2 3 times for each of X,Y,Z axis
  • Case material: Both main unit and expansion unit housing material: Polycarbonate
  • Weight: Approx. 75 g
  • Footnotes: *1 Increases 100 mW (4.0 mA) for High Speed mode *2 One or two more units connected: -20 to +55C (-4 to +131F); 3 to 10 more units connected: -20 to +50C (-4 to +122F); 11 to 16 more units connected: -20 to +45C (-4 to +113F). When using 2-outputs, one unit is counted as two units. All temperature regulations are for when the unit is mounted on a DIN rail and installed on metal sheeting.
  • Type: Standard 1 output Cable
  • Output: NPN
  • Main unit/expansion unit: Main unit
  • Control output: 1 NPN open collector 24 V; 1 output max: 100 mA or less; 2 output total: 100 mA or less (used stand-alone)/20 mA or less (multiple connections); residual voltage 1 V or less
  • Monitor output (1-5 V): -
  • External input: -
  • Response time: 50 ?s (HIGH SPEED)/250 ?s (FINE)/500 ?s (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA)
  • Multiple connections to Expansion units: Up to 16 units can be connected total (two output type is treated as two units)
  • Light source LED: Red, 4-element LED
  • APC: ON/OFF switchable (Factory setting: OFF)
  • Number of interference prevention units: 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA (When set to double, the number of interference-prevention units will be doubled.)
