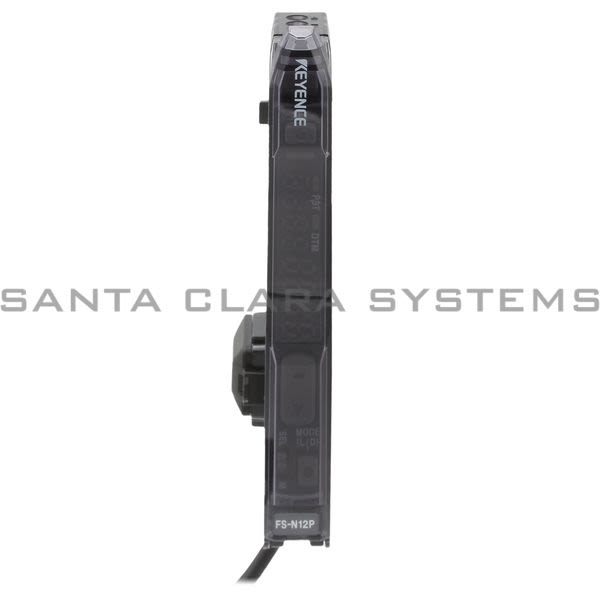

• Keyence FS-N12P Digital Fiber Sensor Product Image

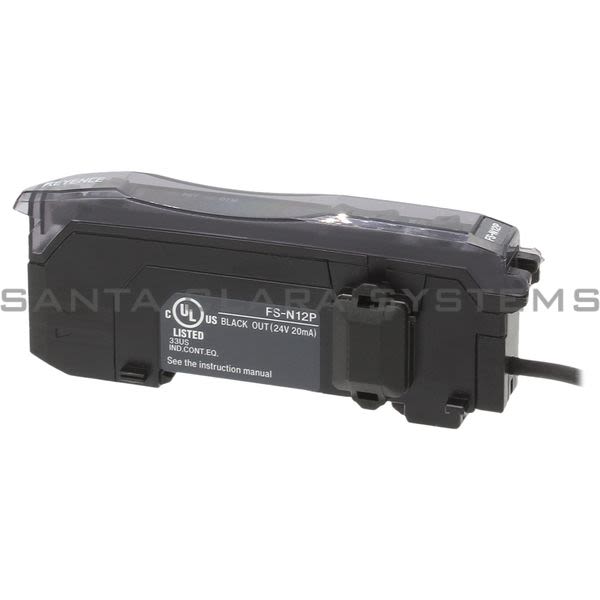

  • Keyence FS-N12P Digital Fiber Sensor Product Image

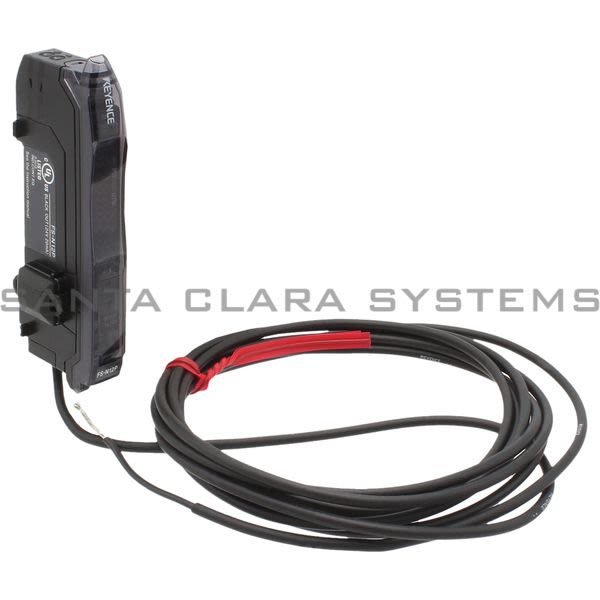

  • Keyence FS-N12P Digital Fiber Sensor Product Image
  • Keyence FS-N12P Digital Fiber Sensor Product Image
  • Keyence FS-N12P Barcode

FS-N12P

Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Digital Fiber Sensor
  • Weight: Approx. 45 g
  • Footnotes: *1 Increases 100 mW (4.0 mA) for High Speed mode *2 One or two more units connected: -20 to +55C (-4 to +131F); 3 to 10 more units connected: -20 to +50C (-4 to +122F); 11 to 16 more units connected: -20 to +45C (-4 to +113F). When using 2-outputs, one unit is counted as two units. All temperature regulations are for when the unit is mounted on a DIN rail and installed on metal sheeting.
  • Type: Standard 1 output Cable
  • Response time: 50 ?s (HIGH SPEED)/250 ?s (FINE)/500 ?s (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA)
  • Output: PNP
  • Main unit/expansion unit: Expansion unit
  • Control output: 1 PNP open collector 24 V; 1 output max: 100 mA or less; 2 output total: 100 mA or less (used stand-alone)/20 mA or less (multiple connections); residual voltage 1 V or less
  • External input: -
  • Multiple connections to Expansion units: Up to 16 units can be connected total (two output type is treated as two units)
  • Light source LED: Red, 4-element LED
  • APC: ON/OFF switchable (Factory setting: OFF)
  • Number of interference prevention units: 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA (When set to double, the number of interference-prevention units will be doubled.)
  • Rating - Power voltage: 12 - 24 V DC 10% ripple (P-P) 10% or less
  • Rating - Current Consumption: Normal: 950 mW or less (39 mA max. at 24 V, 52 mA max. at 12 V)*1 Eco on mode: 850 mW or less (35 mA max. at 24 V, 44 mA max. at 12 V)*1 Eco Full mode: 520 mW or less (21 mA max. at 24 V, 26 mA max. at 12 V)
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 20000 lux or less; Sunlight: 30000 lux or less
  • Environmental resistance - Operating ambient temperature: -20 to +55 C -4 to +131 F (no freezing)*2
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (no condensation)
  • Environmental resistance - Vibration resistance: 10 to 55 Hz Compound amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
  • Environmental resistance - Shock resistance: 500 m/s2 3 times for each of X,Y,Z axis
  • Case material: Both main unit and expansion unit housing material: Polycarbonate
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FS-N12P . Santa Clara Systems carries 2,096 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
