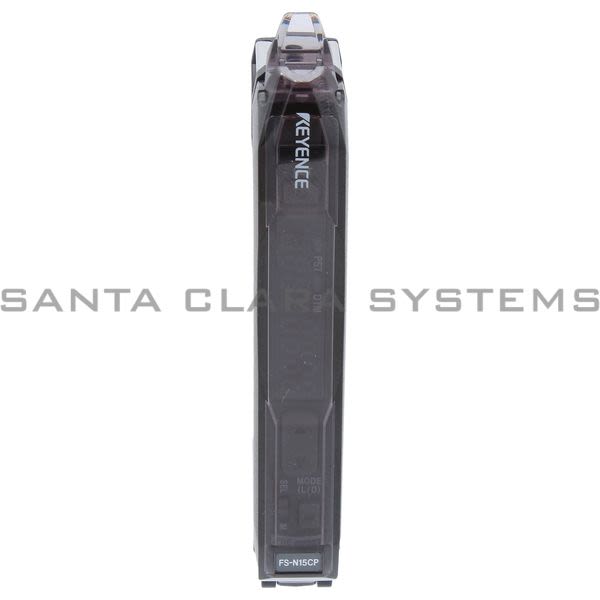

• Keyence FS-N15CP Sensor Product Image

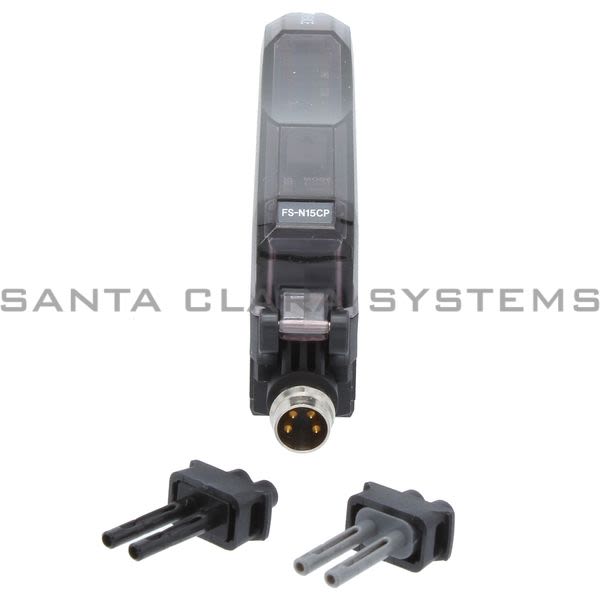

  • Keyence FS-N15CP Sensor Product Image

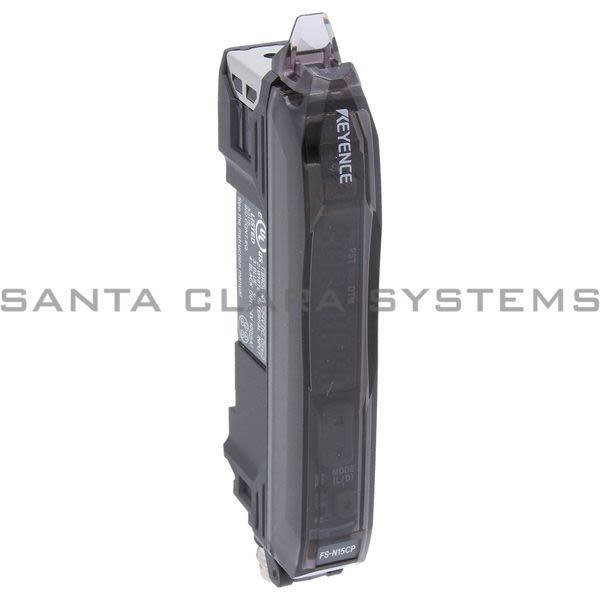

  • Keyence FS-N15CP Sensor Product Image

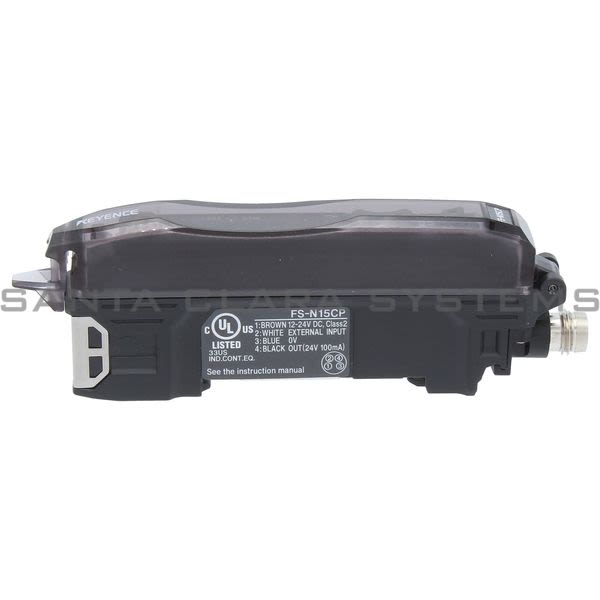

  • Keyence FS-N15CP Sensor Product Image
  • Keyence FS-N15CP Barcode

FS-N15CP

Product Summary:

  • Type: IP66 Fiberoptic Amplifier, 1 output type
  • Output: PNP
  • I/O format: M8 connector *1
  • Main unit/expansion unit: Main unit
  • Multiple connections to Expansion units: 0 units (expansion not possible)
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Sensor
  • Case size: H30.3mm 1.19" x W9.8mm 0.39" x L71.8mm 2.38"
  • Rating - Power voltage: 12 to 24 V DC 10% ripple (P-P) 10% or less
  • Rating - Current Consumption: Normal: 950 mW or less (39 mA max. at 24 V, 52 mA max. at 12 V)*2 Eco on mode: 850 mW or less (35 mA max. at 24 V, 44 mA max. at 12 V)*2 Eco Full mode: 520 mW or less (21 mA max. at 24 V, 26 mA max. at 12 V)
  • Environmental resistance - Enclosure rating: IP66 *3*4
  • Environmental resistance - Operating ambient luminance: Incandescent lamp: 20,000 lux or less, sunlight: 30,000 lux or less
  • Environmental resistance - Operating ambient temperature: -20C +55C -4F to 131F(no freezing)
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration resistance: 10 to 55 Hz, double amplitude 1.5 mm 0.06", 2 hours for each of X,Y,Z axis
  • Environmental resistance - Shock resistance: 500 m/s2 3 times for each of X,Y,Z axis
  • Material - Adapter: Glass-reinforced PBT
  • Weight: Approx 30 g
  • Footnotes: *1 Use a cable of 30 m 98.43' or less. *2 Increases 100 mW (4.0 mA) for High Speed mode *3 About the enclosure rating when a small-diameter fiber unit (the diameter of the cable is 1.3 or 1.0) is used.IP66/IP65 cannot be satisfied when the type whose diameter is 1.3 and terminal can be separated (FU-4F/ 66/91/93/43/63/63T etc.) is used.When any small-diameter fiber units except for the above are used, IP65 is applied. *4 In any of the following cases, the enclosure rating IP66/IP65 cannot be satisfied.? When the Fiber Unit and KEYENCE's M8 connector cable are not connected (Recommended conditions to tighten up the M8 connector: Tighten it by hand first.Then retighten it as much as 1/16-1/8 of a rotation with pliers.)? When the Fiber Unit and KEYENCE's M8 connector cable are not connected? When the dust cover of the Sensor Amplifier is open? When there is debris in the dust cover? When the waterproof adapter A/B are not used at the time of installation of a small-diameter fiber unit.
  • Type: IP66 Fiberoptic Amplifier, 1 output type
  • Output: PNP
  • I/O format: M8 connector *1
  • Main unit/expansion unit: Main unit
  • Control output: 1 output PNP open collector 24 V or less; maximum 100 mA or less, residual voltage 1 V or less
  • External input: 1 Input time 2 ms (ON)/20 ms (OFF) or more (25 ms or more (ON/OFF) when external calibration is selected.)
  • Response time: 50 ?s (HIGH SPEED)/250 ?s(FINE)/500 ?s(TURBO)/ 1 ms (SUPER) /4 ms (ULTRA)/16 ms (MEGA)
  • Multiple connections to Expansion units: 0 units (expansion not possible)
  • Output toggle: Light-ON/Dark-ON switchable
  • Light source LED: Red 4-element LED (wavelength 630 nm)
  • Timer function: Timer OFF/OFF delay/ON delay/One-shot
  • Protection circuit: Reverse polarity protection, Over-current protection, Surge absorber
  • Number of interference prevention units: 0 units (expansion not possible)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FS-N15CP . Santa Clara Systems carries 1,382 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
