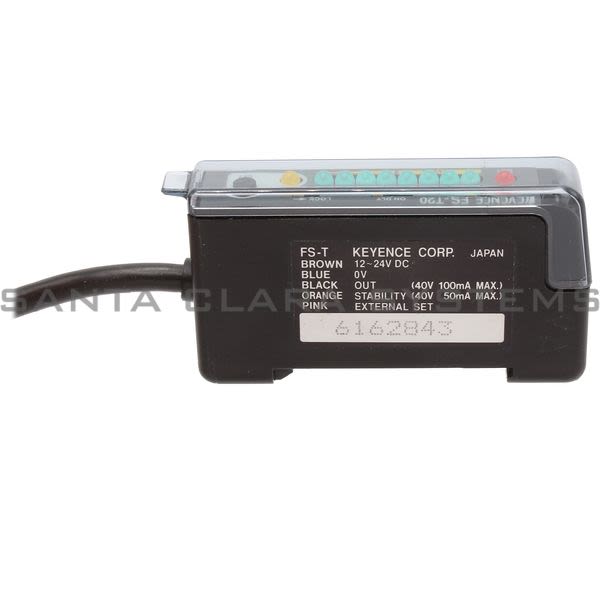

• Keyence FS-T20 Sensor Amplifier Product Image

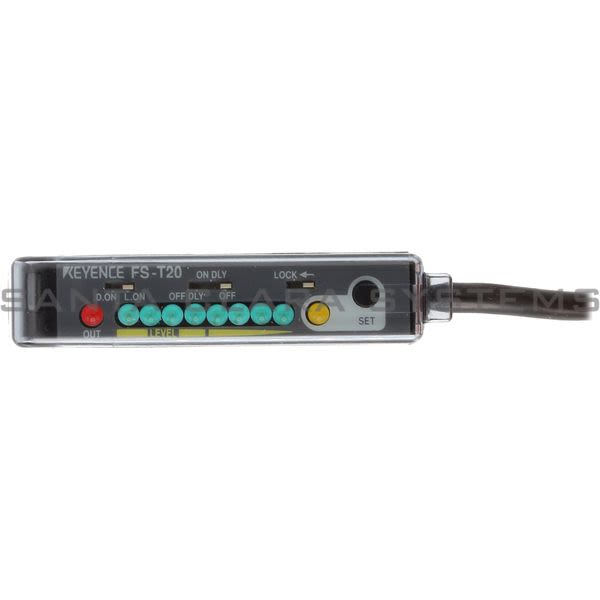

  • Keyence FS-T20 Sensor Amplifier Product Image

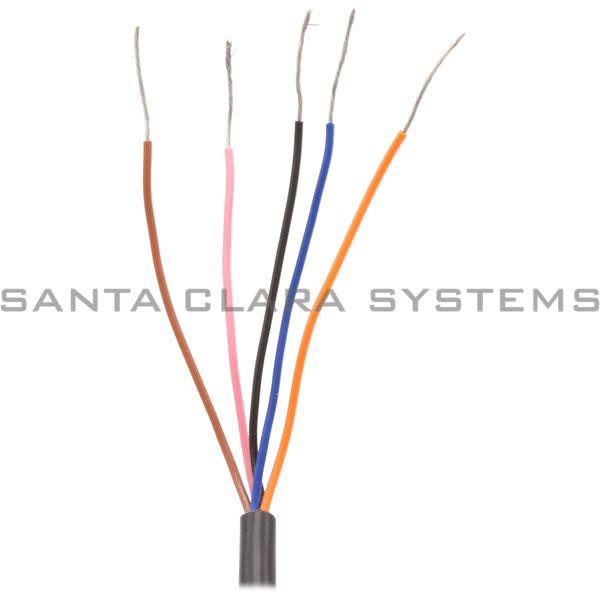

  • Keyence FS-T20 Sensor Amplifier Product Image

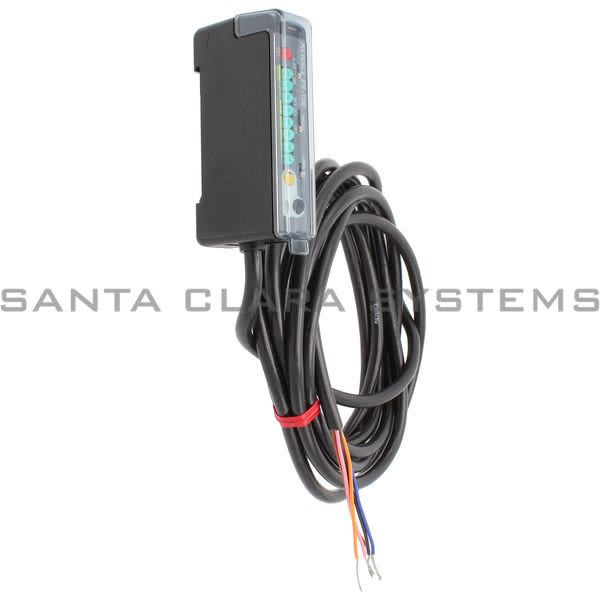

  • Keyence FS-T20 Sensor Amplifier Product Image
  • Keyence FS-T20 Barcode

FS-T20

Product Summary:

  • Light source: Red LED
  • Response time: 500 us
  • Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
  • Output: NPN output
  • Rating - Current consumption: 50 mA or less
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: Sensor Amplifier
  • Rating - Power voltage: 12 to 24 V DC +10%, ripple 10% max., Class 2
  • Rating - Current consumption: 50 mA or less
  • Enviromental resistance - Operating ambientluminance: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
  • Enviromental resistance - Operating ambient temperture: -10 to +55*C (no freezing)
  • Enviromental resistance - Operating ambient humidity: 35 to 85% RH (no condensation)
  • Enviromental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm, 2 hours each in the X, Y, and Z axis
  • Enviromental resistance - Shock resistance: 500 m/s in X, Y, and Z directions, 3 times respectively
  • Material: Polycarbonate
  • Weight: Approx 75 g
  • Light source: Red LED
  • Response time: 500 us
  • Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
  • Indicator lamp: Output: red LED, calibration: yellow LED, recieved light intensity and sensitivity allowance: green LED
  • Timer function: ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable)
  • External tuning input signal: No-voltage input (with contact, without contacts)
  • Output: NPN output
  • Control output: NPN open-collector 100 mA max. (40 V max.), Residual voltage 1 V max.
  • Stability output: NPN open-collector 50 mA max. (40 V max.), Residual voltage 1 V max.
  • Protection circuit: Reversed polarity protection, Overcurrent, Surge absorber
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FS-T20 . Santa Clara Systems carries 1,405 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
