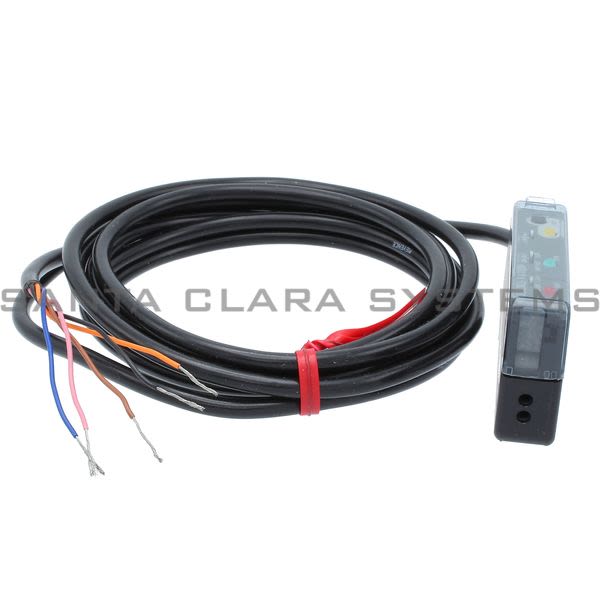

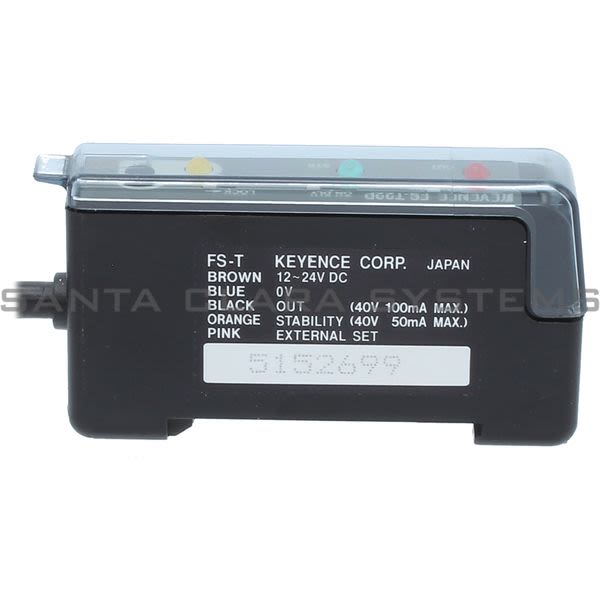

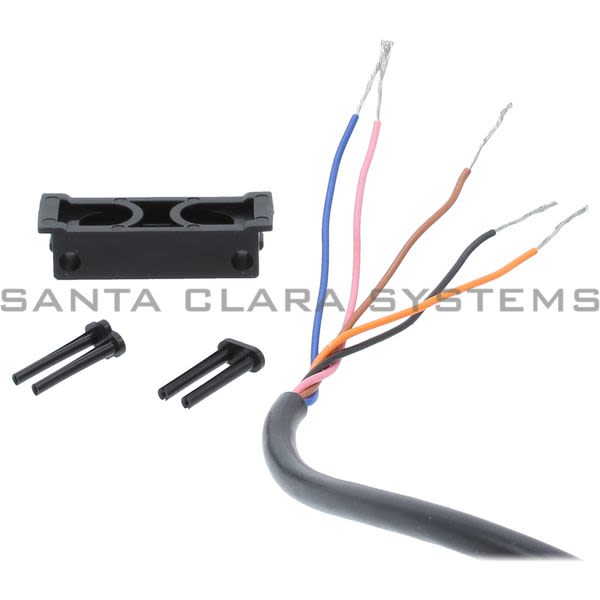

FS-T22P

Keyence - Amplifier

Current response time:

19 Minutes 32 Seconds

Description: Amplifier
Weight: Approx 75 g
Footnotes: *1 This indicates stable operation and that sensitivity settings cannot be made.
Type: Auto
Response time: 500 ?s
Output: PNP output
Light source: Red LED
Material: Polycarbonate
Sensitivity adjustment: Button
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp: Output: red LED, calibration: yellow LED, received light intensity and sensitivity allowance: green LED*1
Timer function: ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable)

External tuning input signal: Input time: 40 ms or more
Control output: PNP open-collector 100 mA max. (30 V max.), Residual voltage 1 V max.
Stability output: PNP open-collector 50 mA max. (30 V max.), Residual voltage 1 V max.
Protection circuit: Reversed polarity protection, Overcurrent protection, Surge absorber
Rating - Power voltage: 12 to 24 VDC 10%, Ripple (P-P): 10% max.
Rating - Current consumption.: 50 mA
Environmental resistance - Operating ambient luminance: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
Environmental resistance - Operating temperature range: -10 to 55C 14 to 131F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y and Z axis
Environmental resistance - Shock resistance: 500 m/s2 in X, Y, and Z directions, 3 times respectively

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FS-T22P . Santa Clara Systems carries 2,098 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
