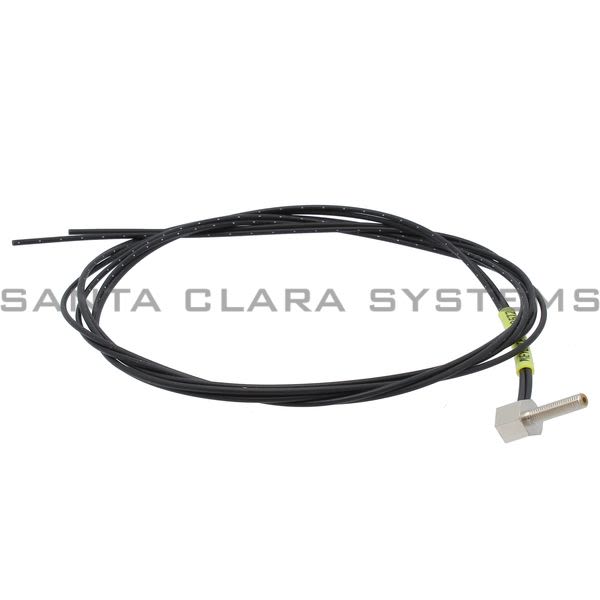

• Keyence FU-35TZ Fiber Optic Sensor Product Image

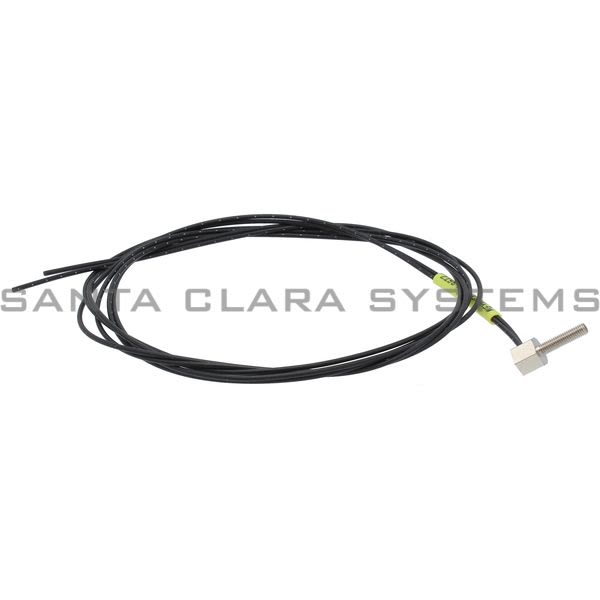

  • Keyence FU-35TZ Fiber Optic Sensor Product Image

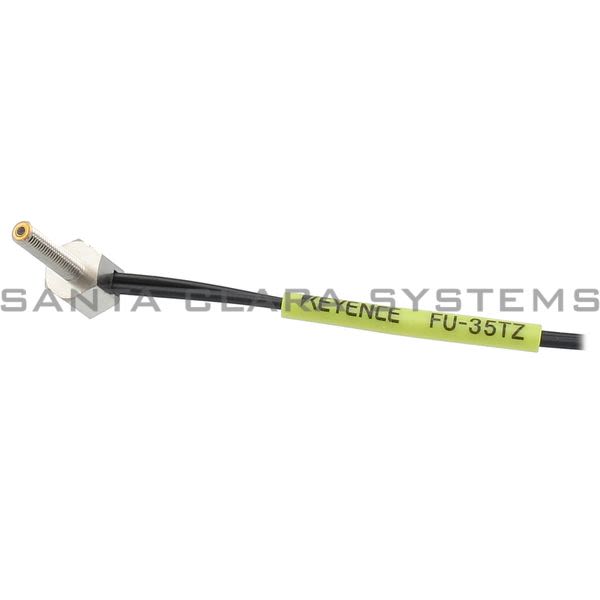

  • Keyence FU-35TZ Fiber Optic Sensor Product Image

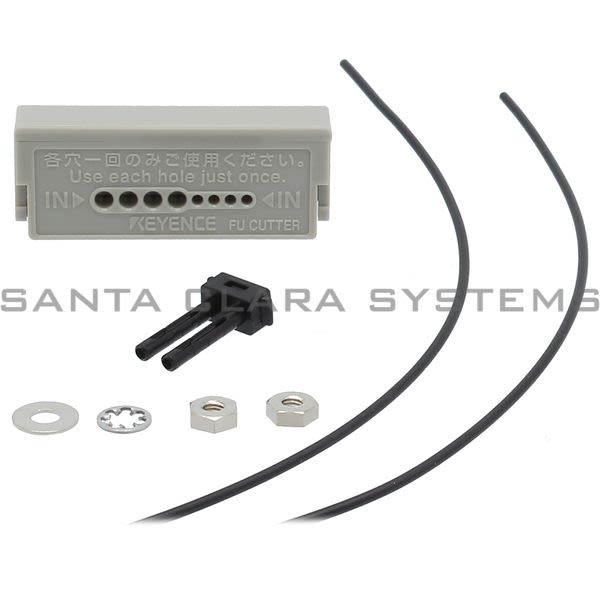

  • Keyence FU-35TZ Fiber Optic Sensor Product Image
  • Keyence FU-35TZ Barcode

FU-35TZ

Product Summary:

  • Weight: Approx 7 g
  • Ambient temperature: -40 to +50C -40 to 122F
  • Size: M3
  • Detection arrangement: Coaxial
  • Fibre unit length: 1 m39.37" free-cut
Get a Quote

Current response time:

8 Minutes 6 Seconds
  • Description: Fiber Optic Sensor
  • Weight: Approx 7 g
  • Footnotes: *1 The detecting distance is a value for white mat paper (the standard detection object) detections. *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
  • Ambient temperature: -40 to +50C -40 to 122F
  • Size: M3
  • Detection arrangement: Coaxial
  • Fibre unit length: 1 m39.37" free-cut
  • Fibre unit diameter: 1.32
  • Shape: Threaded
  • Minimum bend radius: R2 mm0.079" Tough-Flex
  • Detection distance - MEGA/FINE - MEGA: 400 mm15.748"*1
  • Detection distance - MEGA/FINE - FINE: 70 mm2.756"*1
  • Detection distance - Other power modes - ULTRA: 270 mm10.63"*1
  • Detection distance - Other power modes - SUPER: 170 mm6.693"*1
  • Detection distance - Other power modes - TURBO: 110 mm4.331"*1
  • Detection distance - Other power modes - HSP: 32 mm1.26"*1
  • Minimum detectable object: Gold wire with a diameter of 0.005 mm0.0002" *2
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FU-35TZ . Santa Clara Systems carries 1,527 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
