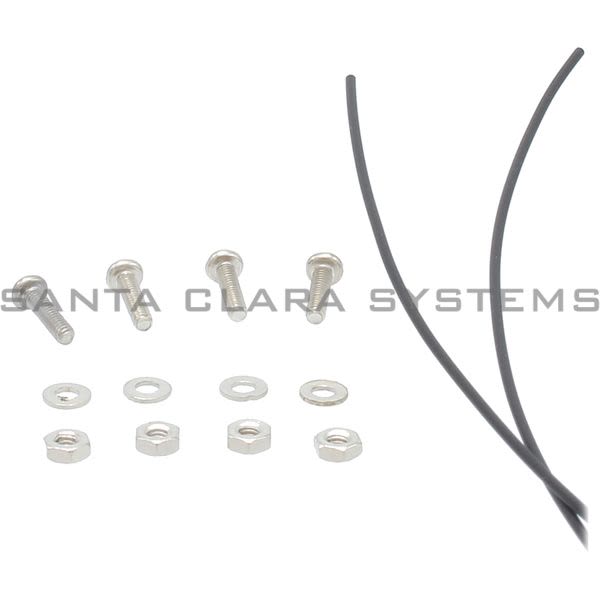

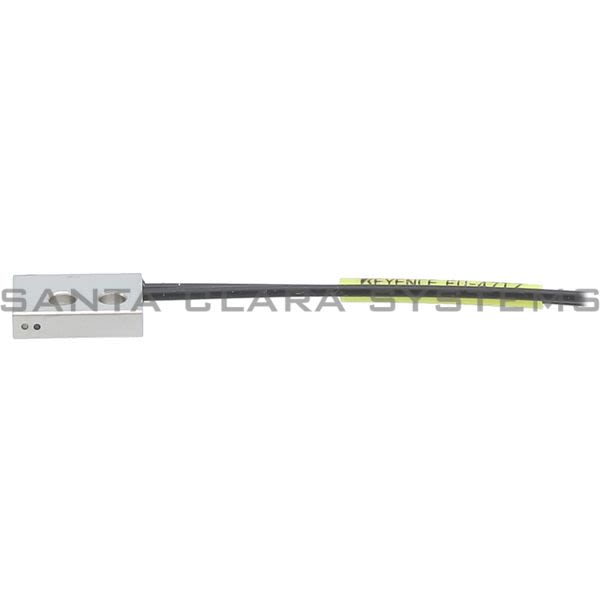

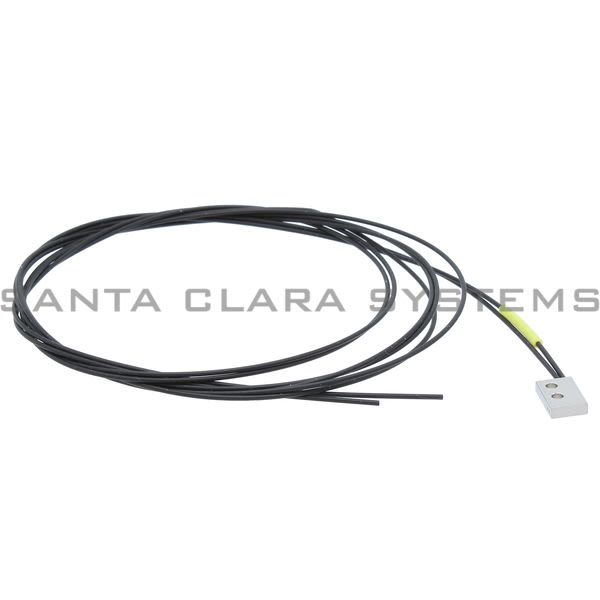

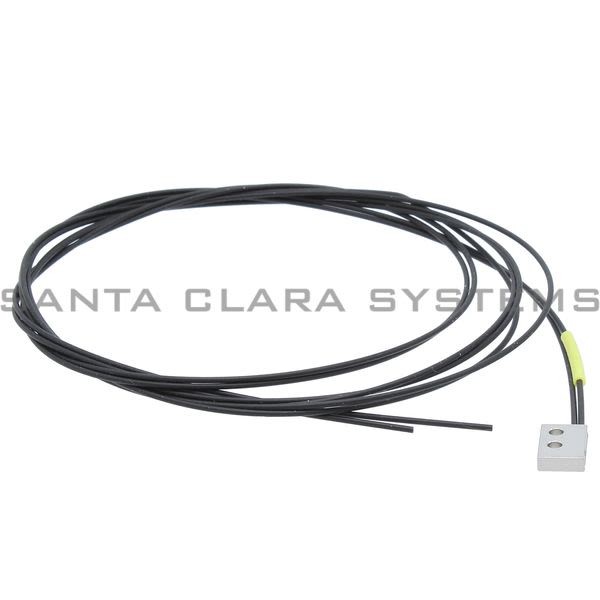

• Keyence FU-47TZ Fiber Sensor Product Image
  • Keyence FU-47TZ Fiber Sensor Product Image
  • Keyence FU-47TZ Fiber Sensor Product Image
  • Keyence FU-47TZ Fiber Sensor Product Image
  • Keyence FU-47TZ Barcode

FU-47TZ

Product Summary:

  • Beam emitting direction: Side
  • Fibre unit length: 1 m39.37" free-cut
  • Fibre unit diameter: 1.02
  • Ambient temperature: -40 to +50C -40 to 122F
  • Minimum bend radius: R2 mm0.079" Tough-Flex
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Fiber Sensor
  • Detection distance - Other power modes - SUPER: 1 to 81 mm0.039" to 3.189"*1
  • Detection distance - Other power modes - TURBO: 1 to 60 mm0.039" to 2.362"*1
  • Detection distance - Other power modes - HSP: 1 to 18 mm0.039" to 0.709"*1
  • Minimum detectable object: Gold wire with a diameter of 0.005 mm0.0002" *2
  • Weight: Approx 4 g
  • Footnotes: *1 The detecting distance is a value for white mat paper (the standard detection object) detections. *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
  • Beam emitting direction: Side
  • Fibre unit length: 1 m39.37" free-cut
  • Fibre unit diameter: 1.02
  • Ambient temperature: -40 to +50C -40 to 122F
  • Minimum bend radius: R2 mm0.079" Tough-Flex
  • Detection distance - MEGA/FINE - MEGA: 1 to 160 mm0.039" to 6.299"*1
  • Detection distance - MEGA/FINE - FINE: 1 to 36 mm0.039" to 1.417"*1
  • Detection distance - Other power modes - ULTRA: 1 to 120 mm0.039" to 4.724"*1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FU-47TZ . Santa Clara Systems carries 1,382 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
