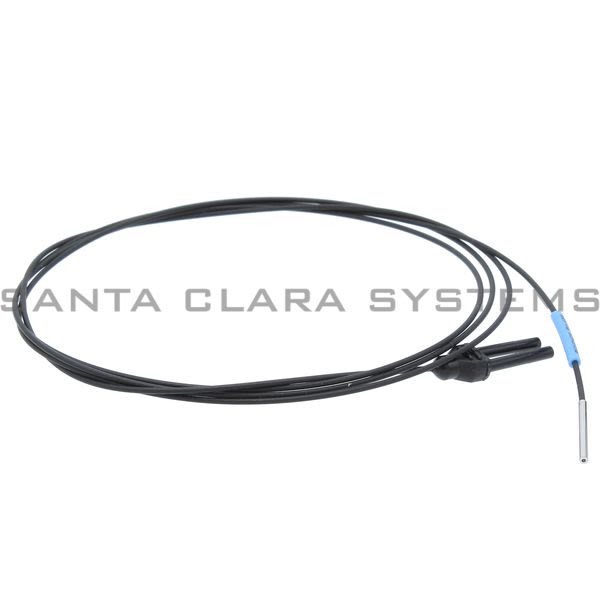

• Keyence FU-49X Fiber Sensor Product Image

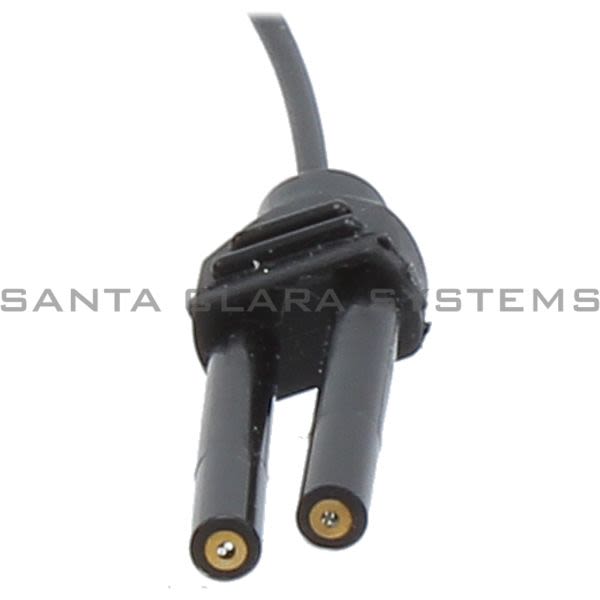

  • Keyence FU-49X Fiber Sensor Product Image

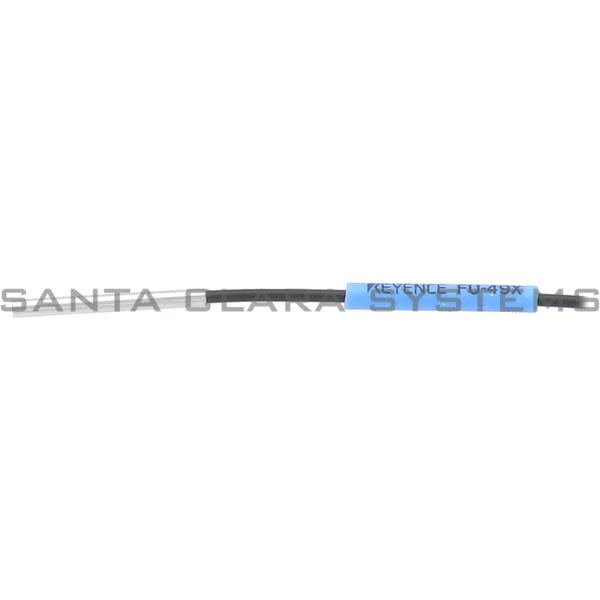

  • Keyence FU-49X Fiber Sensor Product Image

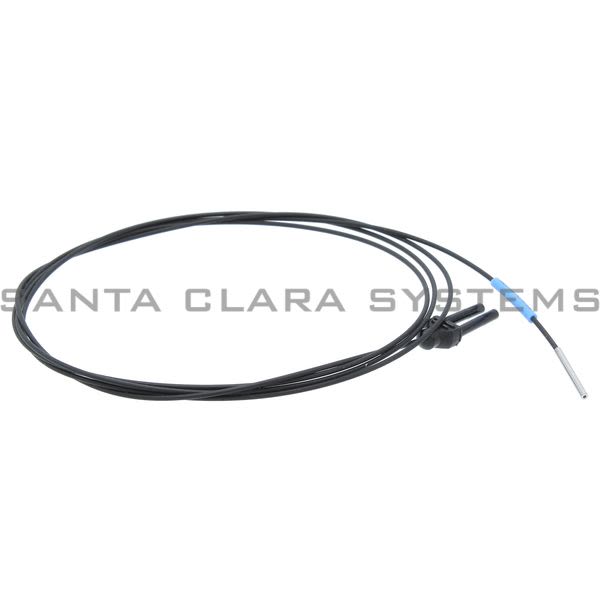

  • Keyence FU-49X Fiber Sensor Product Image
  • Keyence FU-49X Barcode

FU-49X

Product Summary:

  • Size: 1.5 mm0.059"
  • Fibre unit length: 1 m39.37" cannot be cut
  • Ambient temperature: -40 to +70C -40 to 158F
  • Minimum bend radius: R4 mm0.157" high-flex
  • Detection distance - MEGA/FINE - MEGA: 150 mm5.906"*1
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Fiber Sensor
  • Detection distance - Other power modes - SUPER: 80 mm3.15"*1
  • Detection distance - Other power modes - TURBO: 54 mm2.126"*1
  • Detection distance - Other power modes - HSP: 22 mm0.866"*1
  • Minimum detectable object: Gold wire with a diameter of 0.005 mm0.0002" *2
  • Weight: Approx 3 g
  • Footnotes: *1 The detecting distance is a value for white mat paper (the standard detection object) detections. *2 The minimum detectable object is the value when the detecting distance and sensitivity have been set to their optimal state.
  • Size: 1.5 mm0.059"
  • Fibre unit length: 1 m39.37" cannot be cut
  • Ambient temperature: -40 to +70C -40 to 158F
  • Minimum bend radius: R4 mm0.157" high-flex
  • Detection distance - MEGA/FINE - MEGA: 150 mm5.906"*1
  • Detection distance - MEGA/FINE - FINE: 32 mm1.26"*1
  • Detection distance - Other power modes - ULTRA: 100 mm3.937"*1
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FU-49X . Santa Clara Systems carries 1,405 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
