FW-H02

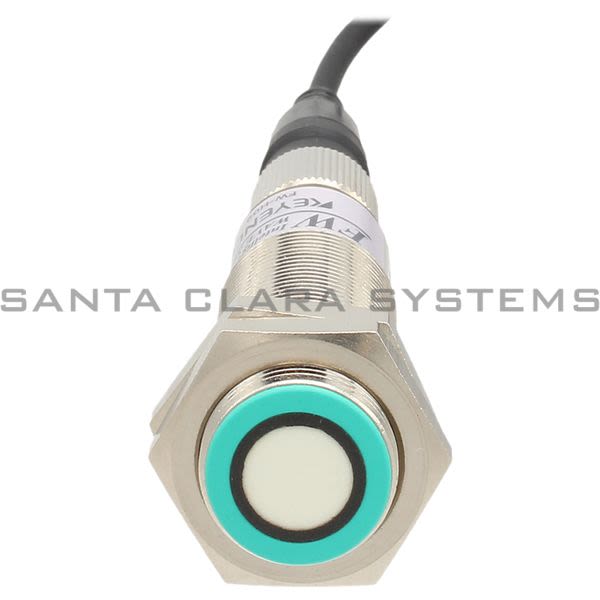

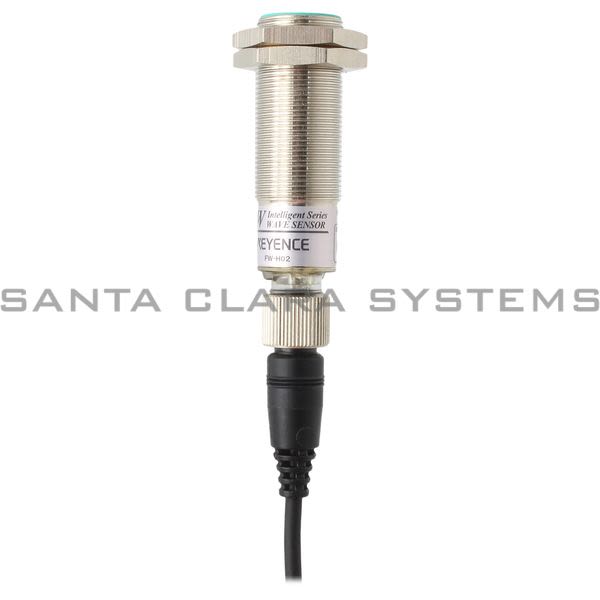

Keyence - Ultrasonic Sensor

Current response time:

By 5AM PT on Monday

Emergency?

Description: Ultrasonic Sensor
Weight: Approx. 89 g
Footnotes: *1 Less stable zones of approx. 2% of F.S. exist at both ends of the detecting range. *2 The variation of sonic velocity in air generates errors in the negative direction at 25C at 77F and above, or in the positive direction at 25C at 77F and below. *3 The errors for the indicated value at 25C at 77F.
Type: Standard type
Material: Brass-nickel plating, PBT, Polyurethane, Polyamide resin

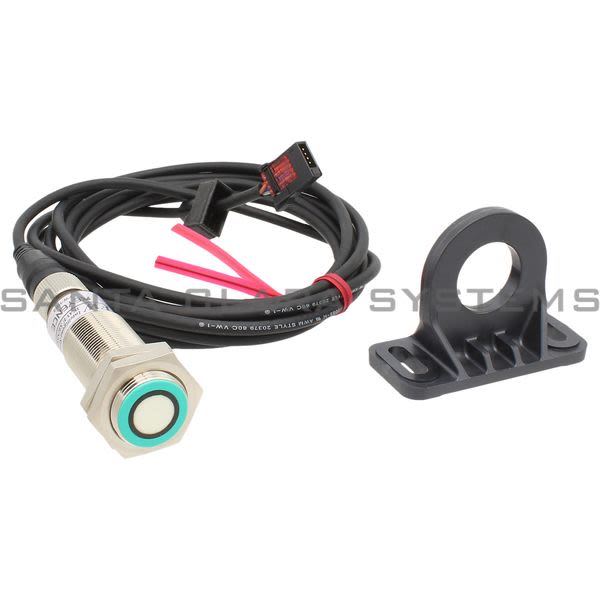

Accessories: M18 nut: 2, Head cable: 2 m 6.6', Standard Mounting Bracket (FW-B01)
Detecting area: 50 to 200 mm 2.0" to 7.9"*1
Response speed: 250 ms

Temperature characteristics: 0.25% of F.S./C *2*3
Indicator lamp: Operation indicator (orange) x1 (Turns on when the power is turned on.)
Dimensions: M18 x P1, Length= 63.5 mm 2.50"
Environmental resistance - Enclosure rating: IP67
Environmental resistance - Operating temperature range: -25 to +70C -13 to 158F, No freezing
Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y, and Z axis

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FW-H02 . Santa Clara Systems carries 2,096 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
