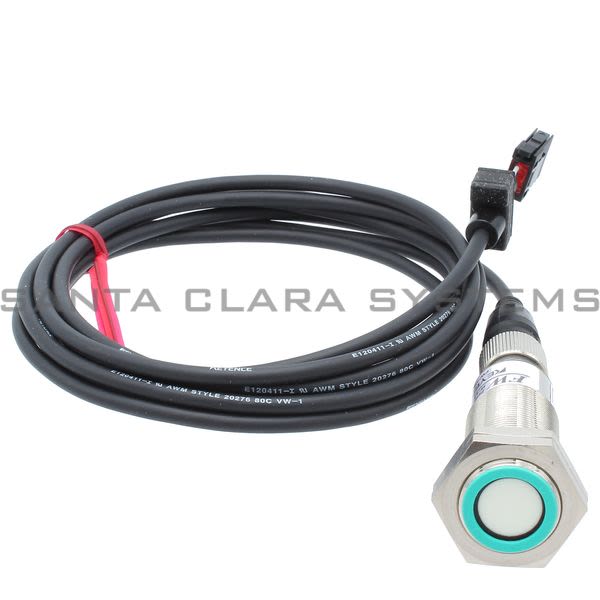

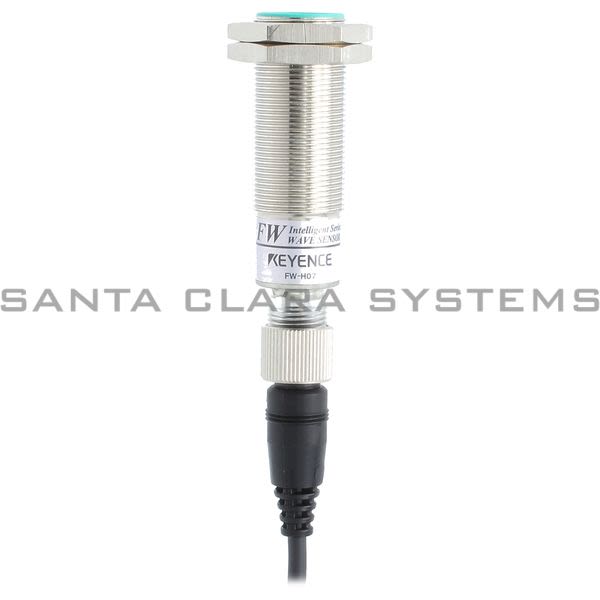

• Keyence FW-H07 Sensor Head Product Image
  • Keyence FW-H07 Sensor Head Product Image
  • Keyence FW-H07 Sensor Head Product Image
  • Keyence FW-H07 Sensor Head Product Image
  • Keyence FW-H07 Barcode

FW-H07

Product Summary:

  • Type: Standard type
  • Detecting area: 150 to 700 mm 5.9" to 27.6"*1
  • Response speed: 300 ms
  • Temperature characteristics: 0.25% of F.S./C *2*3
  • Dimensions: M18 x P1, Length= 63.5 mm 2.50"
Let Us Find It

Current response time:

By 5AM PT on Monday
  • Description: Sensor Head
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y, and Z axis
  • Material: Brass-nickel plating, PBT, Polyurethane, Polyamide resin

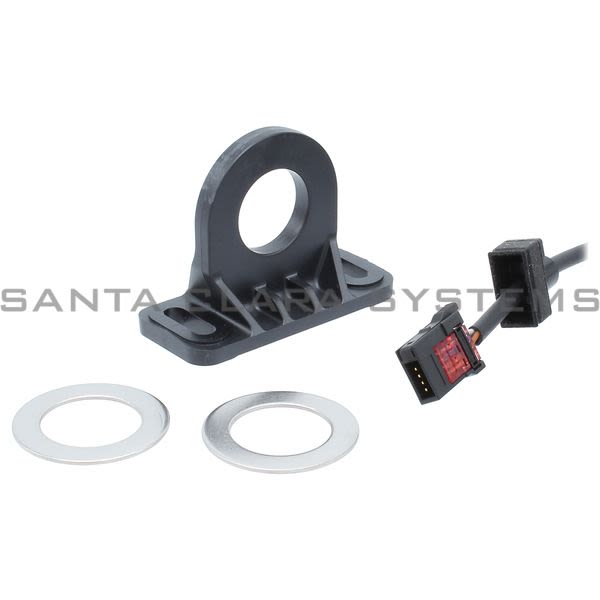

  • Accessories: M18 nut: 2, Head cable: 2 m 6.6', Standard Mounting Bracket (FW-B01)
  • Weight: Approx. 89 g
  • Footnotes: *1 Less stable zones of approx. 2% of F.S. exist at both ends of the detecting range. *2 The variation of sonic velocity in air generates errors in the negative direction at 25C at 77F and above, or in the positive direction at 25C at 77F and below. *3 The errors for the indicated value at 25C at 77F.
  • Type: Standard type
  • Detecting area: 150 to 700 mm 5.9" to 27.6"*1
  • Response speed: 300 ms
  • Temperature characteristics: 0.25% of F.S./C *2*3
  • Indicator lamp: Operation indicator (orange) x1 (Turns on when the power is turned on.)
  • Dimensions: M18 x P1, Length= 63.5 mm 2.50"
  • Environmental resistance - Enclosure rating: IP67
  • Environmental resistance - Operating temperature range: -25 to +70C -13 to 158F, No freezing
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FW-H07 . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
