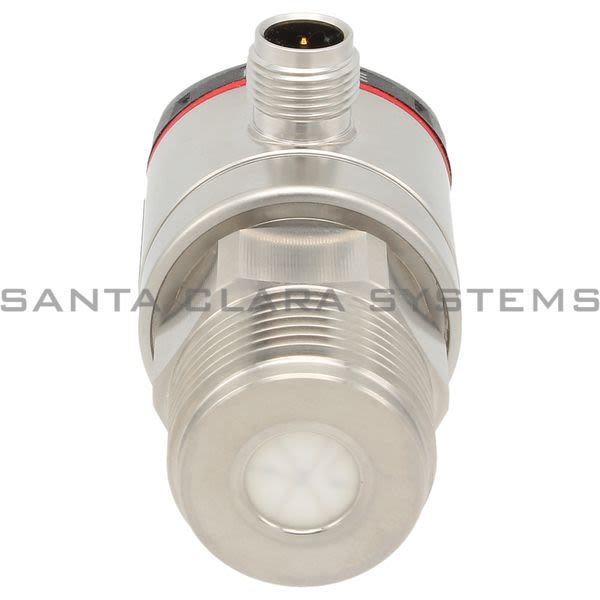

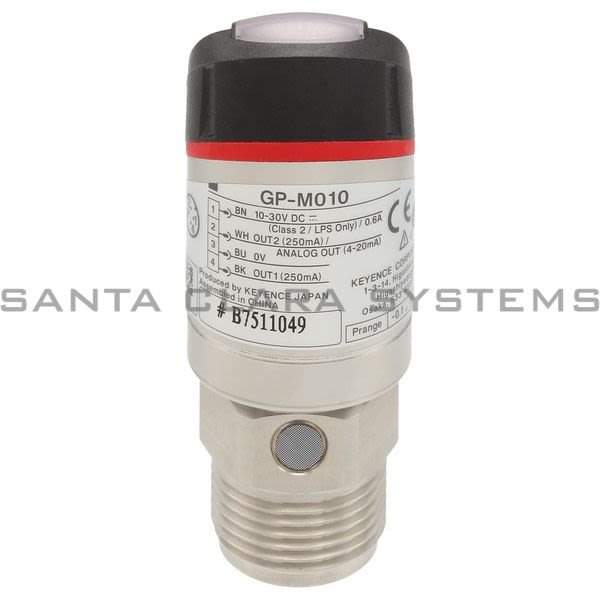

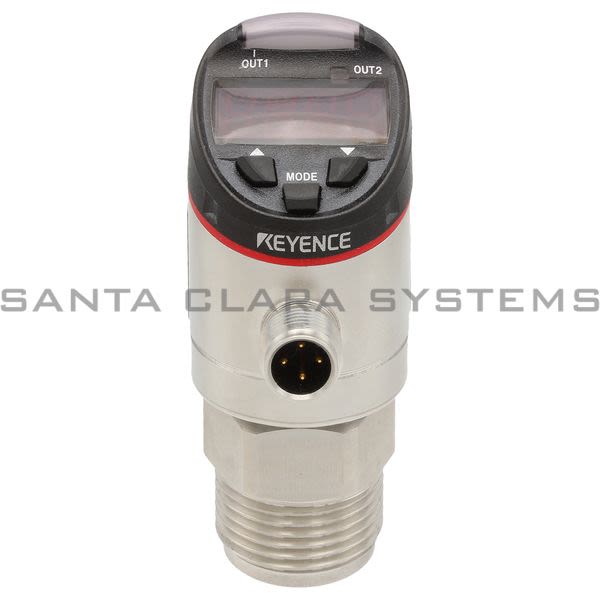

GP-M010

Keyence - Main Unit Positive-Pressure Type

Current response time:

By 5AM PT on Monday

Emergency?

Description: Main Unit Positive-Pressure Type
Weight: App. 150 g
Footnotes: *1 This is the value when considering linearity + hysteresis + repeatability in a stable environment of 23C 73F. *2 The repeatability, based on consistent conditions, is the variation in the value that will be displayed. *3 When the temperature of the piping exceeds 80C 176F, do not connect the cable. *4 Consumption current including output is 0.6 A and under. *5 The maximum load resistance R will be the values below in response to the electric voltage E. When 10-23V: R = ?38 x (E-10) + 128? - When 23-30V: R = 622 ?
Rated pressure: -14.5 to +145.0 PSI (-0.1 to +1 MPa)
Possible display range: -30.5 to +161.0 PSI (-0.210 to +1.110 MPa)
Zero-cut pressure value: 0.5% of F.S.
Allowable pressure: 580 PSI (4 MPa)
Burst pressure: 2175 PSI (15 MPa)
Display resolution - kPa: 1
Display resolution - MPa: 0.001
Display resolution - PSI: 0.1
Display resolution - bar: 0.01
Display resolution - kgf/cm2: 0.01
Fluid type: Gas or liquid that will not corrode the liquid contact part
Type of pressure: Gage pressure
Precision: 1.0% of F.S. or less*1
Repeatability: 0.3% of F.S. or less*2
Temperature characteristics: 0.6% of F.S./10C 50F
Connection port: G3/4 (Changes to the R male 1/8, R male 1/4, R male 3/8, G female 1/4, NPT male 1/8, and NPT male 1/4 option adapters are available.)
Box rotation angle: Maximum 330

Medium temperature: -20 to +100C -4F to +212F (no freezing/condensation)*3
Power voltage: 10-30 VDC, Ripple (P-P): 10% max, Class 2 or LPS
Current consumption: 50 mA or less (when 24 V: 32 mA or less, when 12 V: 48 mA or less. Not including load)*4
Display method: 4 column, digital LED, red/Vertical inversion display possible
Operation display light: Operation indicator (output 1) (orange), Operation indicator (output 2) (orange)
Hysteresis: During hysteresis mode: variable (Difference between switch-on point and switch-off point is hysteresis) During window mode: fixed (0.5% of F.S.)
Response - Control output: Selectable from 3 to 5000 ms
Response - Analog output: As above + 2 ms (90% response)
Output - Output 1 control output: NPN/PNP open collector (Selectable), Max. 250 mA (30 V max) Main unit residual voltage 1 V max, N.O./N.C. selectable
Output - Output 2 replacement type - Control output: NPN/PNP open collector (Selectable), Max. 250 mA (30 V max) Main unit residual voltage 1 V max, N.O./N.C. selectable
Output - Output 2 replacement type - Analog output: 4-20 mA, maximum load resistance 500 - (When the electric voltage is more than 20 V)*5
Environmental resistance - Ambient temperature: -20 to +80C -4F to +176F (no freezing/condensation)
Environmental resistance - Relative humidity: 35 to 85% RH (no condensation)
Environmental resistance - Vibration: IEC60068-2-6 20 G (10 to 2000 Hz, 2 hours each in the X, Y, and Z axis)
Environmental resistance - Shock: IEC60068-2-27 50 G (11 ms, 3 times for each of X, Y and Z axis)
Environmental resistance - Enclosure rating: IP67
Material properties - Wetted part: Pressure port: SUSXM7, Diaphragm pressure port: Al2O3 (Alumina), O ring: FKM
Material properties - Other parts: Housing metal portion: SUS304, SUS303, Housing plastic portion: PPSU, Air hole: PTFE, nickel-plated brass.
Applicable cable: M12 connector 4 pin
