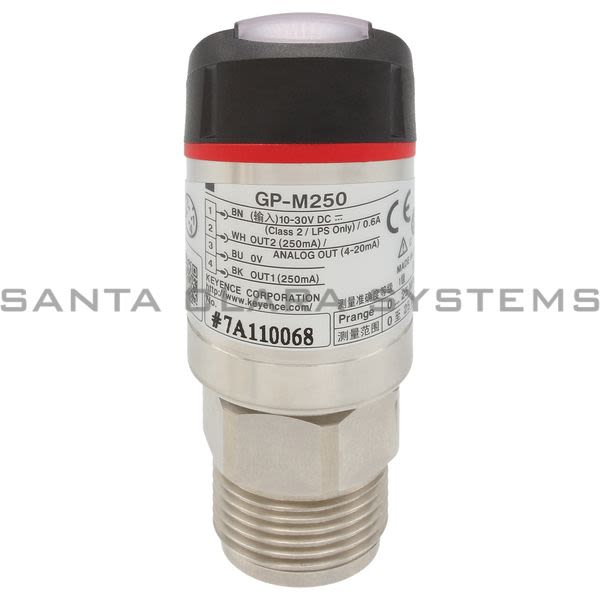

• Keyence GP-M250 Pressure Sensor Product Image

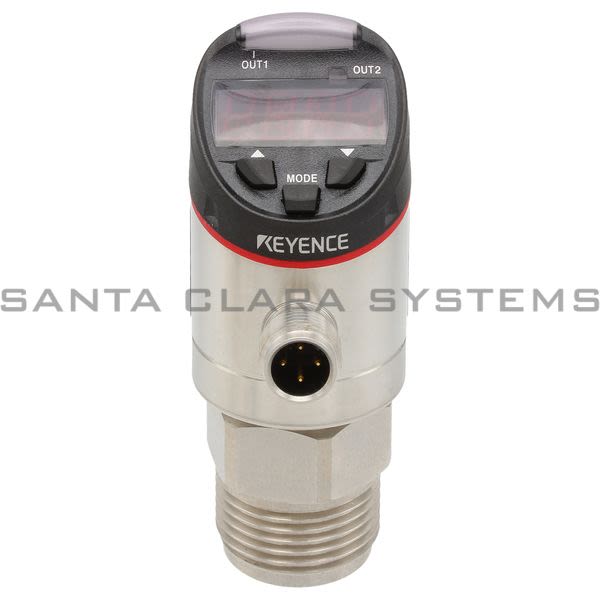

  • Keyence GP-M250 Pressure Sensor Product Image

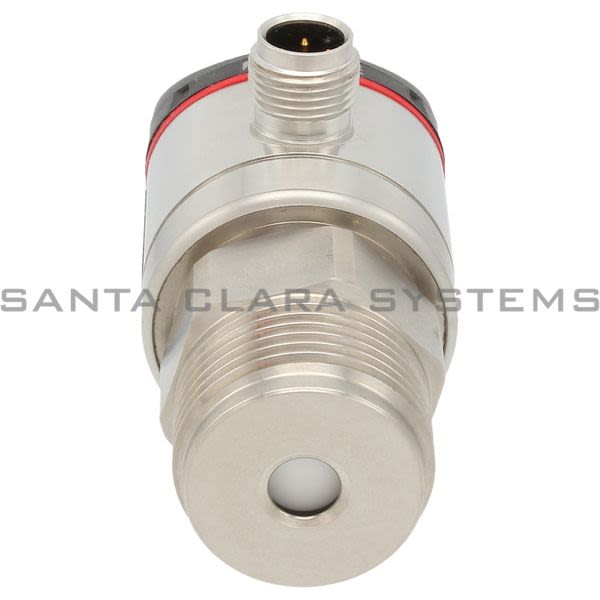

  • Keyence GP-M250 Pressure Sensor Product Image
  • Keyence GP-M250 Pressure Sensor Product Image
  • Keyence GP-M250 Barcode

GP-M250

Product Summary:

  • Rated pressure: 0 to +3626 PSI (0 to +25 MPa)
  • Possible display range: -363 to +3989 PSI (-2.50 to +27.50 MPa)
  • Zero-cut pressure value: 0.5% of F.S.
  • Allowable pressure: 7252 PSI (50 MPa)
  • Burst pressure: 14504 PSI (100 MPa)
Get a Quote
           or
  • Description: Pressure Sensor
  • Display method: 4 column, digital LED, red/Vertical inversion display possible
  • Operation display light: Operation indicator (output 1) (orange), Operation indicator (output 2) (orange)
  • Hysteresis: During hysteresis mode: variable (Difference between switch-on point and switch-off point is hysteresis) During window mode: fixed (0.5% of F.S.)
  • Response - Control output: Selectable from 3 to 5000 ms
  • Response - Analog output: As above + 2 ms (90% response)
  • Output - Output 1 control output: NPN/PNP open collector (Selectable), Max. 250 mA (30 V max) Main unit residual voltage 1 V max, N.O./N.C. selectable
  • Output - Output 2 replacement type - Control output: NPN/PNP open collector (Selectable), Max. 250 mA (30 V max) Main unit residual voltage 1 V max, N.O./N.C. selectable
  • Output - Output 2 replacement type - Analog output: 4-20 mA, maximum load resistance 500 - (When the electric voltage is more than 20 V)*5
  • Environmental resistance - Ambient temperature: -20 to +80C -4F to +176F (no freezing/condensation)
  • Environmental resistance - Relative humidity: 35 to 85% RH (no condensation)
  • Environmental resistance - Vibration: IEC60068-2-6 20 G (10 to 2000 Hz, 2 hours each in the X, Y, and Z axis)
  • Environmental resistance - Shock: IEC60068-2-27 50 G (11 ms, 3 times for each of X, Y and Z axis)
  • Environmental resistance - Enclosure rating: IP67
  • Material properties - Wetted part: Pressure port: SUSXM7, Diaphragm pressure port: Al2O3 (Alumina), O ring: FKM
  • Material properties - Other parts: Housing metal portion: SUS304, SUS303, Housing plastic portion: PPSU
  • Applicable cable: M12 connector 4 pin
  • Weight: App. 150 g
  • Footnotes: *1 This is the value when considering linearity + hysteresis + repeatability in a stable environment of 23C 73F. *2 The repeatability, based on consistent conditions, is the variation in the value that will be displayed. *3 When the temperature of the piping exceeds 80C 176F, do not connect the cable. *4 Consumption current including output is 0.6 A and under. *5 The maximum load resistance R will be the values below in response to the electric voltage E. When 10-23V: R = ?38 x (E-10) + 128? - When 23-30V: R = 622 ?
  • Rated pressure: 0 to +3626 PSI (0 to +25 MPa)
  • Possible display range: -363 to +3989 PSI (-2.50 to +27.50 MPa)
  • Zero-cut pressure value: 0.5% of F.S.
  • Allowable pressure: 7252 PSI (50 MPa)
  • Burst pressure: 14504 PSI (100 MPa)
  • Display resolution - kPa: None
  • Display resolution - MPa: 0.01
  • Display resolution - PSI: 1
  • Display resolution - bar: 0.1
  • Display resolution - kgf/cm2: 0.1
  • Fluid type: Liquid that will not corrode the liquid contact part
  • Type of pressure: Gage pressure
  • Precision: 1.0% of F.S. or less*1
  • Repeatability: 0.3% of F.S. or less*2
  • Temperature characteristics: 0.6% of F.S./10C 50F
  • Connection port: G3/4 (Changes to the R male 1/8, R male 1/4, R male 3/8, G female 1/4, NPT male 1/8, and NPT male 1/4 option adapters are available.)
  • Box rotation angle: Maximum 330
  • Medium temperature: -20 to +100C -4F to +212F (no freezing/condensation)*3
  • Power voltage: 10-30 VDC, Ripple (P-P): 10% max, Class 2 or LPS
  • Current consumption: 50 mA or less (when 24 V: 32 mA or less, when 12 V: 48 mA or less. Not including load)*4
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GP-M250 . Santa Clara Systems carries 1,357 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
