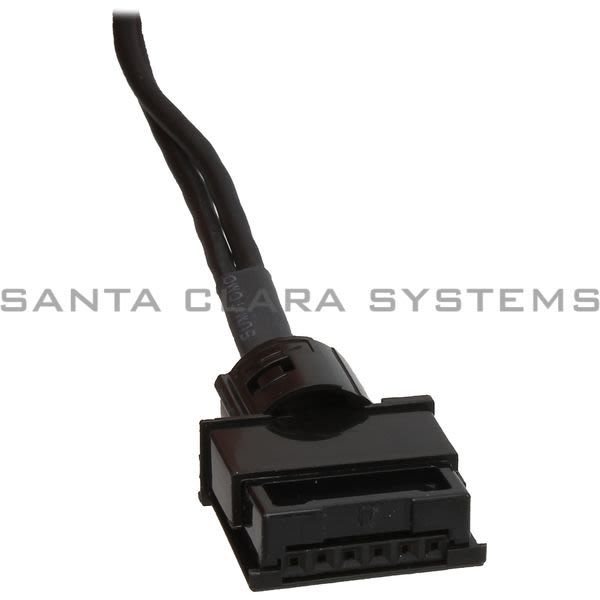

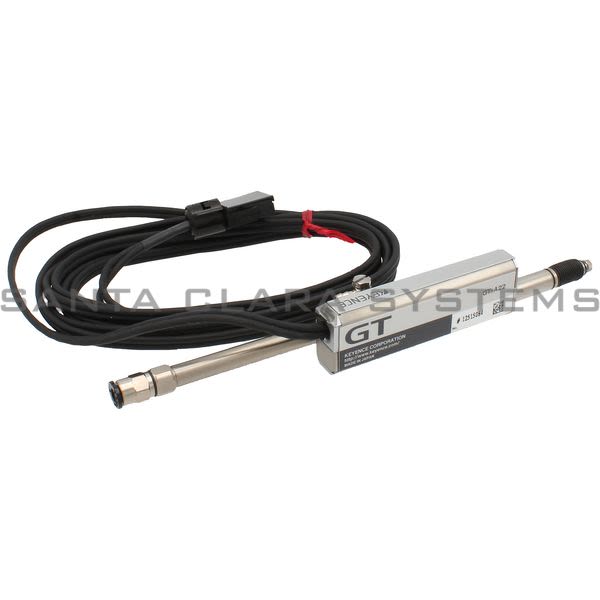

• Keyence GT-A22 Digital Contact Sensor Product Image
  • Keyence GT-A22 Digital Contact Sensor Product Image
  • Keyence GT-A22 Digital Contact Sensor Product Image
  • Keyence GT-A22 Digital Contact Sensor Product Image
  • Keyence GT-A22 Barcode

GT-A22

Product Summary:

  • Measuring range: 22 mm 0.87"
  • Repeatability: 8 m 0.31 Mil*1
  • Measurement force - Downward mounting: 1.5 N*2
  • Measurement force - Side mounting: 1.4 N*2
  • Measurement force - Upward mounting: 1.3 N*2
Get a Quote

Current response time:

11 Minutes 3 Seconds
  • Description: Digital Contact Sensor
  • Environmental resistance - Operating ambient humidity: 35 to 85%RH
  • Applied pressure range: 0.35 to 0.5 MPa
  • Pressure resistance: 1.0 MPa
  • Material: Main body case: TYPE430 Stainless steel,Cylinder: Aluminum alloy,Air joint resin part: Polyacetal,Air joint metallic part: Brass nickel plating,Indicator: Polyarylate, Dust boot: NBR,Contact: TYPE304 Stainless steel, Cable: PVC
  • Weight: Approx180 g (With 2-m 6.6' connector cable)
  • Footnotes: *1 At ambient temperature of 23C 73.4F. Read value in the central measuring position when 100 ms is set as the response time. *2 The value near the center. *3 To prevent entry of foreign objects from the exhaust joint, connect the air tube to the exhaust joint.
  • Measuring range: 22 mm 0.87"
  • Repeatability: 8 m 0.31 Mil*1
  • Measurement force - Downward mounting: 1.5 N*2
  • Measurement force - Side mounting: 1.4 N*2
  • Measurement force - Upward mounting: 1.3 N*2
  • Number of sliding cycles: 3000000 cycles
  • Environmental resistance - Enclosure rating: IP67 *3
  • Environmental resistance - Operating temperature range: 0 to +55C 32 to 131F
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GT-A22 . Santa Clara Systems carries 1,382 items from Keyence.
