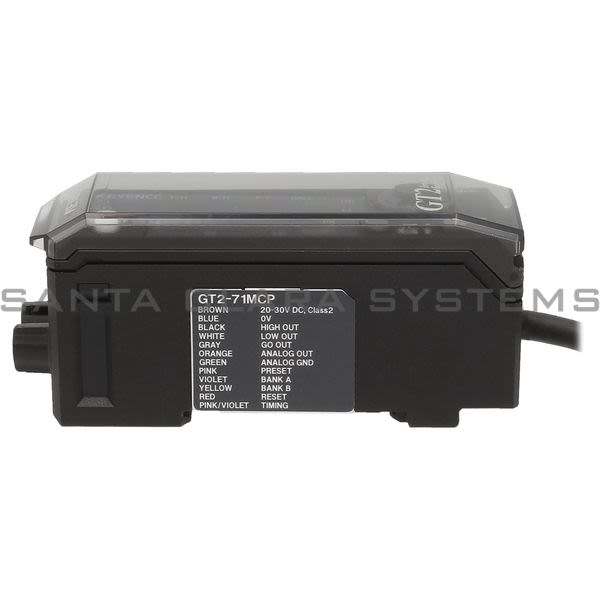

• Keyence GT2-71MCP Sensor Product Image

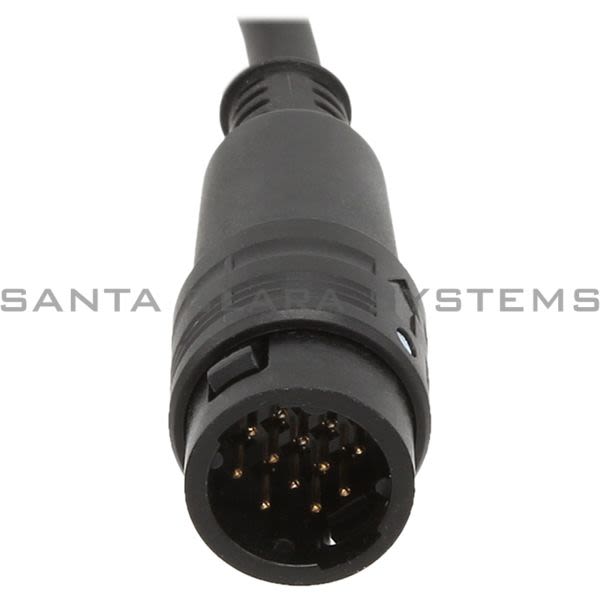

  • Keyence GT2-71MCP Sensor Product Image

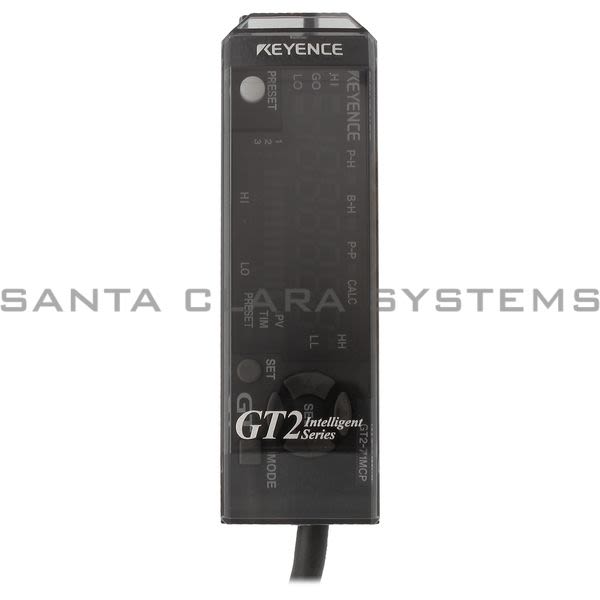

  • Keyence GT2-71MCP Sensor Product Image
  • Keyence GT2-71MCP Sensor Product Image
  • Keyence GT2-71MCP Barcode

GT2-71MCP

Product Summary:

  • Output: PNP output
  • Mounting method: DIN-rail mount
  • Main unit/expansion unit: Main unit
  • Power consumption - Normal: 2700 mW max. (30 V, 90 mA max.)
  • Power consumption - Power saving (Eco): 2200 mW max. (30 V, 73.3 mA max.)
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Sensor
  • Control input - Timing/preset/ reset/bank input: No-voltage input
  • Control output - HH/HI/GO/LO/LL: PNP open collector, 30 V 50 mA or less, residual voltage 1 V or less*1*2
  • Analog output: 4 to 20 mA, maximum load resistance: 350 - Analog output range can be changed as desired.
  • Response time: hsp (3 ms), 5 ms, 10 ms, 100 ms, 500 ms, 1 s
  • Environmental resistance - Ambient temperature: -10 to +50C 14 to 122F (GT2-71MCN/71MCP: -10 to +45C 14 to 113F when expansion unit(s) is connected) (No freezing)
  • Environmental resistance - Relative humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06", double amplitude, 2 hours in each of X, Y, and Z directions
  • Materials: Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET, Cable: PVC
  • Weight: Approx 70 g
  • Footnotes: *1 When adding expansion units, there are the following restrictions according to the number of connected units. [When 2 to 8 units are connected including the main unit] Power supply voltage: 20 to 30 VDC Control output current: 20 mA or less (GT2-71MCN(P) only) Ambient temperature: -10 to 45C 14 to 113F [When 9 to 15 units are connected including the main unit] Power supply voltage: 20 to 30 VDC Control output current: 10 mA or less (including the DL-RB1A output current) Residual voltage: 1.5 V or lower (GT2-71MCN(P) only) Ambient temperature: -10 to 45C 14 to 113F *2 The GT2-71MCN(P) does not have HH/LL.
  • Output: PNP output
  • Mounting method: DIN-rail mount
  • Main unit/expansion unit: Main unit
  • Power supply voltage: 20 to 30 VDC, including 10% ripple (P-P), Class 2*1
  • Power consumption - Normal: 2700 mW max. (30 V, 90 mA max.)
  • Power consumption - Power saving (Eco): 2200 mW max. (30 V, 73.3 mA max.)
  • Display power - Measured value display: 6 + 1/2-digit 7-segment LED (red)
  • Display power - Other displays: 2-color, 13-level bar LED display (red, green), indicators (red, green)
  • Display range: -199.999.9 to 199.999.9
  • Display resolution: 0.1 ?m 0.004 Mil
  • Sampling rate: 1000 times/sec.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GT2-71MCP . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
