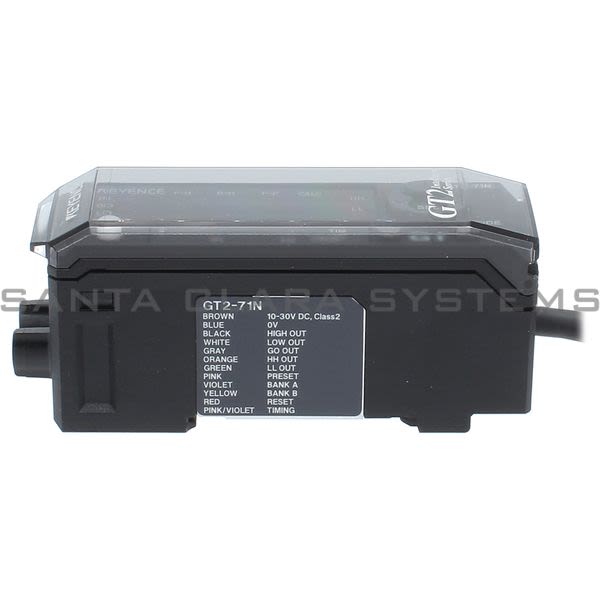

• Keyence GT2-71N Contact Sensor Amplifier Product Image

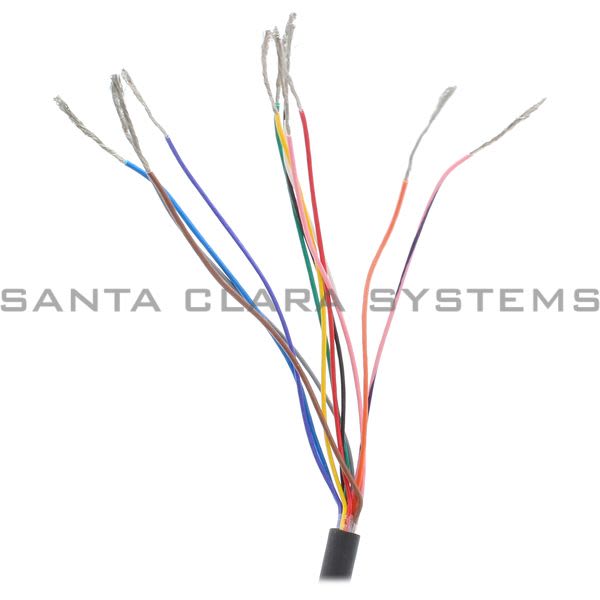

  • Keyence GT2-71N Contact Sensor Amplifier Product Image
  • Keyence GT2-71N Contact Sensor Amplifier Product Image
  • Keyence GT2-71N Contact Sensor Amplifier Product Image
  • Keyence GT2-71N Barcode

GT2-71N

Product Summary:

  • Output: NPN output
  • Mounting method: DIN-rail mount
  • Main unit/expansion unit: Main unit
  • Power consumption - Normal: 2200 mW max. (30 V, 73.3 mA max.)
  • Power consumption - Power saving (Eco): 1700 mW max. (30 V, 56.7 mA max.)
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Contact Sensor Amplifier
  • Control input - Timing/preset/ reset/bank input: No-voltage input
  • Control output - HH/HI/GO/LO/LL: NPN open collector, 40 V 50 mA or less, residual voltage 1 V or less*1*2
  • Analog output: ?
  • Response time: hsp (3 ms), 5 ms, 10 ms, 100 ms, 500 ms, 1 s
  • Environmental resistance - Ambient temperature: -10 to +50C 14 to 122F(No freezing)
  • Environmental resistance - Relative humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06", double amplitude, 2 hours in each of X, Y, and Z directions
  • Materials: Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET, Cable: PVC
  • Weight: Approx 140 g (including power cable)
  • Footnotes: *1 When adding expansion units, there are the following restrictions according to the number of connected units. [When 2 to 8 units are connected including the main unit] Power supply voltage: 20 to 30 VDC Control output current: 20 mA or less (GT2-71MCN(P) only) Ambient temperature: -10 to 45C 14 to 113F [When 9 to 15 units are connected including the main unit] Power supply voltage: 20 to 30 VDC Control output current: 10 mA or less (including the DL-RB1A output current) Residual voltage: 1.5 V or lower (GT2-71MCN(P) only) Ambient temperature: -10 to 45C 14 to 113F *2 The GT2-71MCN(P) does not have HH/LL.
  • Output: NPN output
  • Mounting method: DIN-rail mount
  • Main unit/expansion unit: Main unit
  • Power supply voltage: 10 to 30 VDC, including 10% ripple (P-P), Class 2*1
  • Power consumption - Normal: 2200 mW max. (30 V, 73.3 mA max.)
  • Power consumption - Power saving (Eco): 1700 mW max. (30 V, 56.7 mA max.)
  • Display power - Measured value display: 6 + 1/2-digit 7-segment LED (red)
  • Display power - Other displays: 2-color, 13-level bar LED display (red, green), indicators (red, green)
  • Display range: -199.999.9 to 199.999.9
  • Display resolution: 0.1 ?m 0.004 Mil
  • Sampling rate: 1000 times/sec.
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GT2-71N . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
