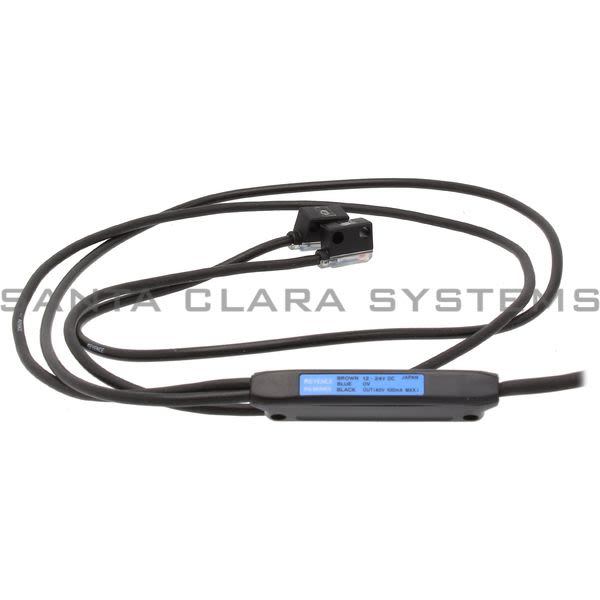

• Keyence PQ-01 Photoelectric Sensor Product Image

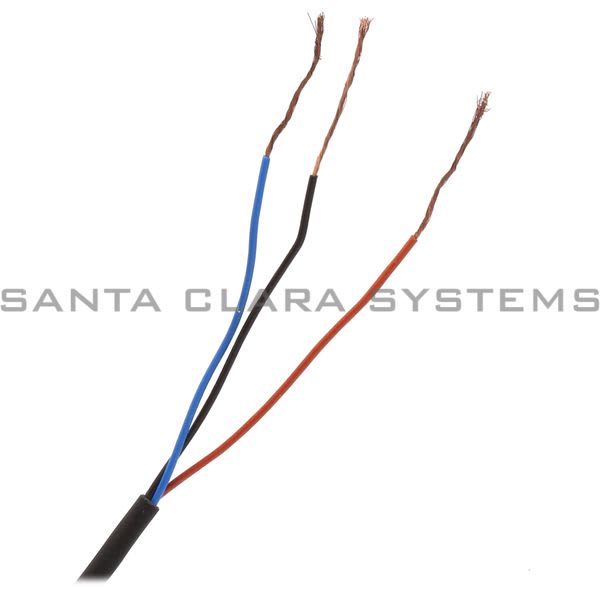

  • Keyence PQ-01 Photoelectric Sensor Product Image

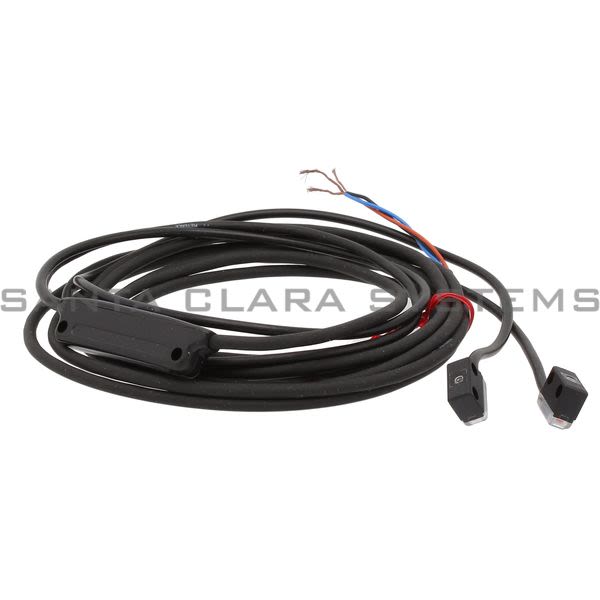

  • Keyence PQ-01 Photoelectric Sensor Product Image

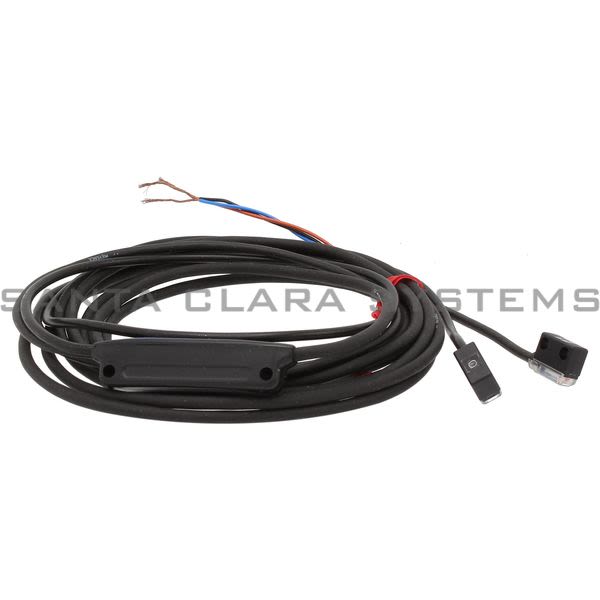

  • Keyence PQ-01 Photoelectric Sensor Product Image
  • Keyence PQ-01 Barcode

PQ-01

Product Summary:

  • Type: Thrubeam Short-detecting distance
  • Detecting distance: 100 mm 3.94"
  • Light source: Infrared LED
  • Detectable object: 1 mm 0.04" dia. min. opaque materials
  • Minimum detectable object: 0.5 mm 0.02" dia. copper wire
Get a Quote
           or
  • Description: Photoelectric Sensor
  • Rating - Current consumption.: 30 mA max.
  • Environmental resistance - Enclosure rating: IP64
  • Environmental resistance - Operating ambient luminance: Incandescent lamp? 3,000 lux max., Sunlight? 10,000 lux max.
  • Environmental resistance - Operating temperature range: -20 to +55C -4 to 131F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 85% RH (No condensation)
  • Environmental resistance - Vibration: 10 to 55 Hz, double amplitude: 1.5 mm 0.06", 2 hours each in the X, Y and Z axis
  • Environmental resistance - Shock resistance: 500 m/s2 in X, Y, and Z directions, 3 times respectively
  • Material: Amplifier? Polysulfone, Sensor head? Polyarylate
  • Weight (including 2m 6.6' cable): Approx. 48 g
  • Footnotes: *1 For the LIGHT-ON operation mode, contact KEYENCE. *2 NPN output can easily be converted to PNP output by connecting the optional OP-5148 PNP output converter.
  • Type: Thrubeam Short-detecting distance
  • Detecting distance: 100 mm 3.94"
  • Light source: Infrared LED
  • Detectable object: 1 mm 0.04" dia. min. opaque materials
  • Minimum detectable object: 0.5 mm 0.02" dia. copper wire
  • Response time: 1 ms max.
  • Operation mode: DARK-ON *1
  • Indicator lamp: Output? Red LED
  • Control output: NPN: 100 mA max. (40 V max.), Residual voltage: 1 V max. *2
  • Protection circuit: Reversed polarity, overcurrent protection, surge absorber
  • Rating - Power voltage: 12 to 24 VDC 10%
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PQ-01 . Santa Clara Systems carries 1,285 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
