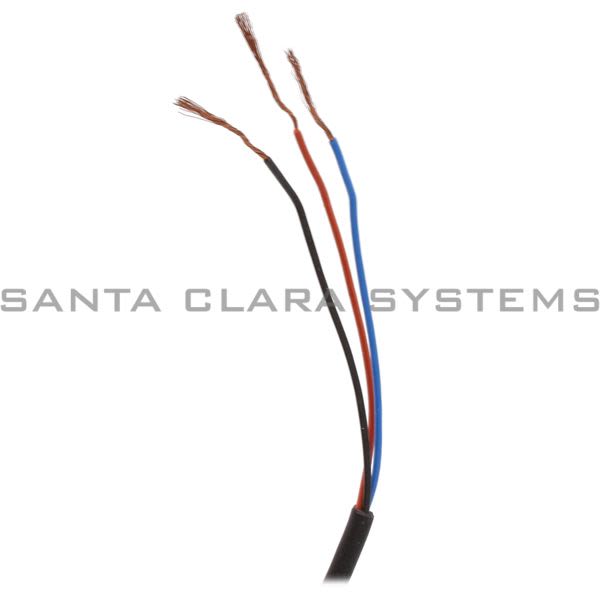

• Keyence PQ-01-SO-1396 Product Image

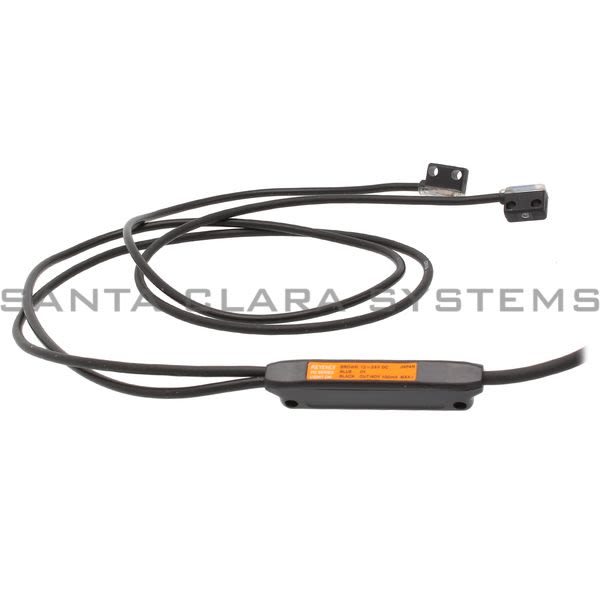

  • Keyence PQ-01-SO-1396 Product Image

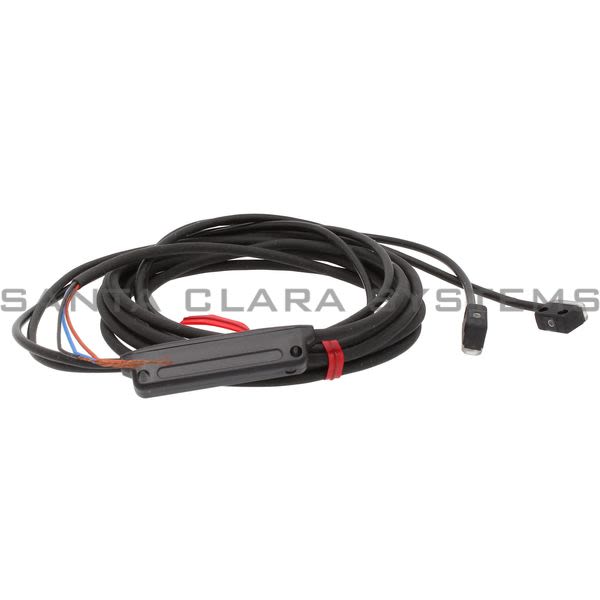

  • Keyence PQ-01-SO-1396 Product Image

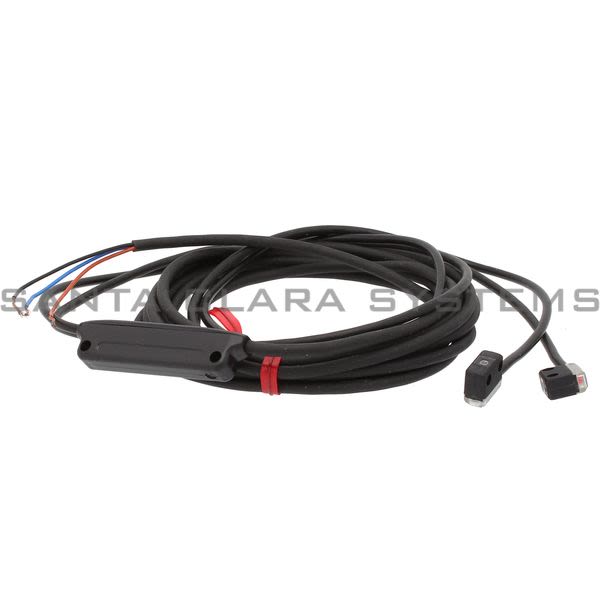

  • Keyence PQ-01-SO-1396 Product Image
  • Keyence PQ-01-SO-1396 Barcode

PQ-01-SO-1396

Get a Quote

Current response time:

16 Minutes 40 Seconds
  • Description:
  • Response time: 1 ms max
  • Light source: Infrared LED
  • Cable length: 2m (between sensor head and amplifier: 500mm each)
  • Supply voltage: DC12 to 24 +10%, Ripple (p-p) 10% max
  • Degree of protection: IP-64
  • Detecting distance - PQ-01: 0 to 100mm
  • Detecting distance - PQ-02: 0 to 300mm
  • Current consumption: 30mA max.
  • Output mode: Dark-ON
  • Control output: 100mA (at 40V) max. NPN open-collector
  • Protective circuit: Reversed polarity, overcurrent protection, surge obsorber
  • Detectable object - PQ-01: Opaque materials (1.0mm dia. min.)
  • Detectable object - PQ-02: Opaque materials (2.0mm dia. min)
  • Ambient operating illumination - Incandscent lamp: 3,000 lx max
  • Ambient operating illumination - Sunlight: 10,000 lx max
  • Ambient operating temperature: -20*C to 55*C (without freezing)
  • Ambient operating humidity: 35 to 85% RH
  • Detection indicator: Red LED
  • Vibration: 10 to 55Hz, 1.5mm double amplitude, in X, Y, and Z directions, respectively for 2 hours
  • Shock: Mechanical durability: 500m/s (approx. 50g) in X, Y, and Z directions, 3 times respectively
  • Materials: Amplifier: Polysulfone, Sensor: Polyallylate
  • Weight (including cable): Approx 48g
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PQ-01-SO-1396 . Santa Clara Systems carries 2,096 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
