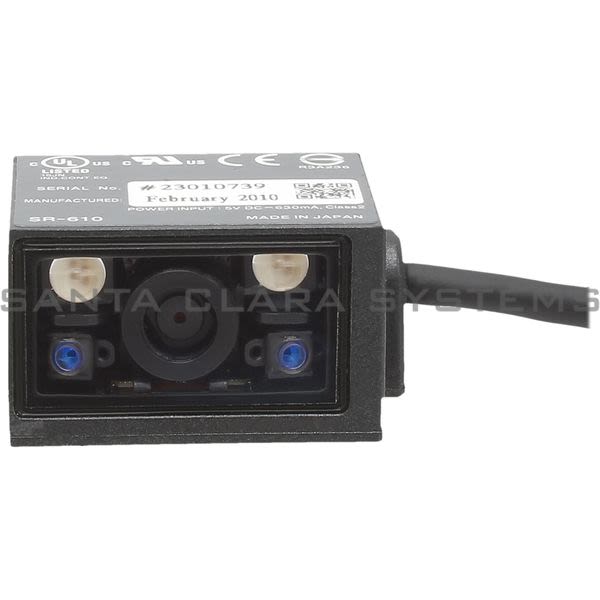

SR-610

Keyence - Barcode Reader

Current response time:

By 5AM PT on Monday

Emergency?

Description: Barcode Reader
Weight: Approx 160 g
Footnotes: *1 The laser classification for FDA (CDRH) is implemented based on IEC60825-1 in accordance with the requirements of Laser Notice No.50. *2 Use the Limited Power Source defined in UL/IEC60950-1 to comply with UL/IEC60950-1. *3 In order to conform with UL/IEC60950-1, use a Limited Power Source defined by UL/IEC60950-1.
Type: Middle-range
Laser pointer - Light source: Visible semiconductor laser (wavelength: 660 nm)
Laser pointer - Output: 90 ?W
Laser pointer - Pulse duration: 200 ?s
Laser pointer - Laser class: Class 1 Laser Product (IEC60825-1, FDA (CDRH) Part1040.10)*1*2
Lights - Light source: High-intensity red LED
Reading - Supported codes - Barcode: GS1 Databar; CODE39; ITF; Industrial 2 of 5; NW-7 (Codabar); JAN, EAN, UPC; CODE128; COOP 2 of 5; CODE93
Reading - Supported codes - 2D code: QR code, Micro QR code, DataMatrix, PDF417, MicroPDF417, MaxiCode, composite symbol (Composite Component)
Reading - Minimum resolution - Barcode: 0.127 mm 0.005"
Reading - Minimum resolution - 2D code: 0.25 mm 0.01"
Reading - Reading distance (typical examples) - DataMatrix: 40 mm to 173 mm 1.57" to 6.81" (cell size: 0.508 mm 0.02")
Reading - Reading distance (typical examples) - QR: 35 mm to 188 mm 1.38" to 7.40" (cell size: 0.508 mm 0.02")
Reading - Reading distance (typical examples) - Barcode: 44 mm 1.73" to 205 mm 8.07" (narrow bar width: 0.508 mm 0.02")
Reading - Focal point: 100mm 3.94?
Reading - Reading view range (at the focal length): 70.6 mm 2.78" x 45.0 mm 1.77"
Reading - Reading time (Typical): 21 ms (focal length for 21 21 QR codes)
Terminal block - Input - Number of inputs: 2 (IN1 and IN2)
Terminal block - Input - Input type: No-voltage input

Terminal block - Output - Number of outputs: 4 (OUT1, OUT2, OUT3, and OUT4)
Terminal block - Output - Output type: NPN open collector
Terminal block - Output - Rated load: 24 VDC, 30 mA
Terminal block - Output - Leakage current when OFF: 0.1mA or less
Terminal block - Output - Residual voltage when ON: 0.8V or less
I/O specifications - Serial interface - Communication method: Conforms to EIA RS-232C
I/O specifications - Serial interface - Communication speed: 9600, 19200, 38400, 57600, 115200 bps
I/O specifications - Serial interface - Synchronization between the transmitter and receiver: Asynchronous
I/O specifications - Serial interface - Data bit length: 7 or 8 bits
I/O specifications - Serial interface - Stop bit length: 1 bit or 2 bits
I/O specifications - Serial interface - Parity check: None, odd, even
I/O specifications - USB: Conforms to USB 2.0 Full Speed
Rating - Power voltage: 5 VDC +5% or -10%
Rating - Current consumption: 630mA or less*3
Environmental resistance - Ambient temperature: 0 to +45C 32 to 113F
Environmental resistance - Ambient storage temperature: -10 to +50C 14 to 122F
Environmental resistance - Relative humidity: 35 to 95%RH (no condensation)
Environmental resistance - Operating environment: No dust or corrosive gas present
Environmental resistance - Vibration: 10 to 55 Hz, 1.5 mm 0.06" double amplitude for 3 hours in each of the X, Y, and Z directions
Environmental resistance - Enclosure rating: IP65
Environmental resistance - Operating ambient luminance: Sunlight: 10,000 lux, incandescent lamp: 6,000 lux
