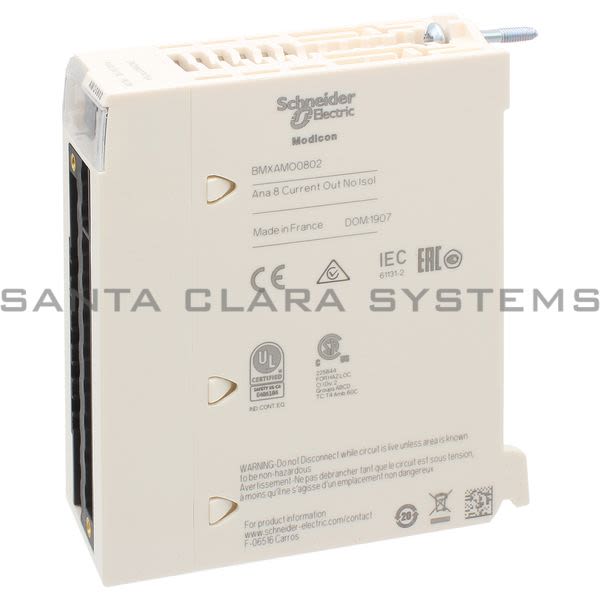

• Modicon BMX AMO0802 analog output module M340 - 8 outputs Product Image

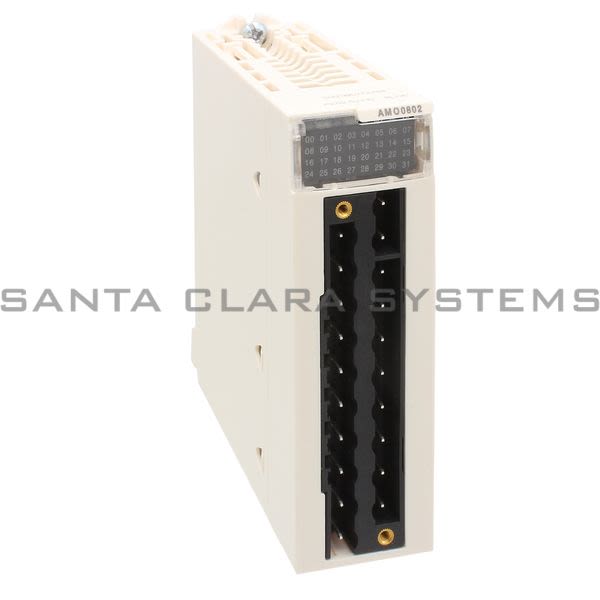

  • Modicon BMX AMO0802 analog output module M340 - 8 outputs Product Image

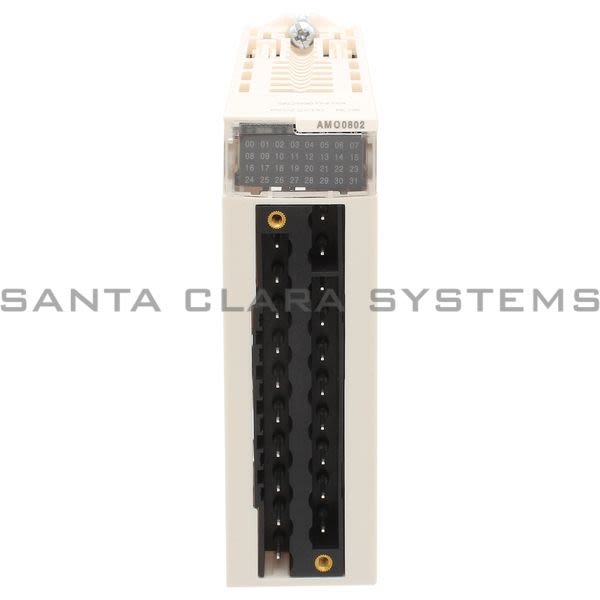

  • Modicon BMX AMO0802 analog output module M340 - 8 outputs Product Image

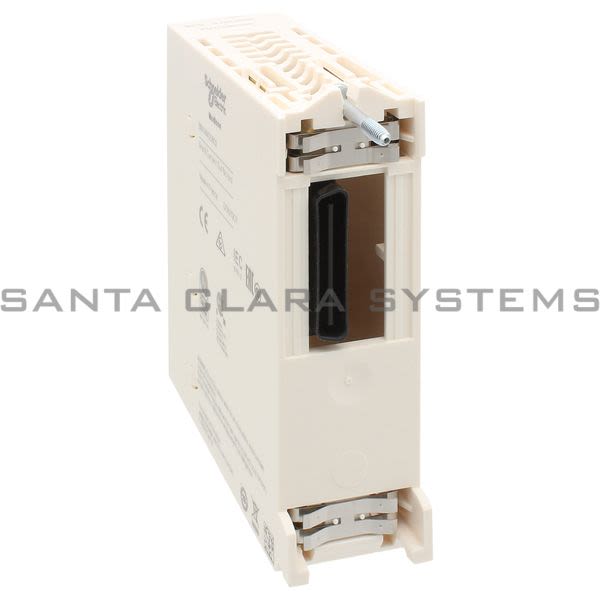

  • Modicon BMX AMO0802 analog output module M340 - 8 outputs Product Image
  • Modicon BMX AMO0802 Barcode

BMXAMO0802

Product Summary:

  • Range of product: Modicon X80
  • Product weight: 0.33 lb(US) (0.15 kg)
  • Electrical connection: 1 connector 20 ways
  • Protective treatment: TC
  • Relative humidity: 5...95 % without condensation
Get a Quote

Current response time:

12 Minutes 5 Seconds
  • Description: analog output module M340 - 8 outputs
  • Range of product: Modicon X80
  • Product weight: 0.33 lb(US) (0.15 kg)
  • Electrical connection: 1 connector 20 ways
  • Protective treatment: TC
  • Relative humidity: 5...95 % without condensation
  • Standards: EN/IEC 61131-2, UL 61010-2-201, CSA C22.2 No 61010-2-201, EN/IEC 61010-2-201
  • Operating altitude: 0...6561.68 ft. (0...2000 m), 2000...5000 m (with derating factor)
  • Measurement error: <= 0.25 % of full scale 0...60 C, 0.1 % of full scale 25 C
  • Vibration resistance: 3 gn
  • Product or component type: Analog output module
  • Temperature drift: 45 ppm/C 0...20 mA, 45 ppm/C 4...20 mA
  • Shock resistance: 30 gn
  • Common mode between channels: >= 80 dB
  • Ambient air temperature for storage: -40...185 F (-40...85 C)
  • Input output isolation: Non isolated
  • Isolation voltage: 1400 V DC between channels and ground, 1400 V DC between channels and bus
  • Ambient air temperature for operation: 32...140 F (0...60 C)
  • Detection type: Open circuit 4...20 mA, Short circuit 0...20 mA
  • Load impedance ohmic: <= 350 Ohm 0...20 mA, <= 350 Ohm 4...20 mA
  • IP degree of protection: IP20
  • Output level: High level
  • Product certifications: UL, RCM, Merchant Navy, EAC, CE, CSA
  • Analogue output number: 8
  • Analogue output type: Current 0...20 mA, Current 4...20 mA
  • Analogue output resolution: 15 bits + sign
  • Supply: Internal power supply via rack
  • Conversion time: <= 4 ms
  • Maximum conversion value: 0...21 mA 0...20 mA, 0...21 mA 4...20 mA
  • Fallback mode: Configurable, Predefined
  • status LED: 1 LED green RUN, 1 LED per channel green channel diagnostic, 1 LED red ERR, 1 LED red I/O
  • Current consumption: 150 mA at 3.3 V DC, 74 mA at 24 V DC
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BMXAMO0802 . Santa Clara Systems carries 1,951 items from Modicon.
  • Analog Output Module M340 - 8 Outputs
