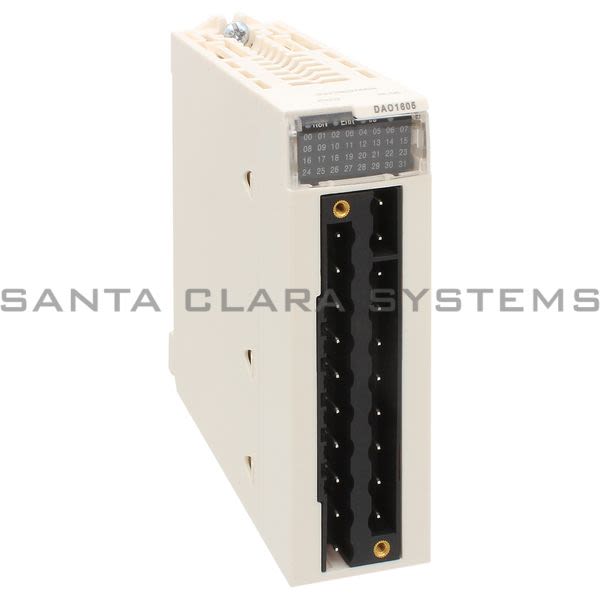

• Modicon BMX DAO1605 discrete output module M340 - 16 outputs - triac - 100..240 V AC Product Image

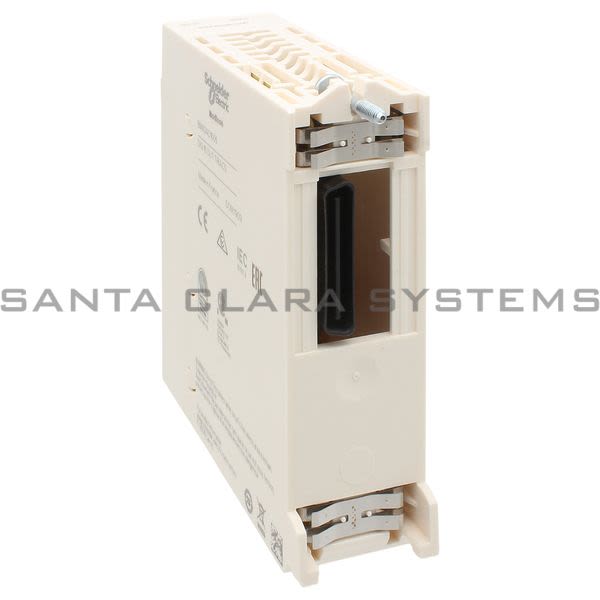

  • Modicon BMX DAO1605 discrete output module M340 - 16 outputs - triac - 100..240 V AC Product Image

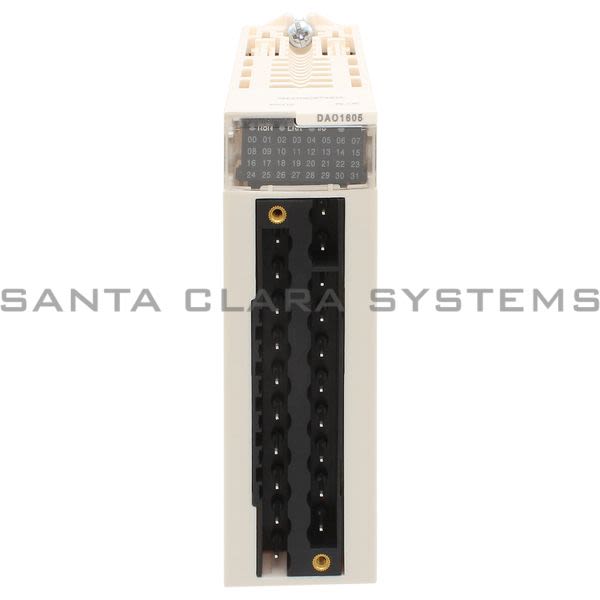

  • Modicon BMX DAO1605 discrete output module M340 - 16 outputs - triac - 100..240 V AC Product Image

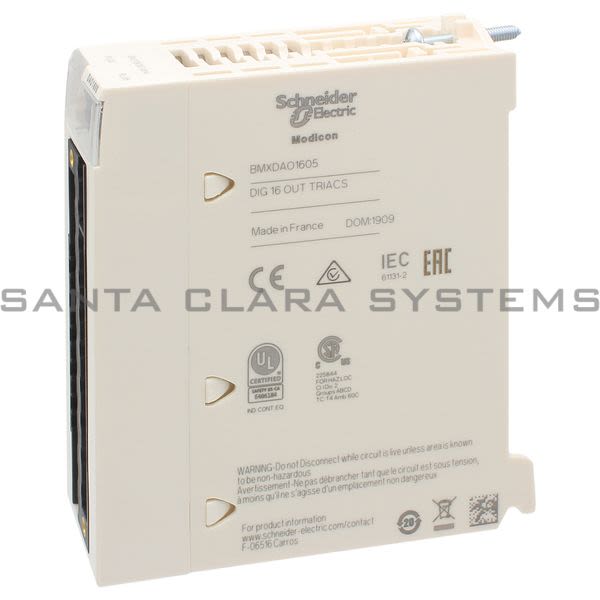

  • Modicon BMX DAO1605 discrete output module M340 - 16 outputs - triac - 100..240 V AC Product Image
  • Modicon BMX DAO1605 Barcode

BMXDAO1605

Product Summary:

  • Range of product: Modicon X80
  • Electrical connection: 20-way connector
  • Protective treatment: TC
  • Protection type: 1 external fuse fast blow
  • Relative humidity: 5...95 % without condensation
Get a Quote

Current response time:

15 Minutes 22 Seconds
  • Description: discrete output module M340 - 16 outputs - triac - 100..240 V AC
  • Range of product: Modicon X80
  • Electrical connection: 20-way connector
  • Protective treatment: TC
  • Standards: UL 61010-2-201, EN/IEC 61131-2, CSA C22.2 No 61010-2-201, EN/IEC 61010-2-201
  • Protection type: 1 external fuse fast blow
  • Relative humidity: 5...95 % without condensation
  • Operating altitude: 0...6561.68 ft. (0...2000 m), 2000...5000 m (with derating factor)
  • Current per channel: <= 0.6 A
  • IP degree of protection: IP20
  • Product or component type: Discrete output module
  • Leakage current: <= 1.5 mA at state 0 120 V, <= 3 mA at state 0 240 V
  • Product certifications: CE, Merchant Navy, CSA, UL, RCM, EAC
  • [Ures] residual voltage: <= 1.5 V at state 1
  • Discrete output number: 16
  • Insulation resistance: > 10 MOhm 500 V DC
  • Dielectric strength: 2830 V AC at 50/60 Hz 1 min
  • Discrete output type: Triac
  • Response time on output: <= 1 ms resistive activation, <= 1 ms resistive deactivation
  • Vibration resistance: 3 gn
  • Discrete output voltage: 100...240 V 85...288 V AC
  • Typical current consumption: 100 mA at 3.3 V DC
  • Shock resistance: 30 gn
  • Ambient air temperature for storage: -40...185 F (-40...85 C)
  • Output overload protection: With varistor
  • Ambient air temperature for operation: 32...140 F (0...60 C)
  • Inrush current: <= 20 A
  • Current per output common: <= 2.4 A
  • Output current limits: 0.025...4.8 A
  • status LED: 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module I/O, 1 LED red module error (ERR)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BMXDAO1605 . Santa Clara Systems carries 1,951 items from Modicon.
  • Discrete Output Module M340 - 16 Outputs - Triac - 100..240 V Ac
