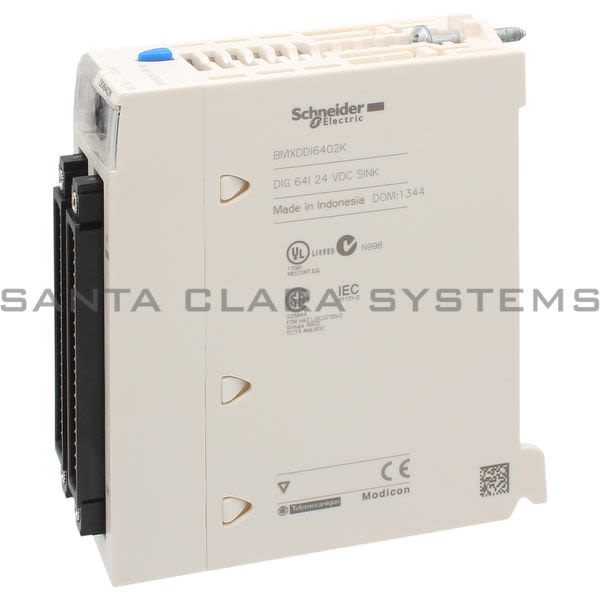

• Modicon BMXDDI6402K discrete input module M340 - 64 inputs - 24 V DC positive Product Image

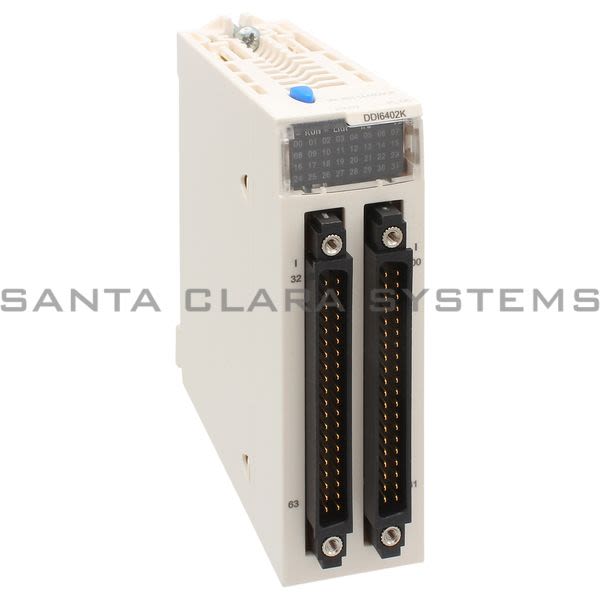

  • Modicon BMXDDI6402K discrete input module M340 - 64 inputs - 24 V DC positive Product Image

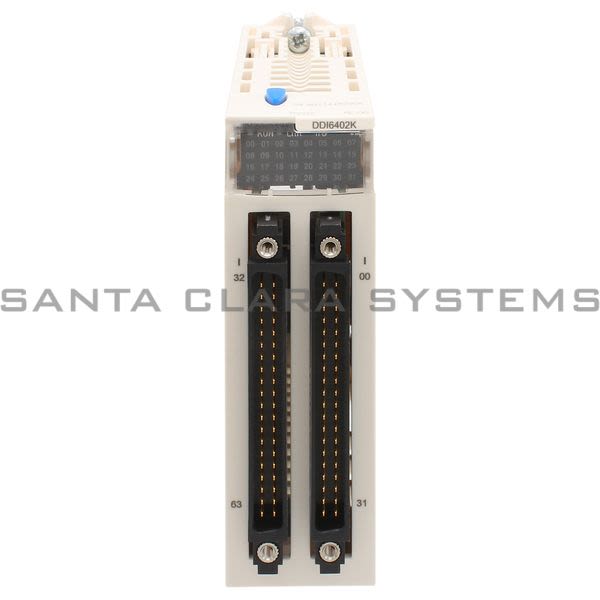

  • Modicon BMXDDI6402K discrete input module M340 - 64 inputs - 24 V DC positive Product Image
  • Modicon BMXDDI6402K discrete input module M340 - 64 inputs - 24 V DC positive Product Image
  • Modicon BMXDDI6402K Barcode

BMXDDI6402K

Product Summary:

  • Range of product: Modicon X80
  • Product weight: 0.32 lb(US) (0.145 kg)
  • Electrical connection: Two 40-way connectors
  • Input type: Current sink (logic positive)
  • Protective treatment: TC
Get a Quote

Current response time:

14 Minutes 53 Seconds
  • Description: discrete input module M340 - 64 inputs - 24 V DC positive
  • Range of product: Modicon X80
  • Product weight: 0.32 lb(US) (0.145 kg)
  • Electrical connection: Two 40-way connectors
  • Input type: Current sink (logic positive)
  • Protective treatment: TC
  • Standards: UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2, CSA C22.2 No 61010-2-201
  • Relative humidity: 5...95 % without condensation
  • Operating altitude: 0...6561.68 ft. (0...2000 m), 2000...5000 m (with derating factor)
  • Protection type: Without reverse polarity protection, 1 external fuse per group of channel 0.5 A fast blow
  • Sensor power supply: 19...30 V
  • IP degree of protection: IP20
  • Product or component type: Discrete input module
  • Voltage state 1 guaranteed: >= 15 V
  • Product certifications: EAC, Merchant Navy, RCM, UL, CE, CSA
  • Current state 1 guaranteed: >= 1 mA
  • Discrete input number: 64
  • Voltage state 0 guaranteed: <= 5 V
  • Dielectric strength: 1500 V AC at 50/60 Hz 1 minute, primary/secondary, 500 V DC 1 minute, between group of channels
  • Discrete input type: Isolated
  • Current state 0 guaranteed: <= 0.5 mA
  • Vibration resistance: 3 gn
  • Input impedance: 24000 Ohm
  • Shock resistance: 30 gn
  • Discrete input voltage: 24 V DC positive
  • Insulation resistance: > 10 MOhm 500 V DC
  • Ambient air temperature for storage: -40...185 F (-40...85 C)
  • Discrete input current: 1 mA
  • power dissipation in W: <= 4.3 W
  • Ambient air temperature for operation: 32...140 F (0...60 C)
  • DC typical filtering time: 4 ms
  • DC maximum filtering time: 7 ms
  • Paralleling of inputs: No
  • Typical current consumption: 200 mA at 3.3 V DC
  • MTBF reliability: 362681 H
  • Voltage detection threshold: < 14 V DC sensor fault, > 18 V DC sensor OK
  • status LED: 1 LED green +32 channels indicator, 1 LED green module operating (RUN), 1 LED per channel green channel diagnostic, 1 LED red module I/O, 1 LED red module error (ERR)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BMXDDI6402K . Santa Clara Systems carries 1,951 items from Modicon.
  • Discrete Input Module M340 - 64 Inputs - 24 V Dc Positive
