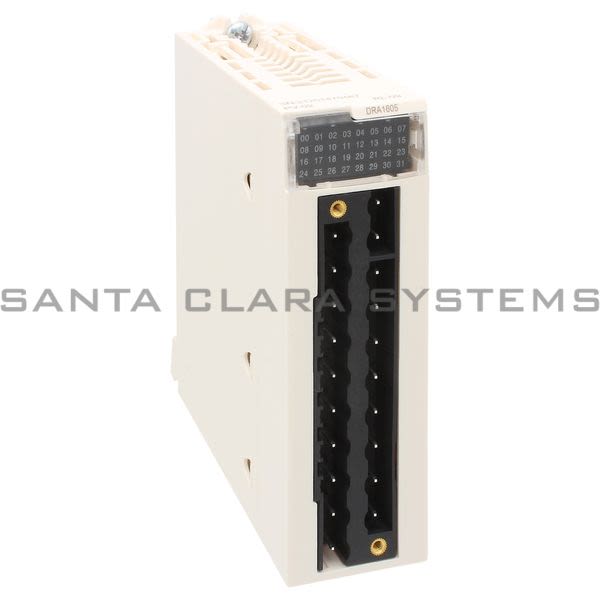

• Modicon BMX DRA1605 discrete output module M340 - 16 outputs - relay - 24 V DC Product Image

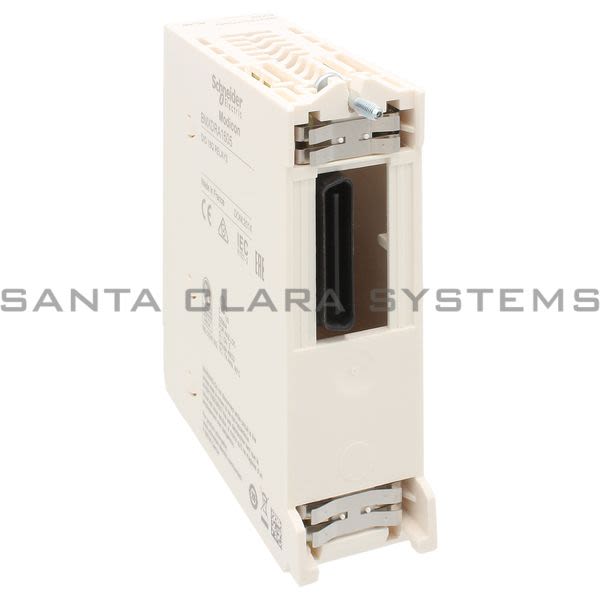

  • Modicon BMX DRA1605 discrete output module M340 - 16 outputs - relay - 24 V DC Product Image

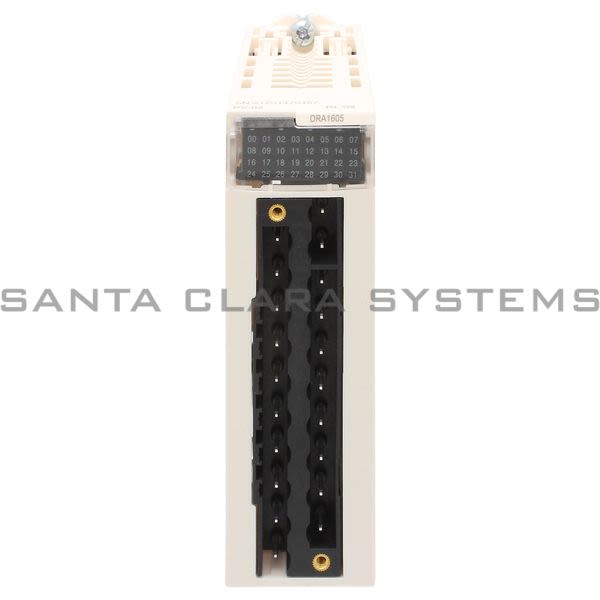

  • Modicon BMX DRA1605 discrete output module M340 - 16 outputs - relay - 24 V DC Product Image
  • Modicon BMX DRA1605 discrete output module M340 - 16 outputs - relay - 24 V DC Product Image
  • Modicon BMX DRA1605 Barcode

BMXDRA1605

Product Summary:

  • Range of product: Modicon X80
  • Product weight: 0.33 lb(US) (0.15 kg)
  • Electrical connection: 20-way connector
  • Protective treatment: TC
  • Relative humidity: 5...95 % without condensation
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: discrete output module M340 - 16 outputs - relay - 24 V DC
  • Range of product: Modicon X80
  • Product weight: 0.33 lb(US) (0.15 kg)
  • Electrical connection: 20-way connector
  • Protective treatment: TC
  • Standards: UL 61010-2-201, EN/IEC 61010-2-201, CSA C22.2 No 61010-2-201, EN/IEC 61131-2
  • Protection type: AC inductive overvoltage protection, DC inductive overvoltage protection, External overload protection, External short-circuit protection
  • Relative humidity: 5...95 % without condensation
  • Operating altitude: 0...6561.68 ft. (0...2000 m), 2000...5000 m (with derating factor)
  • [Ith] conventional free air thermal current: 2:00 AM
  • IP degree of protection: IP20
  • Product or component type: Discrete output module
  • Insulation resistance: > 10 MOhm 500 V DC
  • Product certifications: CE, UL, CSA, Merchant Navy, EAC, RCM
  • power dissipation in W: <= 3 W
  • Discrete output number: 16 conforming to EN/IEC 61131-2
  • Response time on output: <= 10 ms activation, <= 12 ms deactivation
  • Dielectric strength: 2000 V AC at 50/60 Hz 1 min
  • Discrete output type: Relay
  • Typical current consumption: 100 mA at 3.3 V DC
  • Vibration resistance: 3 gn
  • Discrete output voltage: 24 V 19...30 V DC, 240 V 200...264 V AC
  • MTBF reliability: 2463296 H
  • Shock resistance: 30 gn
  • Ambient air temperature for storage: -40...185 F (-40...85 C)
  • Output overload protection: Use 1 fast blow fuse per channel or group of channel
  • Ambient air temperature for operation: 32...140 F (0...60 C)
  • Output overvoltage protection: Use discharge diode on each output DC, Use RC circuit on each output AC, Use ZNO surge limiter on each output AC
  • Output short-circuit protection: Use 1 fast blow fuse per channel or group of channel
  • Minimum switching current: 1 mA 5 V DC
  • Electrical durability: 100000 cycles AC-14 240 VA 240 V 0.7, 100000 cycles AC-14 300 VA 200 V 0.7, 100000 cycles AC-15 120 VA 240 V 0.35, 100000 cycles AC-15 200 VA 200 V 0.35, 100000 cycles DC-13 10 W 100 V, 100000 cycles DC-13 24 W 24 V, 300000 cycles AC-14 72 VA 240 V 0.7, 300000 cycles AC-14 80 VA 200 V 0.7, 300000 cycles AC-15 36 VA 240 V 0.35, 300000 cycles AC-15 60 VA 200 V 0.35, 300000 cycles DC-13 3 W 100 V, 300000 cycles DC-13 7.2 W 24 V
  • status LED: 1 LED per channel green channel diagnostic, 1 LED red ERR, 1 LED red I/O, 1 LED green RUN
