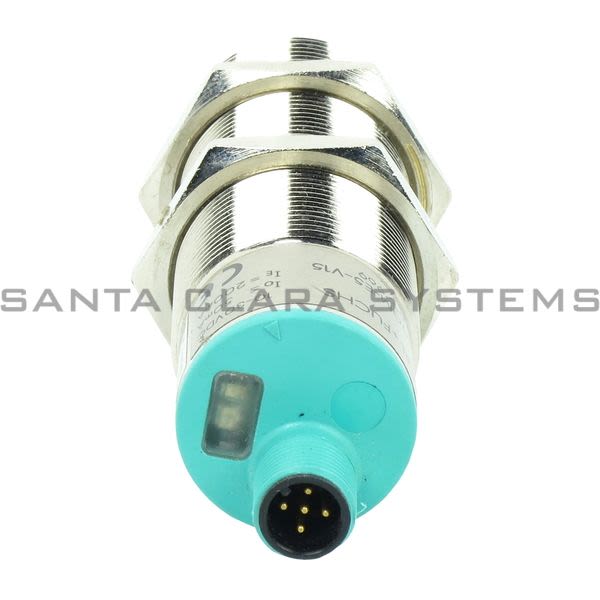

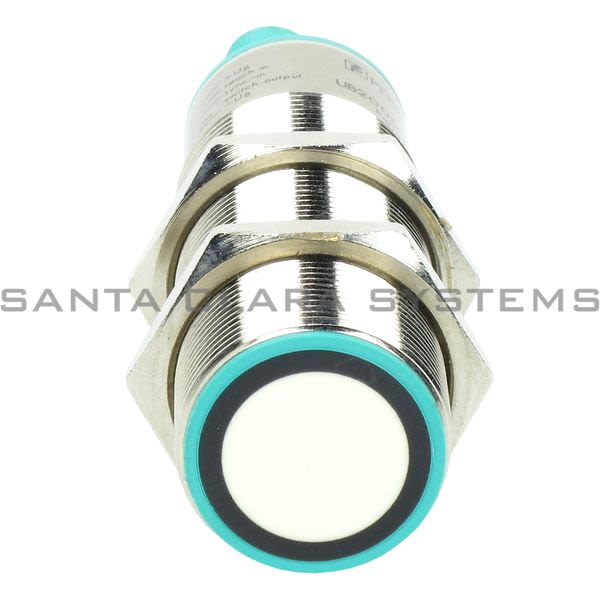

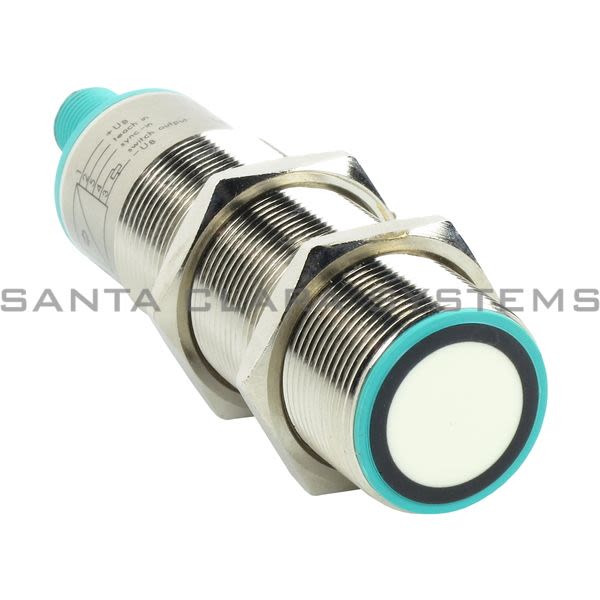

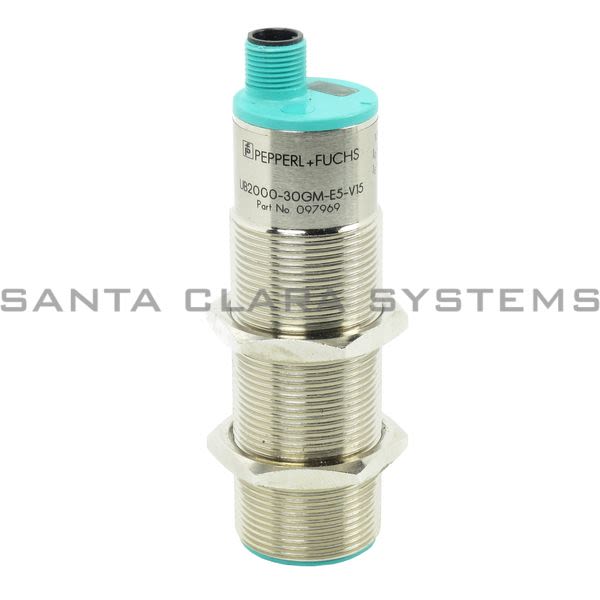

UB2000-30GM-E5-V15

Pepperl+Fuchs - Ultrasonic Sensor

Product Summary:

Operating Voltage: 10 ... 30 V DC
Switching Frequency: 0 ... 3.3 Hz
Output Type: 1 switch output PNP , normally open/closed , programmable
Degree of Protection: IP65
Sensing Range: 80 ... 2000 mm

Current response time:

18 Minutes 27 Seconds

Description: Ultrasonic Sensor
Operating Voltage: 10 ... 30 V DC
Switching Frequency: 0 ... 3.3 Hz
Output Type: 1 switch output PNP , normally open/closed , programmable
Degree of Protection: IP65
Sensing Range: 80 ... 2000 mm
Input Type: 1 program input

Adjustment Range: 120 ... 2000 mm
Dead Band: 0 ... 80 mm
Standard Target Plate: 100 mm x 100 mm
Transducer Frequency: approx. 180 kHz
Response Delay: approx. 150 ms
No-Load Supply Current: 0 ... 50 mA
Range Hysteresis: 1 % of the set operating distance

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on UB2000-30GM-E5-V15 . Santa Clara Systems carries 2,184 items from Pepperl+Fuchs.

Switch Output 5 Different Output Functions Can Be Set program Input synchronization Options deactivation Option temperature Compensation insensitive To Compressed Air
