2810939

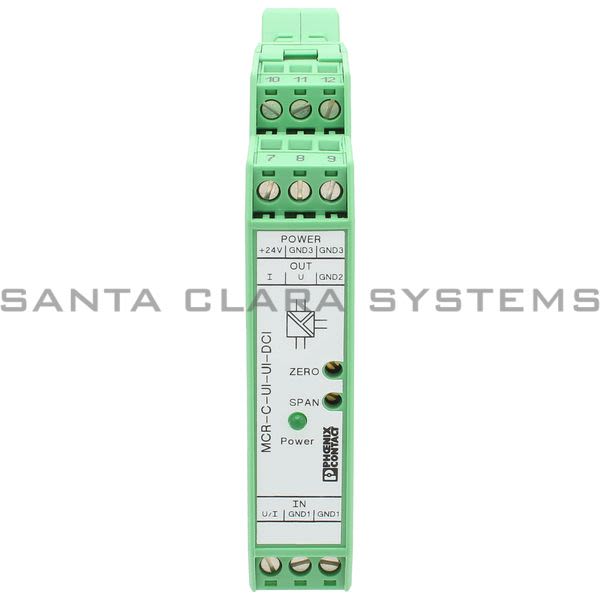

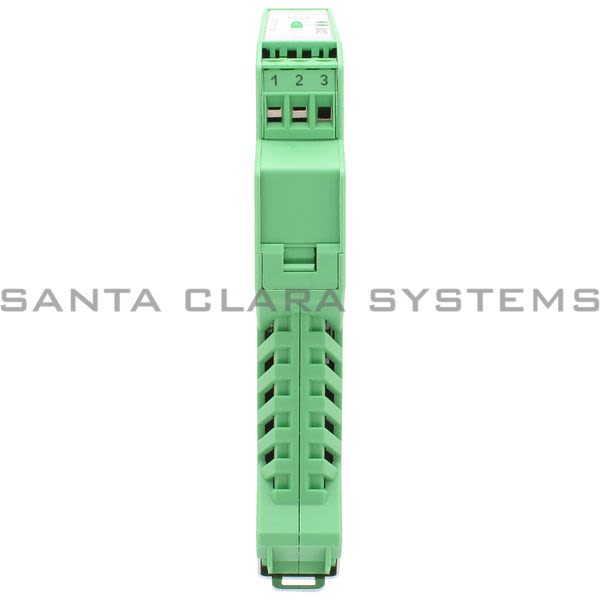

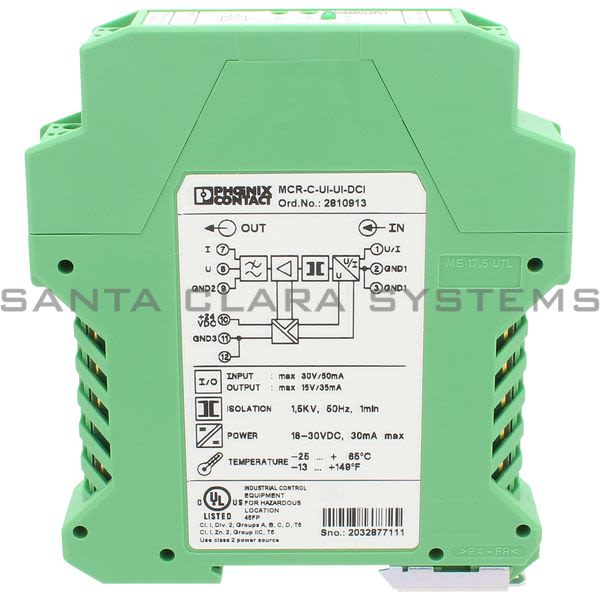

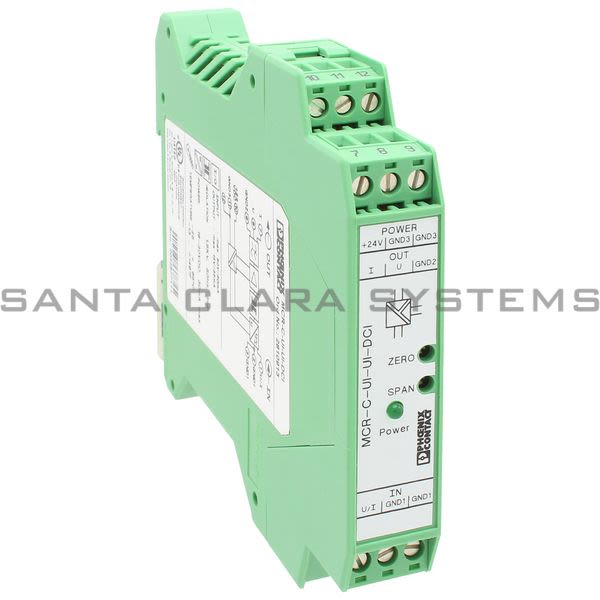

Phoenix Contact - 3-Way Isolating Amplifier | MCR-C-UI-UI-DCI-NC

Product Summary:

Housing Material: Polyamide PA non-reinforced
Number of Inputs: 1
Voltage Input Signal: 0 V ... 10 V
Max. Input Voltage: 30 V
Max. Input Current: 50 mA

Current response time:

17 Minutes 19 Seconds

Description: 3-Way Isolating Amplifier | MCR-C-UI-UI-DCI-NC
Housing Material: Polyamide PA non-reinforced
Number of Inputs: 1
Input Configurable/Programmable: Yes, standard configuration IN 0 ... 10 V, OUT 0 ... 10 V
Voltage Input Signal: 0 V ... 10 V
Max. Input Voltage: 30 V
Max. Input Current: 50 mA
Number of Outputs: 1
Output Configurable/Programmable: Yes, unconfigured

Voltage Output Signal: 0 V ... 10 V
Supply Voltage Range: 18 V DC ... 30 V DC
Max. Current Consumption: < 30 mA (without load)
Connection Method: Pluggable screw connection
Maximum Temperature Coefficient: 0.0075 %/K
Limit Frequency (3 dB): 30 Hz
Protective Circuit: Transient protection
Electromagnetic Compatibility: Conformance with EMC directive

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 2810939 . Santa Clara Systems carries 1,379 items from Phoenix Contact.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
