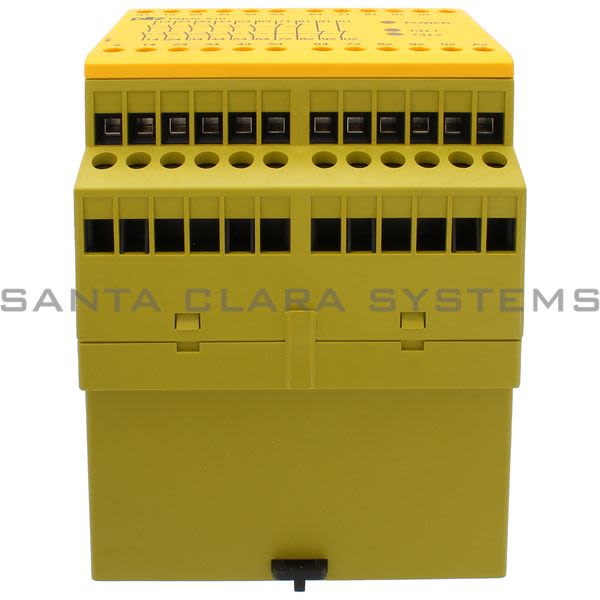

• Pilz PNOZ X10 110-120VAC 6N/O 4N/C 3LED-774703 Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 6 N/O, 4 Product Image

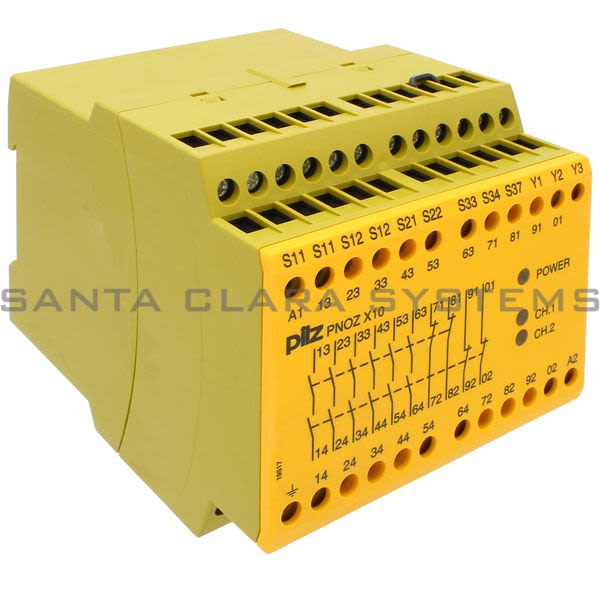

  • Pilz PNOZ X10 110-120VAC 6N/O 4N/C 3LED-774703 Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 6 N/O, 4 Product Image

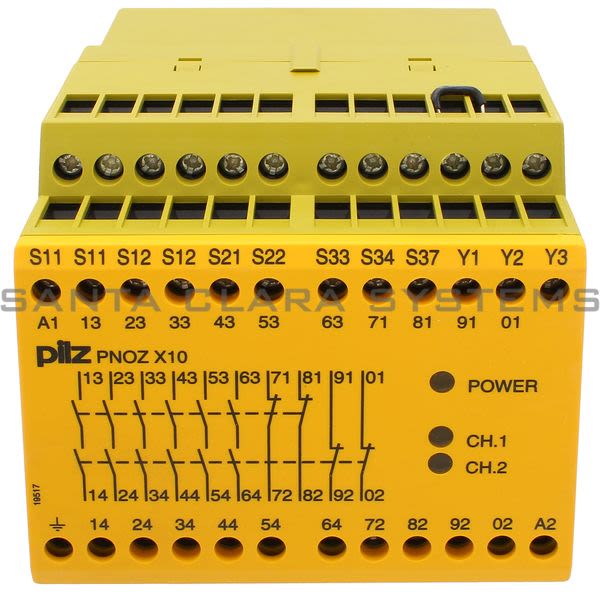

  • Pilz PNOZ X10 110-120VAC 6N/O 4N/C 3LED-774703 Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 6 N/O, 4 Product Image

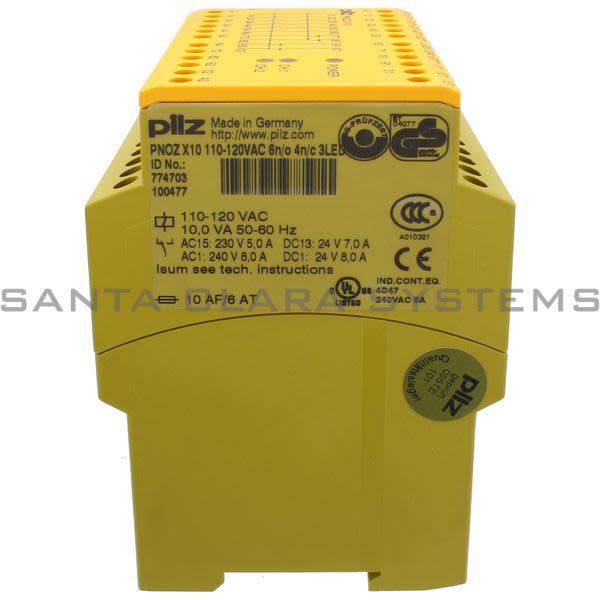

  • Pilz PNOZ X10 110-120VAC 6N/O 4N/C 3LED-774703 Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 6 N/O, 4 Product Image
  • Pilz PNOZ X10 110-120VAC 6N/O 4N/C 3LED-774703 Barcode

PNOZX10110-120VAC6N-O4N-C3LED-774703

Product Summary:

  • Gross weight:: 730 g
  • Net weight:: 720 g
  • Ambient temperature:: -10 - 55 C
  • Height dimension:: 87.0 mm
  • Width dimension:: 90.0 mm
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Safety relay (standalone) Inputs: 1-/2-channel wiring with/without detection of shorts across contacts Outputs: 6 N/O, 4
  • Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
  • Supply voltage (V):: 110,0 - 120,0
  • Supply voltage type:: AC
  • Terminal style:: fixed
  • Max. current at DC13 I (6 cycles/min):: 7.0 A
  • Max. current at AC15:: 5.0 A
  • Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
  • Application options:: Safety gate monitor, Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 4, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 2 with t/p
  • Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset, without detection of shorts across contacts
  • Product standard:: EN 60947-5-1
  • Terminal type:: Screw terminal
  • Number of instantaneous safety contacts:: 6
  • Number of auxiliary contacts:: 4
  • Stop category:: 0
  • Width dimension:: 90.0 mm
  • Height dimension:: 87.0 mm
  • Depth dimension:: 121.0 mm
  • Gross weight:: 730 g
  • Net weight:: 720 g
  • Ambient temperature:: -10 - 55 C
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PNOZX10110-120VAC6N-O4N-C3LED-774703 . Santa Clara Systems carries 2,805 items from Pilz.
  • Plug-In Terminals Of Screw Type Monitoring E-Stop
  • Safety Gates.
  • Safety Relay (Standalone) Inputs: 1-/2-Channel Wiring With/Without Detection Of Shorts Across Contacts Outputs: 6 N/O
  • 4 N/C. Automatic/Monitored Start Ub 110 - 120 V Ac
  • Width: 90 Mm
