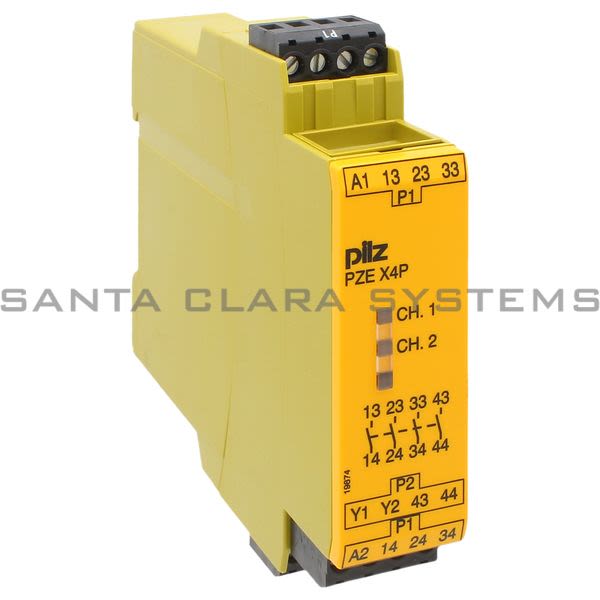

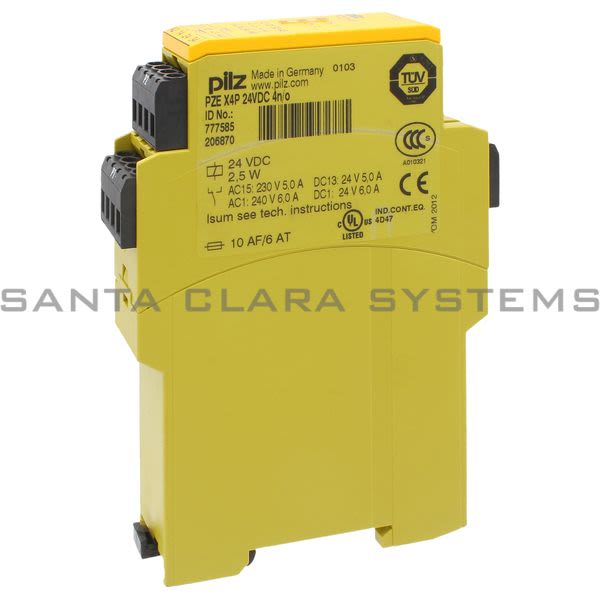

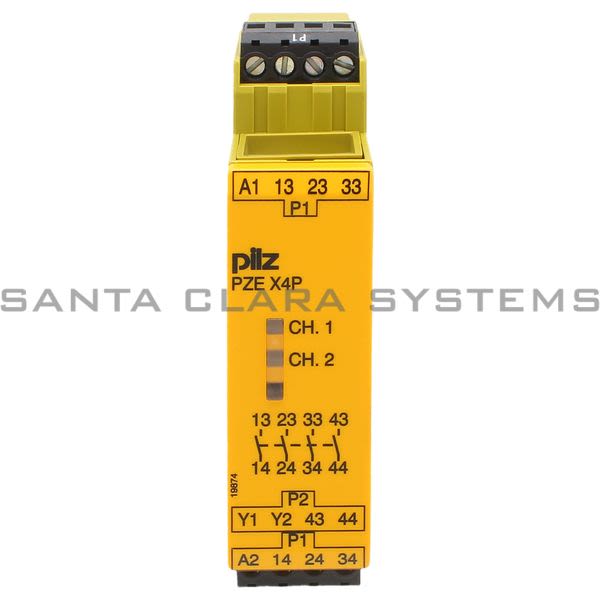

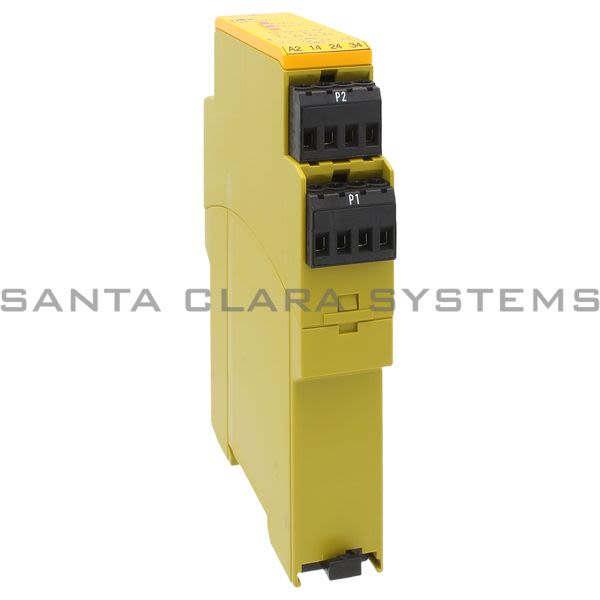

- Description: Safety Relay
- Gross weight:: 180 g
- Net weight:: 170 g
- Ambient temperature:: -10 - 55 °C
- Height dimension:: 94.0 mm
- Width dimension:: 22.5 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 24,0
- Supply voltage type:: DC
- Terminal type:: Screw terminal
- Terminal style:: Plug-in
- Application options:: Instantaneous contact expansion
- Approvals:: CE, cULus Listed, EAC (Eurasian), TÜV, CCC
- Operating modes:: Single-channel, without detection of shorts across contacts
- Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Number of instantaneous safety contacts:: 4
- Max. current at DC13 I (6 cycles/min):: 5.0 A
- Voltage at AC15:: 230 V
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PZEX4P24VDC4N-O-777585 . Santa Clara Systems carries 339 items from Pilz.
- Plug-In Terminals Of Screw Type. Contact Block For Contact Expansion In Connection With Safety-Related Control Components.
- Safety Relay (Standalone) Inputs: Single-Channel Wiring Outputs: 4 N/o. Ub 24 V Dc
- Width: 22.5 Mm
