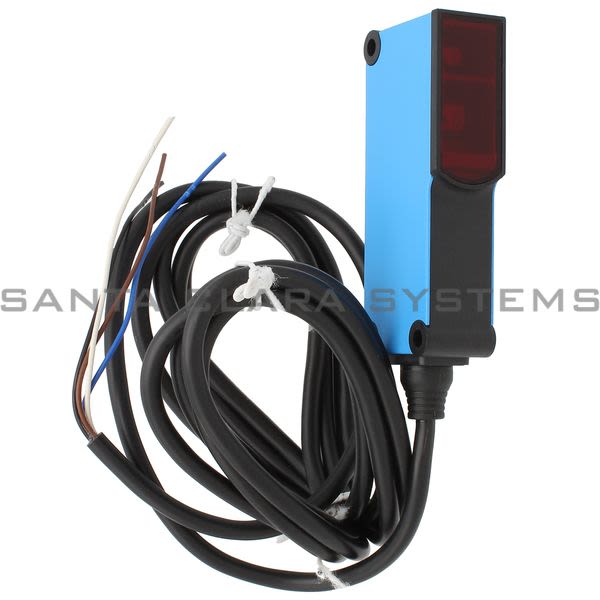

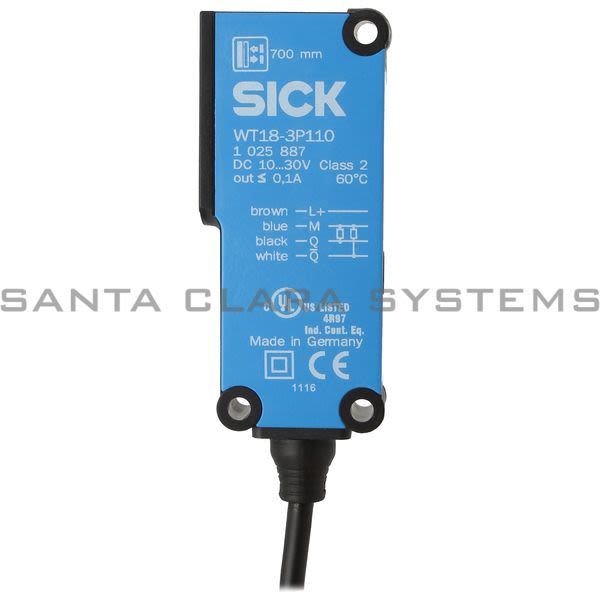

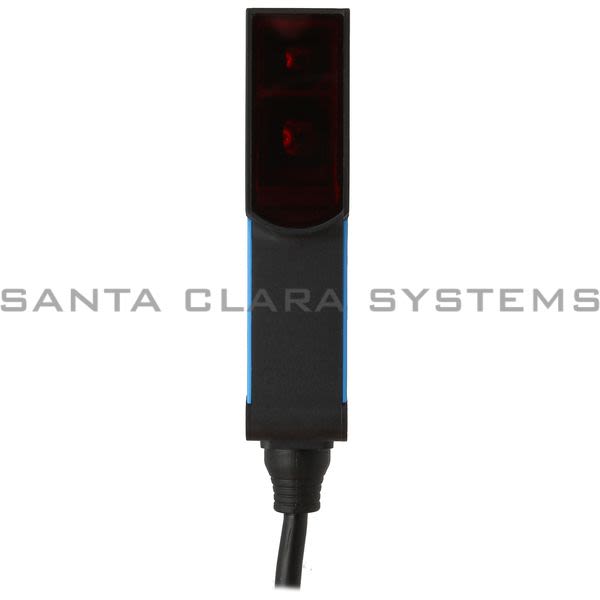

- Description: Proximity Sensor | 1025887

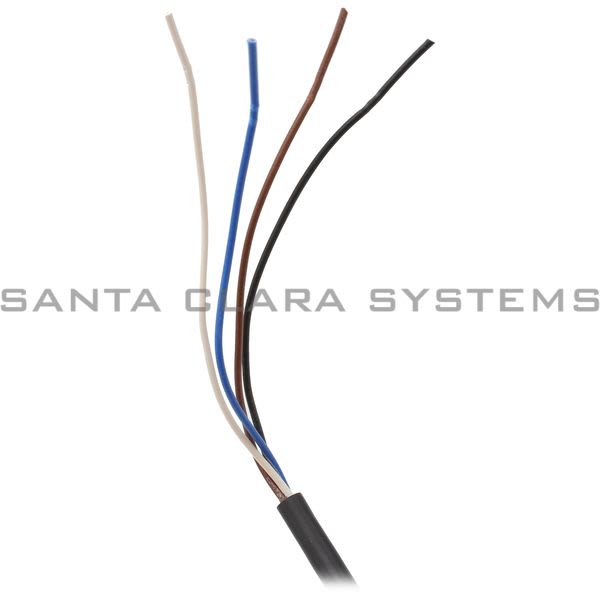

- Connection Type: Cable, 4-wire, 2 m
- Light Source: LED
- Weight: 120 g
- Sensing Range: 50 mm ... 700 mm
- Output Function: Complementary
- Supply Voltage: 10 V DC ... 30 V DC
- Housing Material: Plastic, ABS
- Sensor/ Detection Principle: Photoelectric Proximity Sensor, Background Suppression
- Dimensions (W x H x D): 17.6 mm x 75.5 mm x 33.5 mm
- Housing Design (Light Emission): Rectangular
- Type of Light: Infrared Light
- Light Spot Size (Distance): 20 mm (400 mm)
- Wave Length: 870 nm
- Adjustment: Potentiometer, 4 Turns
- Switching Output: PNP
- Switching Mode: Light/Dark Switching
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on WT18-3P110 . Santa Clara Systems carries 4,517 items from Sick.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
