9001-KA5

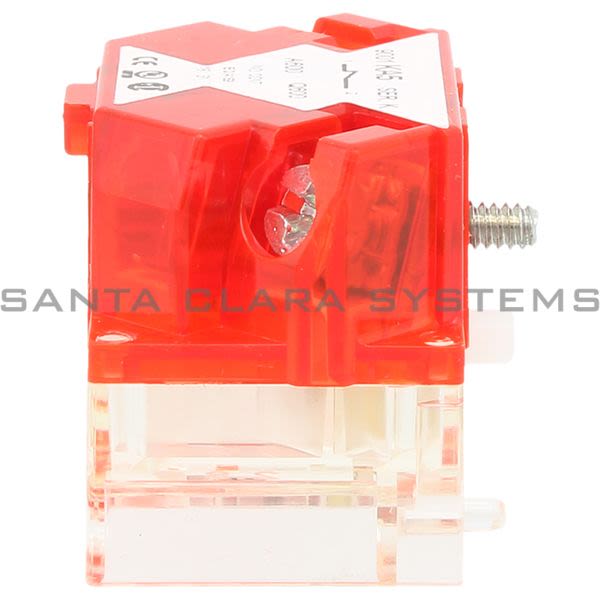

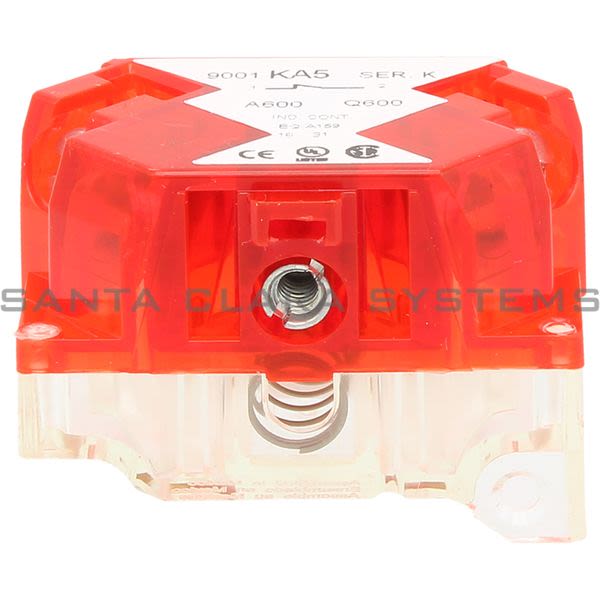

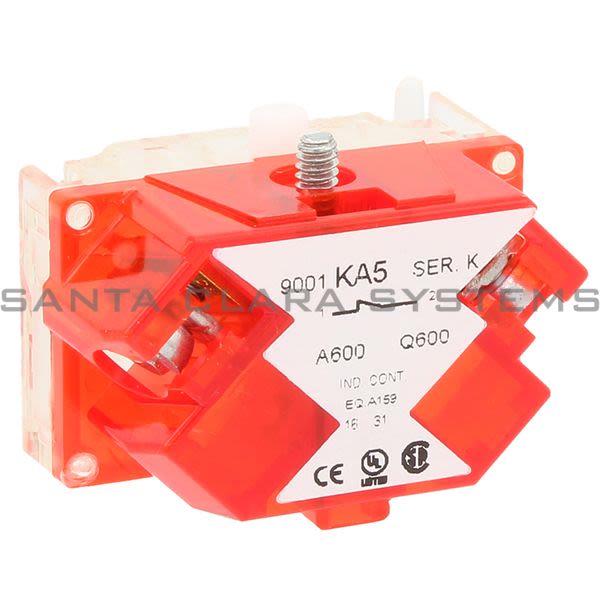

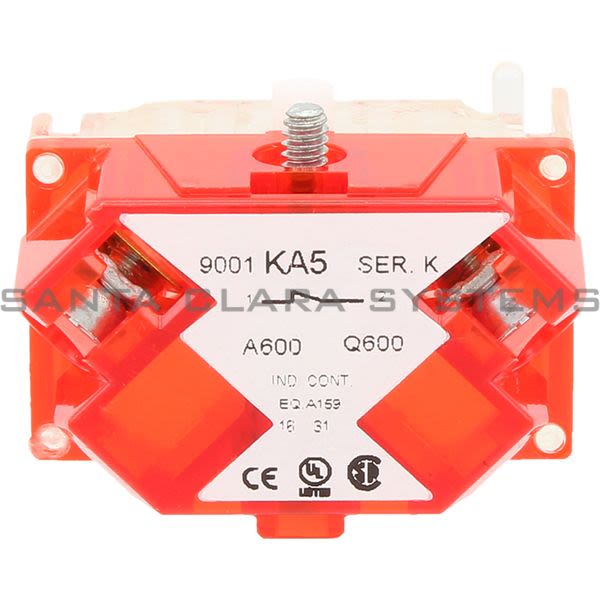

Square D - Pushbutton Contact 88010

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pushbutton Contact 88010
Product or component type: Contact block with protected terminals
Device short name: 9001K
terminals description ISO n1: (3-4)NO_CL
Product weight: 0.023 kg
Contacts type and composition: 1 NC
Contact operation: Late-break
Positive opening: With conforming to IEC 60947-5-2
Connections - terminals: Screw clamp terminals (1 x 0.22...2 x 2.5 mm) conforming to IEC 60947-1
Tightening torque: 0.8 N.m conforming to IEC 60947-1
Shape of screw head: Cross slotted head

Contacts material: Silver alloy contacts
Short-circuit protection: 10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current: 10:00 AM
[Ui] rated insulation voltage: 250 V (degree of pollution: 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
Protective treatment: TC
Ambient air temperature for storage: -40...70 C
Ambient air temperature for operation: -25...70 C
Electrical shock protection class: Class II conforming to IEC 61140
IP degree of protection: IP20 conforming to IEC 60529
Product certifications: "UL 508

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9001-KA5 . Santa Clara Systems carries 5,463 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
