9001-KP1G9

Square D - Pilot Light Green

Current response time:

14 Minutes 23 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

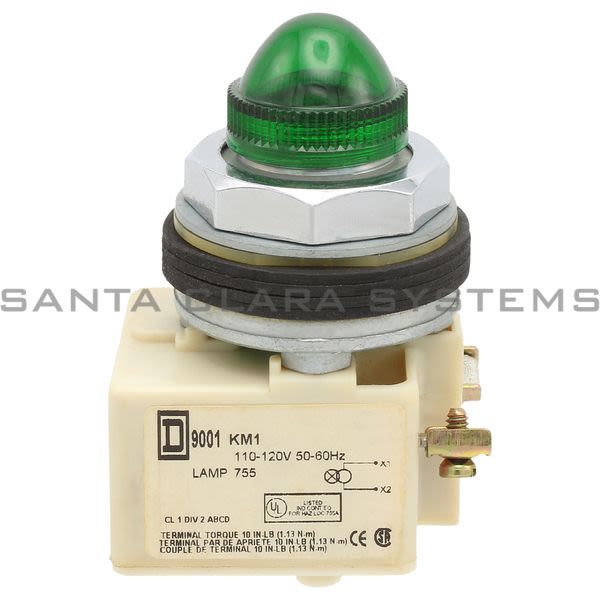

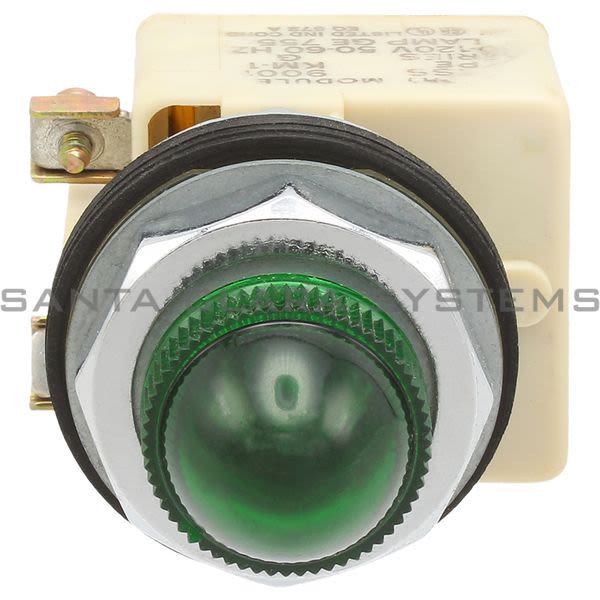

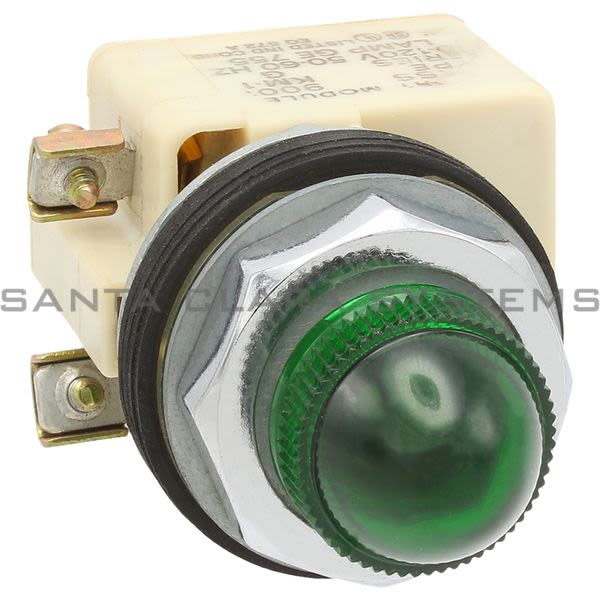

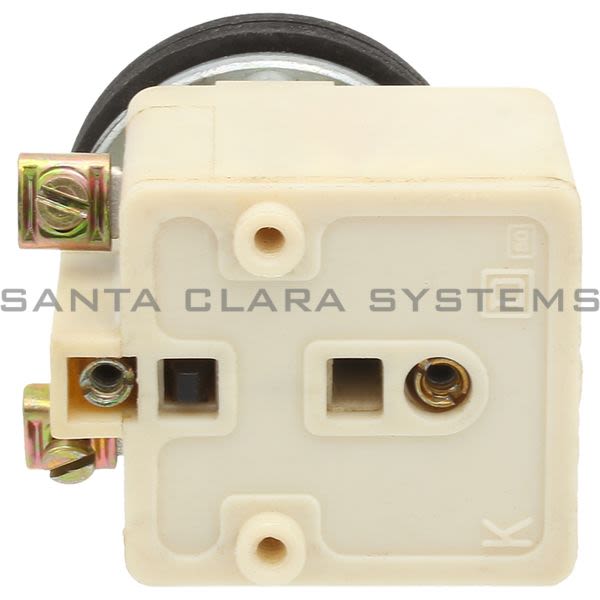

Description: Pilot Light Green
Bezel material: Chromium plated metal
Product or component type: Pilot light
Device short name: 9001K
Mounting diameter: 30 mm
Shape of signaling unit head: Round
Lens type: Domed (plastic)
Cap/operator or lens colour: Green
Light source: Incandescent
Bulb base: BA 9s
Light block supply: Via integral transformer (secondary voltage = 6 V)

Connections - terminals: Screw clamp terminals (1 x 0.22...2 x 1.5 mm) conforming to IEC 60947-1
Tightening torque: 0.8 N.m conforming to IEC 60947-1
Shape of screw head: Cross slotted
Operating position: Any position
[Ui] rated insulation voltage: 250 V (degree of pollution: 2) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to IEC 60947-1
Short-circuit protection: 10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current: 10:00 AM
CAD overall width: 54 mm
CAD overall height: 70 mm
CAD overall depth: 42 mm

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9001-KP1G9 . Santa Clara Systems carries 5,463 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
