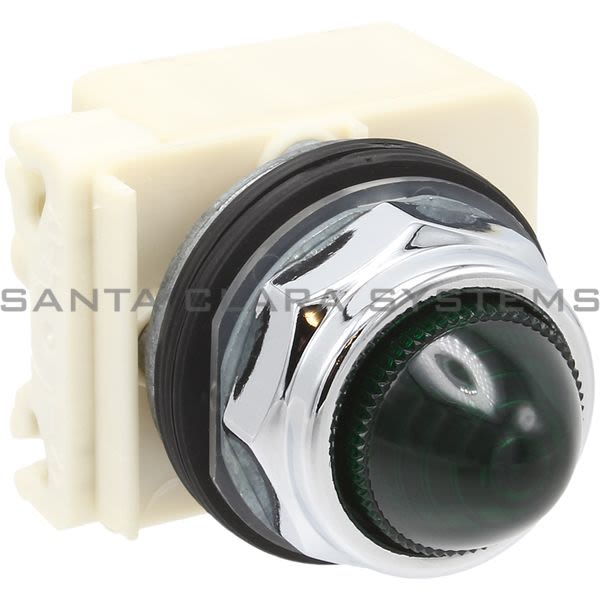

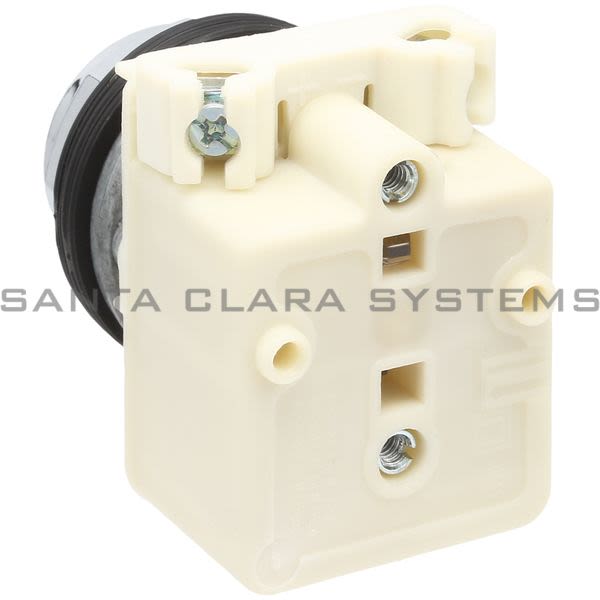

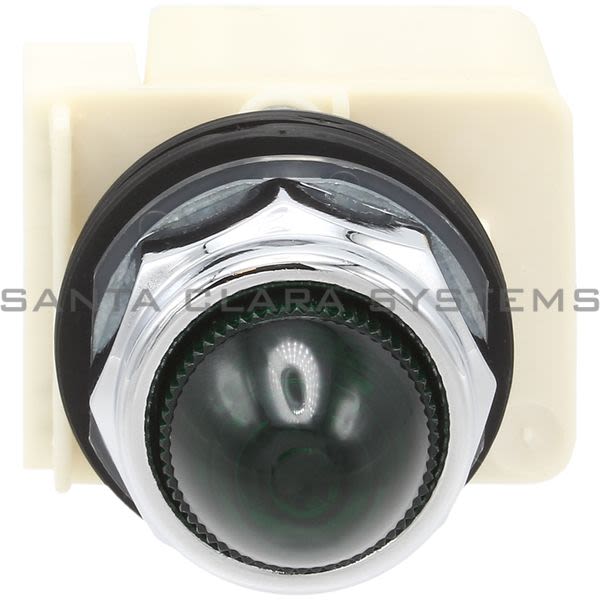

9001-KP38LGG9

Square D - Pilot Light

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pilot Light
Bezel material: Chromium plated metal
Range of product: Harmony 9001K
Product or component type: Pilot light
Device short name: 9001K
Mounting diameter: 30 mm
Shape of signaling unit head: Round
Lens type: Domed plastic
Cap/operator or lens colour: Green
Light source: Green LED
Bulb base: BA 9s
Light block supply: Direct 120 V AC/DC
Connections - terminals: Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1
Tightening torque: 0.8 N.m conforming to IEC 60947-1
Shape of screw head: Cross slotted
Operating position: Any position
[Ui] rated insulation voltage: 250 V (pollution degree 2) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage: IEC 60947-1 2.5 kV
Short-circuit protection: 10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current: 0.416666666666667
CAD overall width: 54 mm
CAD overall height: 70 mm
CAD overall depth: 42 mm

[Us] rated supply voltage: 120 V AC/DC
Net weight: 0.134 kg
Device presentation: Complete product
Standards: EN/IEC 60947-5-1
Product certifications: NEMA
Protective treatment: TC
Ambient air temperature for storage: -40…70 °C
Ambient air temperature for operation: -25…70 °C
Vibration resistance: 7 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
Shock resistance: 50 gn conforming to IEC 60068-2-27
Overvoltage category: Class II conforming to IEC 61140
IP degree of protection: IP66 conforming to IEC 60529
NEMA degree of protection: NEMA 1
Sustainable offer status: Green Premium product
REACh Regulation: REACh Declaration
EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free: Yes
RoHS exemption information: Yes
China RoHS Regulation: China RoHS declaration
Environmental Disclosure: Product Environmental Profile
Circularity Profile: No need of specific recycling operations
WEEE: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
