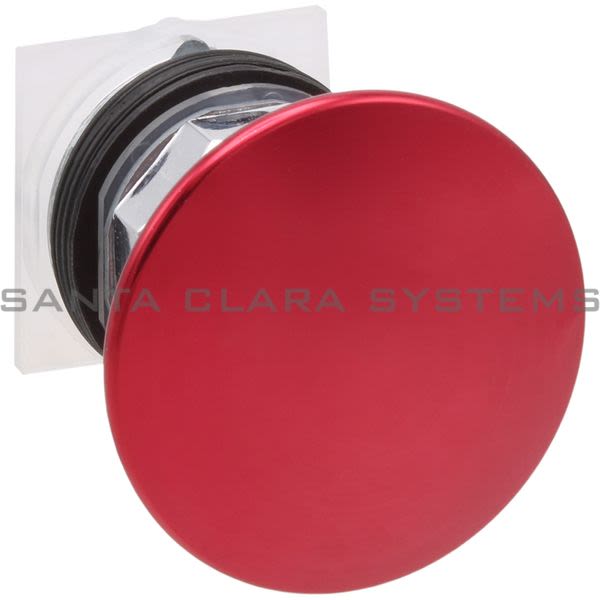

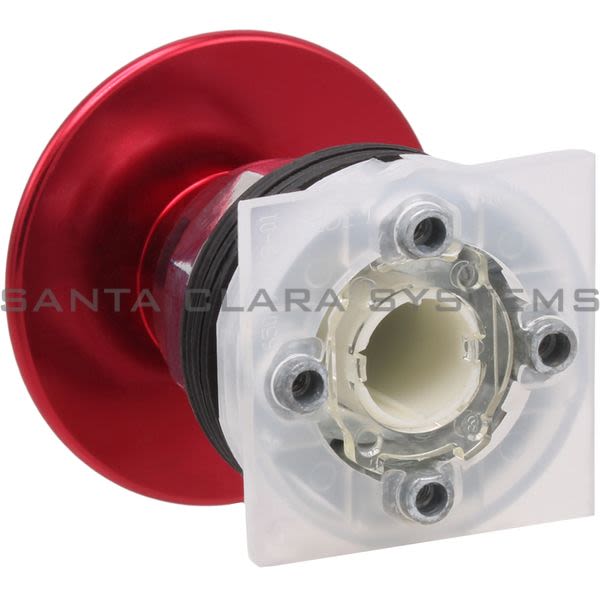

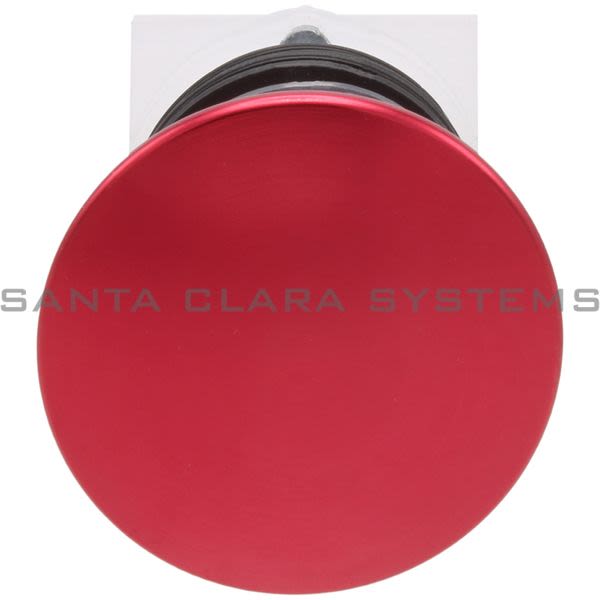

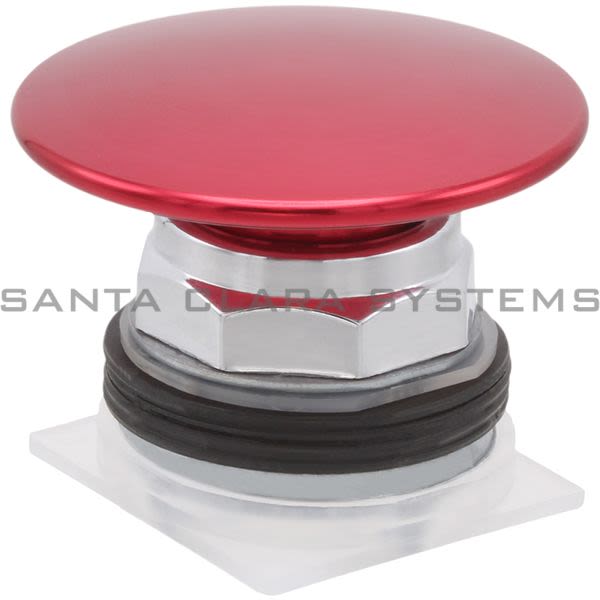

• Square D 9001-KR9RM95 Barcode

9001-KR9RM95

Get a Quote

Current response time:

14 Minutes 7 Seconds
  • Description: Pushbutton
  • Bezel material: Chromium plated metal
  • Product or component type: Mushroom head push-button
  • Product compatibility: Contact block 9001KA
  • Device short name: 9001K
  • Type of operator: Push-pull
  • Operator profile: Red mushroom 60 mm unmarked
  • Mounting diameter: 30 mm
  • CAD overall width: 60 mm
  • CAD overall height: 60 mm
  • CAD overall depth: 74 mm
  • Product weight: 0.15 kg
  • Operating position: Any position
  • Shape of signaling unit head: Round
  • Head material: Metal
  • Operator additional information: Screw-in with set screw security
  • Operator position information: 2 positions
  • Contacts type and composition: Without contact block
  • Mechanical durability: 5000000 cycles
  • Device presentation: Basic element
  • Protective treatment: TC
  • Ambient air temperature for storage: -40...70 C
  • Ambient air temperature for operation: -25...70 C
  • Overvoltage category: Class II conforming to IEC 61140
  • IP degree of protection: IP66 conforming to IEC 60529
  • Product certifications: "NEMA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9001-KR9RM95 . Santa Clara Systems carries 5,458 items from Square D.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
