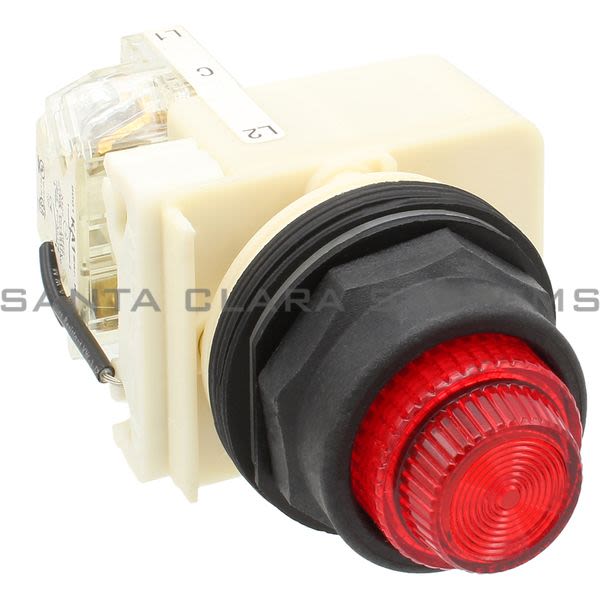

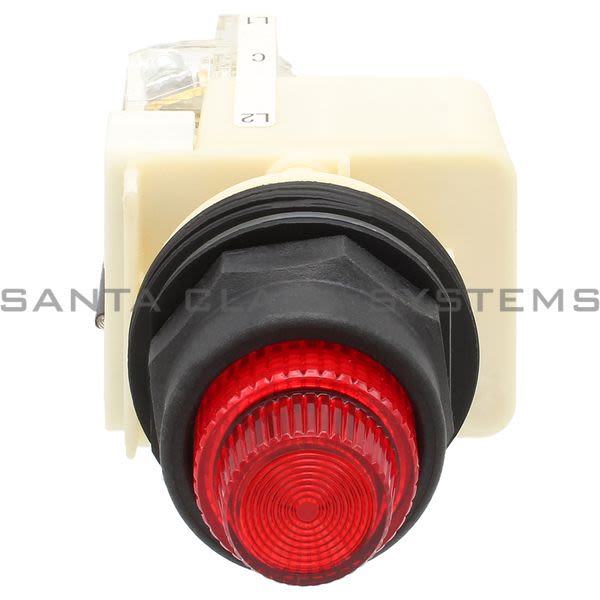

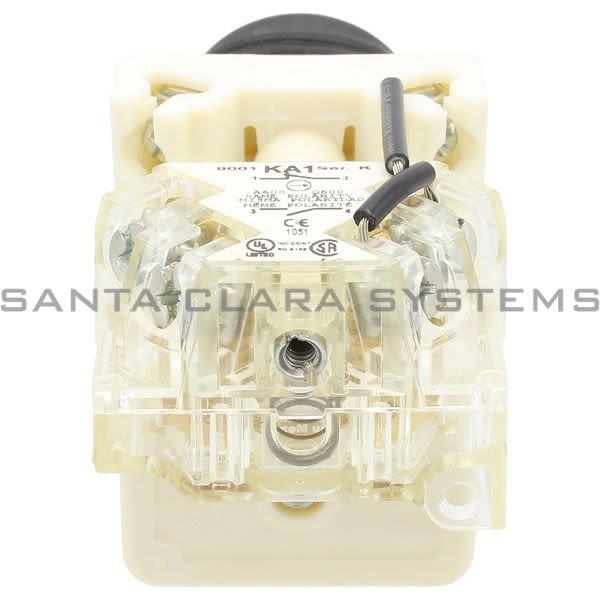

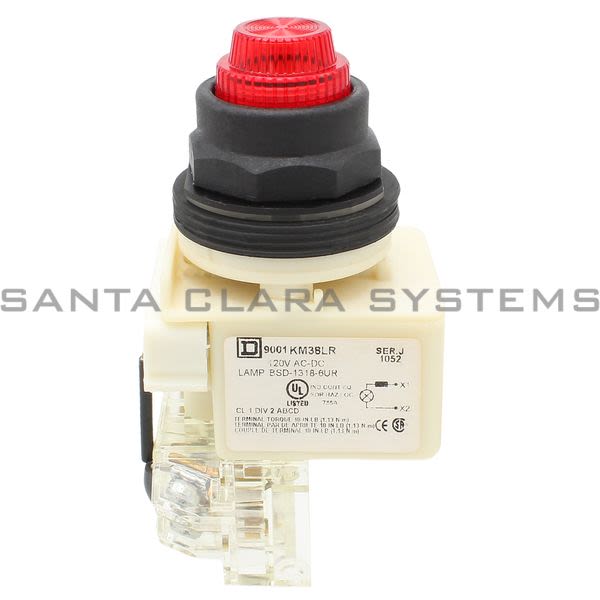

9001-SKT38LRR31

Square D - Pilot Light

Product Summary:

Bezel material: Plastic
Product or component type: Illuminated push to test push-button
Device short name: 9001SK
Type of operator: Spring return
Operator profile: Red projecting unmarked

Current response time:

6 Minutes 6 Seconds

*Santa Clara Systems is not a Square D Authorized Distributor.

Description: Pilot Light
Bezel material: Plastic
Product or component type: Illuminated push to test push-button
Device short name: 9001SK
Type of operator: Spring return
Operator profile: Red projecting unmarked
Mounting diameter: 30 mm
Shape of signaling unit head: Octagonal
Light source: LED
Bulb base: BA 9s
Light block supply: Direct
[Us] rated supply voltage: 120 V AC/DC

Connections - terminals: Screw clamp terminals (1 x 0.22...2 x 1.5 mm�) conforming to EN/IEC 60947-1
Tightening torque: 0.8 N.m conforming to EN/IEC 60947-1
Shape of screw head: Cross slotted
Mechanical durability: 5000000 cycles
Operating position: Any position
[Ie] rated operational current: 0.55 A 125 V DC-13 A600-Q600 NEMA
[Ui] rated insulation voltage: 250 V (degree of pollution: 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV conforming to EN/IEC 60947-1
Contacts material: Silver alloy contacts
Positive opening: Without
Short-circuit protection: 10 A cartridge fuse conforming to EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10:00 AM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 9001-SKT38LRR31 . Santa Clara Systems carries 5,812 items from Square D.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
