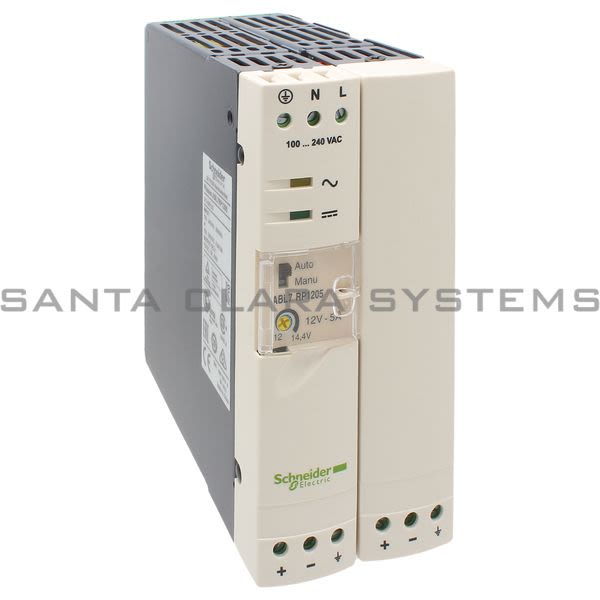

• Telemecanique ABL7RP1205 regulated SMPS - 1 or 2-phase - 100.240 V AC- 12 V - 5 A Product Image

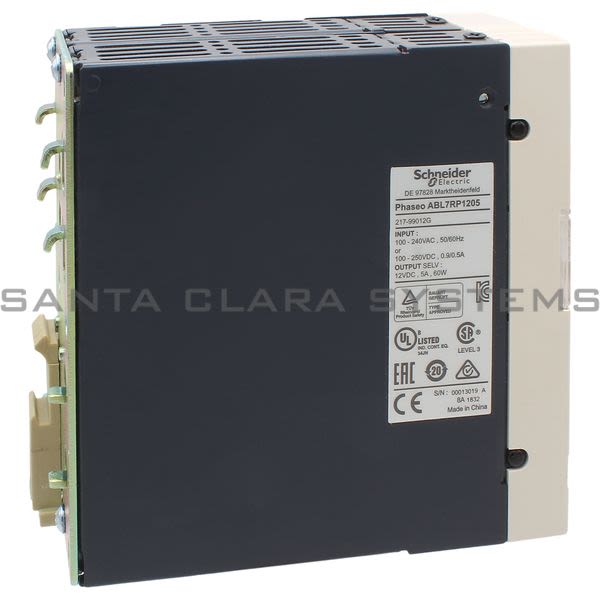

  • Telemecanique ABL7RP1205 regulated SMPS - 1 or 2-phase - 100.240 V AC- 12 V - 5 A Product Image

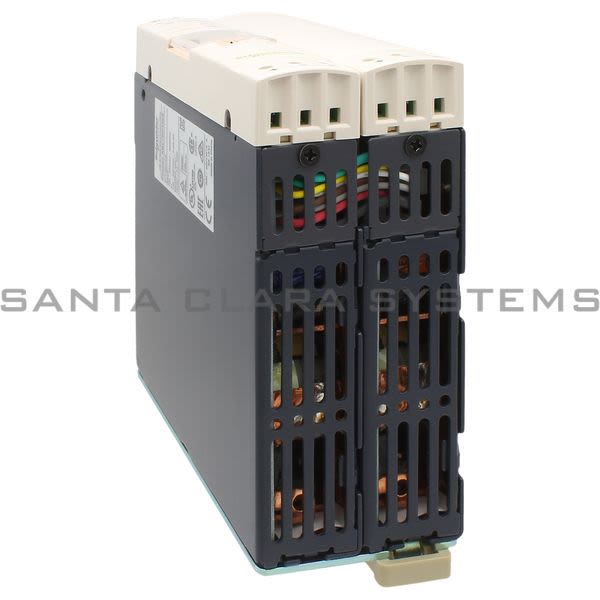

  • Telemecanique ABL7RP1205 regulated SMPS - 1 or 2-phase - 100.240 V AC- 12 V - 5 A Product Image

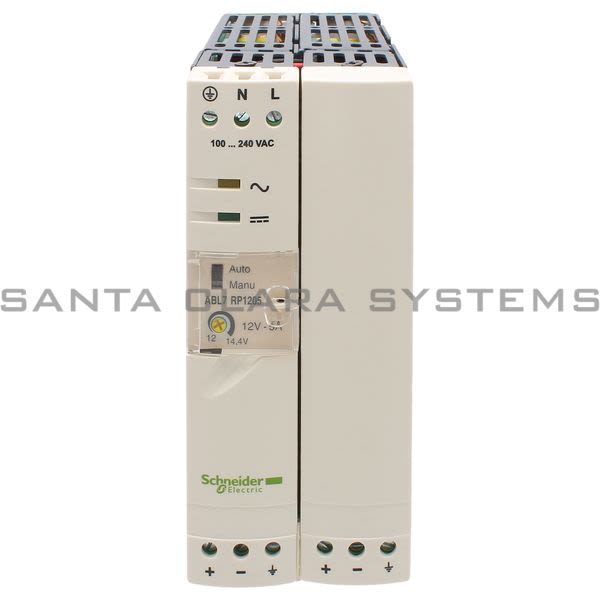

  • Telemecanique ABL7RP1205 regulated SMPS - 1 or 2-phase - 100.240 V AC- 12 V - 5 A Product Image
  • Telemecanique ABL7RP1205 Barcode

ABL7RP1205

Product Summary:

  • Product weight: 2.2 lb(US) (1 kg)
  • Range of product: Phaseo
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Standards: UL 508, CSA C22.2 No 60950-1
  • Width: 2.13 in (54 mm)
Get a Quote

Current response time:

19 Minutes 1 Second
  • Description: regulated SMPS - 1 or 2-phase - 100.240 V AC- 12 V - 5 A
  • Product weight: 2.2 lb(US) (1 kg)
  • Range of product: Phaseo
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Standards: UL 508, CSA C22.2 No 60950-1
  • Width: 2.13 in (54 mm)
  • Height: 4.72 in (120 mm)
  • Depth: 4.72 in (120 mm)
  • Operating altitude: 6561.68 ft. (2000 m)
  • Connections - terminals: Screw type terminals input connection, connection capacity: 2 x 0.14...2 x 2.5 mm AWG 26...AWG 14, Screw type terminals input ground connection, connection capacity: 1 x 0.14...1 x 2.5 mm AWG 26...AWG 14, Screw type terminals output connection, connection capacity: 2 x 0.14...2 x 2.5 mm AWG 26...AWG 14, Screw type terminals output ground connection, connection capacity: 1 x 0.14...1 x 2.5 mm AWG 26...AWG 14
  • Mounting support: 35 x 15 mm symmetrical DIN rail, 75 x 7.5 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail
  • Overvoltage category: Class I conforming to VDE 0106-1
  • Relative humidity: 0...95 % without condensation or dripping water
  • Input voltage: 100...240 V AC phase to phase, terminal(s): L1-L2, 100...240 V AC single phase, terminal(s): N-L1, 110...220 V DC
  • Input voltage limits: 100...250 V, 85...264 V
  • Product certifications: EAC, RCM, TUV 60950-1, KC
  • Product or component type: Power supply
  • Network frequency: 47...63 Hz
  • Power supply type: Regulated switch mode
  • Inrush current: <= 30 A
  • Environmental characteristic: EMC conforming to EN 50081-1, EMC conforming to EN 50082-2, EMC conforming to EN/IEC 61000-6-2, Safety conforming to EN/IEC 60950, Safety conforming to IEC 61496-1-2, Safety conforming to SELV
  • Cos phi: 0.98
  • Output voltage: 12 V DC
  • Efficiency: 85%
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • rated power in W: 60 W
  • Output voltage limits: 100...120 % adjustable
  • Input protection type: Integrated fuse (not interchangeable)
  • power dissipation in W: 10.6 W
  • Power supply output current: 5:00 AM
  • Current consumption: 0.4 A at 240 V, 0.8 A at 100 V
  • Dielectric strength: Between input and ground, Between output and ground, Between input and output, Between outputs
  • Output protection type: Against overload, protection technology: 1.1 x In, Against overvoltage, protection technology: tripping if U > 1.5 x Un, Against short-circuits, protection technology: manual or automatic reset, Against undervoltage, protection technology: tripping if U < 0.8 x Un
  • Line and load regulation: +/- 3 %
  • Ambient air temperature for operation: 32...122 F (0...50 C) without, 122...140 F (50...60 C) with
  • Holding time: >= 20 ms at 100 V, >= 20 ms at 240 V
  • Marking: CE
  • Operating position: Vertical
  • Output coupling: Series, Parallel
  • Name of test: Conducted/radiated emissions conforming to EN 55011, Conducted/radiated emissions conforming to EN 55022 Class B, Electrostatic discharges conforming to EN/IEC 61000-4-2, Emission conforming to EN 50081-1, Induced electromagnetic field conforming to EN/IEC 61000-4-6, Primary outage conforming to IEC 61000-4-11, Radiated electromagnetic field conforming to EN/IEC 61000-4-3, Rapid transient conforming to IEC 61000-4-4, Surge conforming to EN/IEC 61000-4-5
  • status LED: 1 LED green output voltage, 1 LED orange input voltage
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ABL7RP1205 . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Regulated Smps - 1 Or 2-Phase - 100.240 V Ac- 12 V - 5 A
