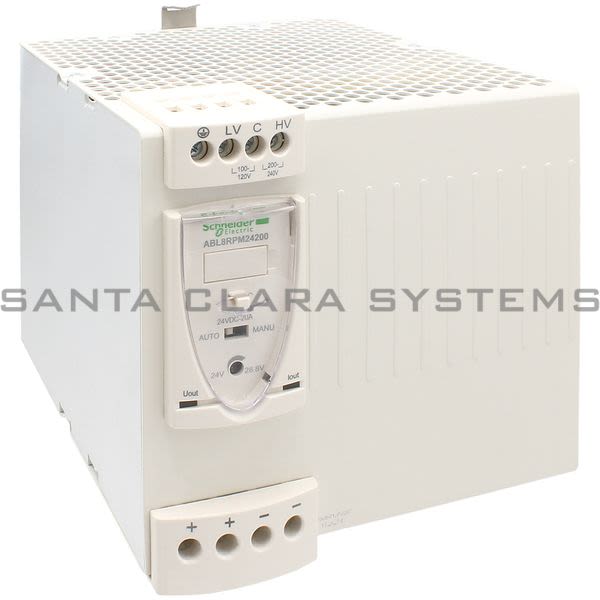

• Telemecanique ABL8 RPM24200 Regulated SMPS Product Image

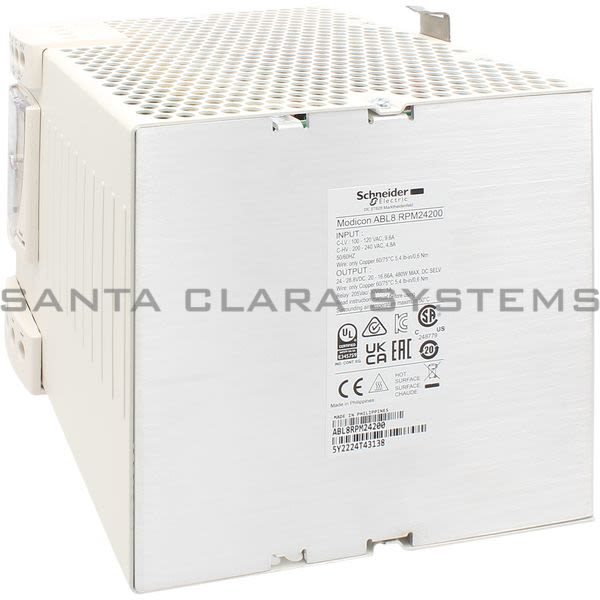

  • Telemecanique ABL8 RPM24200 Regulated SMPS Product Image

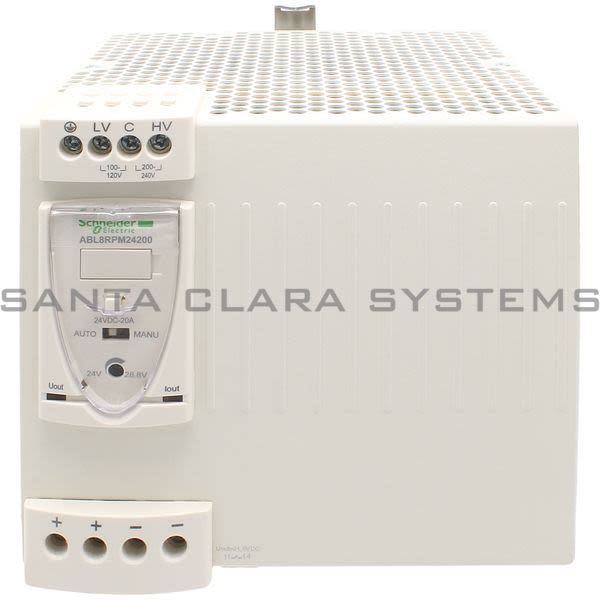

  • Telemecanique ABL8 RPM24200 Regulated SMPS Product Image

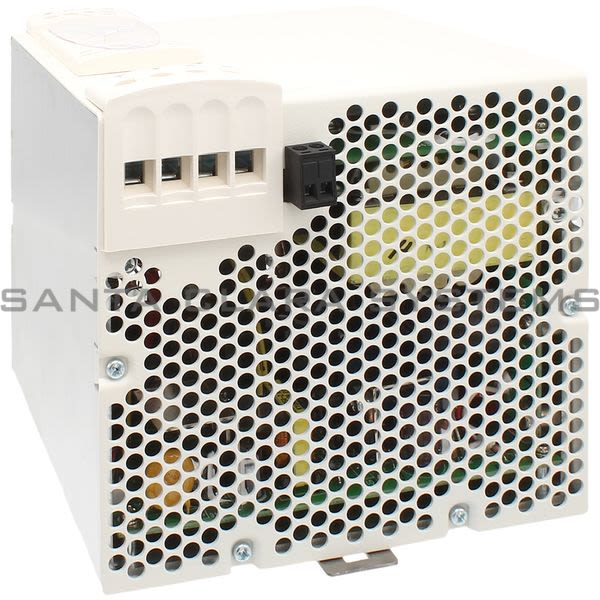

  • Telemecanique ABL8 RPM24200 Regulated SMPS Product Image
  • Telemecanique ABL8 RPM24200 Barcode

ABL8RPM24200

Product Summary:

  • Range of product: Phaseo
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Standards: CSA C22.2 No 60950-1
  • Width: 146 mm
  • Height: 125 mm
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Regulated SMPS
  • Range of product: Phaseo
  • IP degree of protection: IP20 conforming to EN/IEC 60529
  • Standards: CSA C22.2 No 60950-1
  • Width: 146 mm
  • Height: 125 mm
  • Depth: 145 mm
  • Operating altitude: 2000 m
  • Connections - terminals: For diagnostic relay: removable screw terminal block, connection capacity: 2 x 2.5 mm
  • Mounting support: 35 x 7.5 mm symmetrical DIN rail
  • Overvoltage category: Class I conforming to VDE 0106-1
  • Relative humidity: 090 % during operation
  • Input voltage: 100...120 V AC single phase, terminal(s): N-L1
  • Product or component type: Power supply
  • Power supply type: Regulated switch mode
  • Output voltage: 24 V DC
  • rated power in W: 480 W
  • Provided equipment: Power factor correction filter conforming to IEC 61000-3-2
  • Power supply output current: 20 A
  • Output protection type: Against overload, protection technology: manual or automatic reset
  • Ambient air temperature for operation: 5060 C (with derating factor)
  • Input voltage limits: 85...132 V
  • Network frequency: 47...63 Hz
  • Inrush current: 30 A 2 ms
  • Cos phi: 0.68 at 240 V
  • Efficiency: 0.88
  • Output voltage limits: 24...28.8 V adjustable
  • power dissipation in W: 57.6 W
  • Line and load regulation: 1...3 %
  • Holding time: >= 120 ms at 400 V
  • Permissible temporary current boost: 1.5 x In (for 4 s)
  • Marking: CE
  • Operating position: Vertical
  • Output coupling: Series
  • Name of test: Electrostatic discharges conforming to EN/IEC 61000-4-2
  • status LED: 1 LED (green and red)output voltage:
  • Net weight: 1.6 kg
  • MTBF reliability: 717000 H at 100 V AC with UTE C80-810 calculation method
  • Product certifications: CCSAus
  • Environmental characteristic: EMC conforming to EN 61000-6-1
  • Ambient air temperature for storage: -4070 C
  • Dielectric strength: 2500 V between input and ground
  • Sustainable offer status: Green Premium product
  • REACh Regulation: REACh Declaration
  • EU RoHS Directive: Pro-active compliance (Product out of EU RoHS legal scope)
  • Mercury free: Yes
  • RoHS exemption information: Yes
  • China RoHS Regulation: China RoHS declaration
  • Environmental Disclosure: Product Environmental Profile
  • Circularity Profile: End of Life Information
