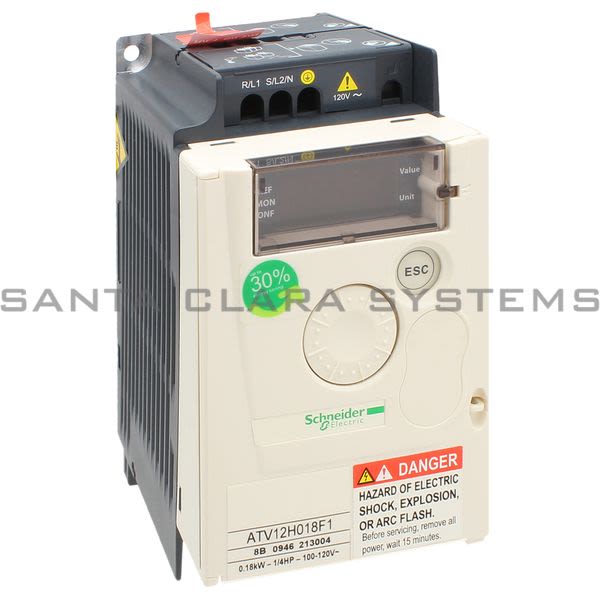

• Telemecanique ATV 12H018F1 variable speed drive ATV12 - 0.18kW - 0.25hp - 100..120V - 1ph Product Image

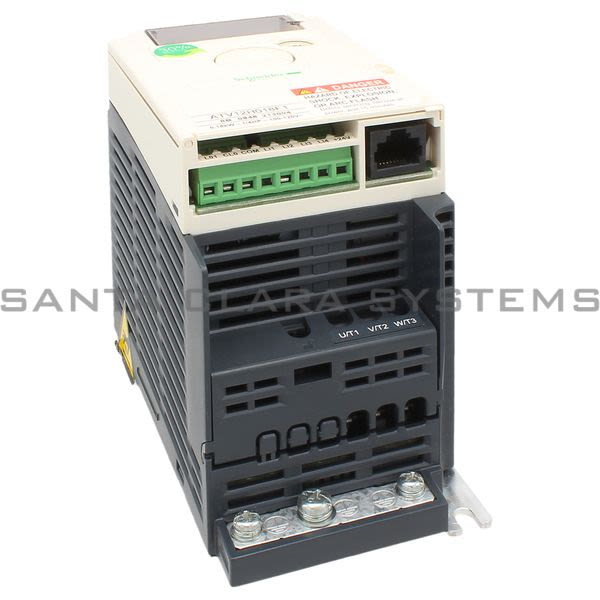

  • Telemecanique ATV 12H018F1 variable speed drive ATV12 - 0.18kW - 0.25hp - 100..120V - 1ph Product Image

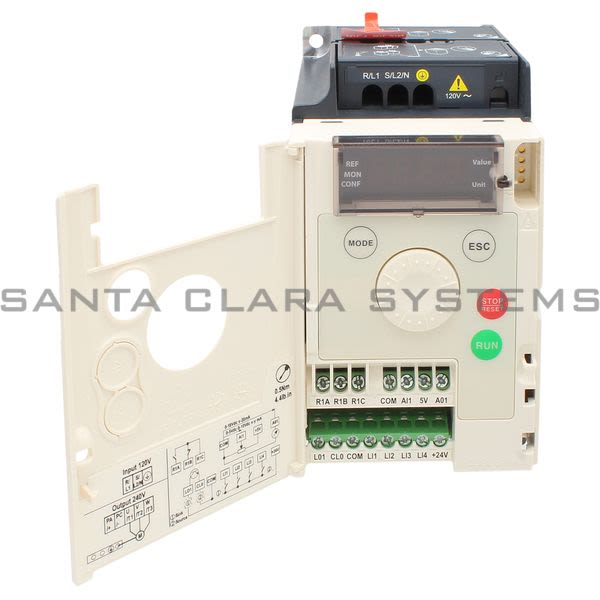

  • Telemecanique ATV 12H018F1 variable speed drive ATV12 - 0.18kW - 0.25hp - 100..120V - 1ph Product Image

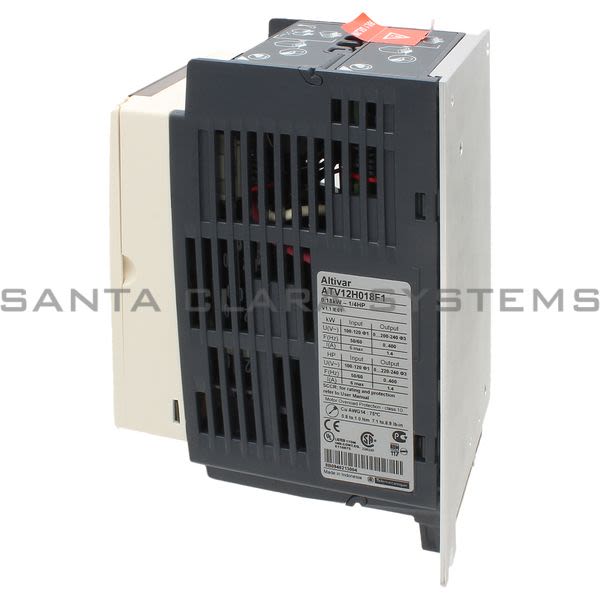

  • Telemecanique ATV 12H018F1 variable speed drive ATV12 - 0.18kW - 0.25hp - 100..120V - 1ph Product Image
  • Telemecanique ATV 12H018F1 Barcode

ATV12H018F1

Product Summary:

  • Product weight: 1.54 lb(US) (0.7 kg)
  • Range of product: Altivar 12
  • IP degree of protection: IP20 without blanking plate on upper part
  • Width: 2.83 in (72 mm)
  • Height: 5.63 in (143 mm)
Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: variable speed drive ATV12 - 0.18kW - 0.25hp - 100..120V - 1ph
  • Product weight: 1.54 lb(US) (0.7 kg)
  • Range of product: Altivar 12
  • IP degree of protection: IP20 without blanking plate on upper part
  • Width: 2.83 in (72 mm)
  • Height: 5.63 in (143 mm)
  • Depth: 4.02 in (102.2 mm)
  • Operating altitude: > 3280.84...6561.68 ft. (> 1000...2000 m) with current derating 1 % per 100 m, <= 3280.84 ft. (1000 m) without derating
  • Tightening torque: 7.08 lbf.in (0.8 N.m)
  • Vibration resistance: 1 gn EN/IEC 60068-2-6 13...200 Hz, 1.5 mm peak to peak EN/IEC 60068-2-6 3...13 Hz drive unmounted on symmetrical DIN rail
  • Shock resistance: 15 gn EN/IEC 60068-2-27 11 ms
  • Electrical connection: Terminal 3.5 mm AWG 12 L1, L2, L3, U, V, W, PA, PC
  • motor power kW: 0.18 kW
  • [Us] rated supply voltage: 100...120 V - 15...10 %
  • Relative humidity: 5...95 % without condensation IEC 60068-2-3, 5...95 % without dripping water IEC 60068-2-3
  • Protection type: Against input phase loss in three-phase, Thermal motor protection via the drive by continuous calculation of It, Line supply overvoltage, Line supply undervoltage, Overcurrent between output phases and earth, Overheating protection, Short-circuit between motor phases
  • Switching frequency: 2...16 kHz adjustable, 4...16 kHz with derating factor
  • Supply frequency: 50/60 Hz +/- 5 %
  • Electromagnetic compatibility: Radiated radio-frequency electromagnetic field immunity test EN/IEC 61000-4-3, Surge immunity test EN/IEC 61000-4-5, Electrical fast transient/burst immunity test EN/IEC 61000-4-4, Electrostatic discharge immunity test EN/IEC 61000-4-2, Immunity to conducted disturbances EN/IEC 61000-4-6, Voltage dips and interruptions immunity test EN/IEC 61000-4-11
  • Product or component type: Variable speed drive
  • Connector type: 1 RJ45 Modbus on front face
  • Electromagnetic emission: Radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable, Conducted emissions with additional EMC filter environment 1 category C1 EN/IEC 61800-3 4...12 kHz shielded motor cable, Conducted emissions with additional EMC filter environment 1 category C2 EN/IEC 61800-3 4...12 kHz shielded motor cable, Conducted emissions with additional EMC filter environment 2 category C3 EN/IEC 61800-3 4...12 kHz shielded motor cable
  • Product destination: Asynchronous motors
  • Physical interface: 2-wire RS 485 Modbus
  • Product certifications: GOST, CSA, C-Tick, UL, NOM
  • Product specific application: Simple machine
  • Transmission frame: RTU Modbus
  • Assembly style: On base plate
  • Transmission rate: 4800 bit/s, 9600 bit/s, 19200 bit/s, 38400 bit/s
  • Component name: ATV12
  • Number of addresses: 1...247 Modbus
  • Quantity per set: Set of 1
  • Communication service: Read holding registers (03) 29 words, Write single register (06) 29 words, Write multiple registers (16) 27 words, Read/write multiple registers (23) 4/4 words, Read device identification (43)
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • EMC filter: Without EMC filter
  • prospective line Isc: <= 1 kA
  • Ambient air temperature for operation: 14...104 F (-10...40 C) protective cover from the top of the drive removed, 104...140 F (40...60 C) with current derating 2.2 % per C
  • Built-in fan: Without
  • Continuous output current: 1.4 A 4 kHz
  • Phase: 1 phase
  • Maximum transient current: 2.1 A 60 s
  • Speed drive output frequency: 0.5...400 Hz
  • Nominal switching frequency: 4 kHz
  • Motor power hp: 0.25 hp
  • Communication port protocol: Modbus
  • Braking torque: Up to 70 % of nominal motor torque without braking resistor
  • Line current: 6 A 100 V, 5 A 120 V
  • Motor slip compensation: Preset in factory, Adjustable
  • Speed range: 1...20
  • Output voltage: 200...240 V 3 phases
  • Transient overtorque: 150...170 % of nominal motor torque depending on drive rating and type of motor
  • Asynchronous motor control profile: Voltage/frequency ratio (V/f), Quadratic voltage/frequency ratio, Sensorless flux vector control
  • Insulation: Electrical between power and control
  • Noise level: 0 dB
  • Supply: Internal supply for reference potentiometer 5 V DC 4.75...5.25 V 10 mA overload and short-circuit protection, Internal supply for logic inputs 24 V DC 20.4...28.8 V 100 mA overload and short-circuit protection
  • Analogue input number: 1
  • Analogue input type: Configurable voltage AI1 0...10 V 30 kOhm, Configurable voltage AI1 0...5 V 30 kOhm, Configurable current AI1 0...20 mA 250 Ohm
  • Discrete input number: 4
  • Discrete input type: Programmable LI1...LI4 24 V 18...30 V
  • Discrete input logic: Negative logic (sink) > 16 V < 10 V 3.5 kOhm, Positive logic (source) 0...< 5 V > 11 V
  • Sampling duration: 20 ms +/- 1 ms logic input, 10 ms analogue input
  • Linearity error: +/- 0.3 % of maximum value analogue input
  • Analogue output number: 1
  • Analogue output type: Software-configurable voltage AO1 0...10 V 470 Ohm 8 bits, Software-configurable current AO1 0...20 mA 800 Ohm 8 bits
  • Discrete output number: 2
  • Discrete output type: Logic output LO+, LO-, Protected relay output R1A, R1B, R1C 1 C/O
  • Minimum switching current: 5 mA 24 V DC logic relay
  • Maximum switching current: 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay, 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay, 3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay, 4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay
  • Acceleration and deceleration ramps: U, Linear from 0 to 999.9 s, S
  • Braking to standstill: By DC injection <= 30 s
  • Frequency resolution: 0.1 Hz display unit, Converter A/D, 10 bits analog input
  • Time constant: 20 ms +/- 1 ms for reference change
  • Marking: CE
  • Operating position: Vertical +/- 10 degree
  • Specific application: Commercial equipment
  • Discrete and process manufacturing: Commercial equipment : mixer, Commercial equipment : other application, Textile : ironing
  • Power range: 0...0.5 kW at 100...120 V 1 phase
  • Motor starter type: Variable speed drive
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ATV12H018F1 . Santa Clara Systems carries 10,141 items from Telemecanique.
  • Variable Speed Drive Atv12 - 0.18Kw - 0.25Hp - 100..120V - 1Ph
