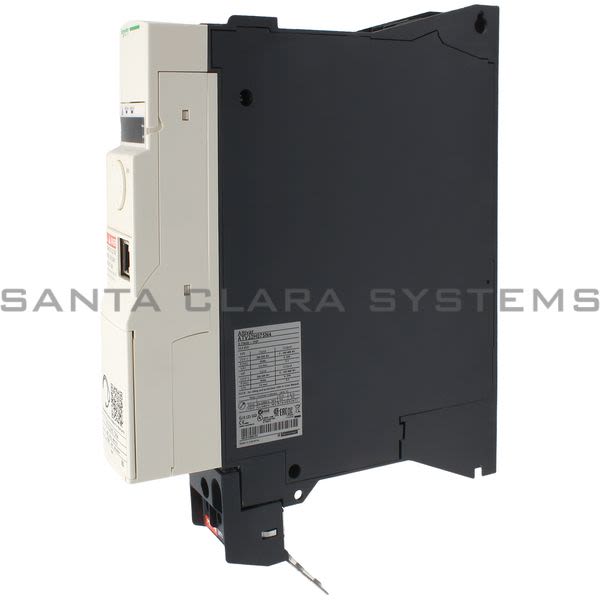

• Telemecanique ATV32H075N4 variable speed drive ATV32 - 0.75 kw - 400 V - 3 phase - with heat sink Product Image

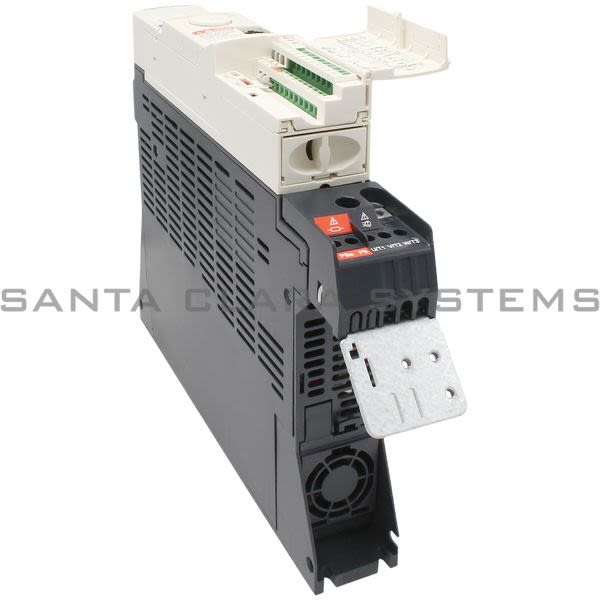

  • Telemecanique ATV32H075N4 variable speed drive ATV32 - 0.75 kw - 400 V - 3 phase - with heat sink Product Image

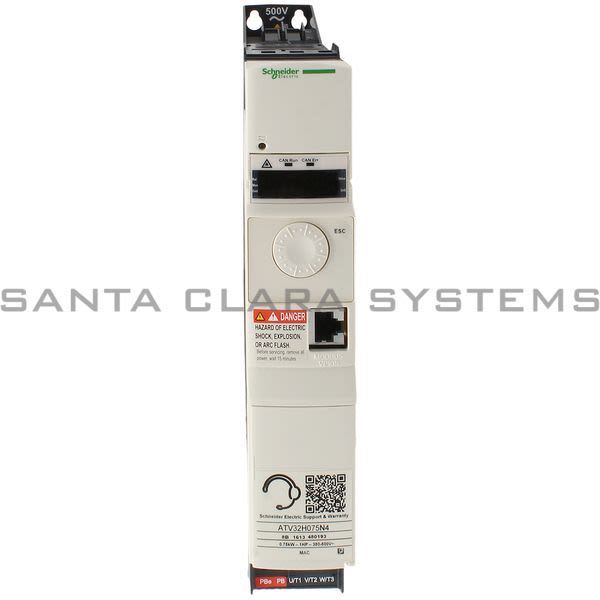

  • Telemecanique ATV32H075N4 variable speed drive ATV32 - 0.75 kw - 400 V - 3 phase - with heat sink Product Image

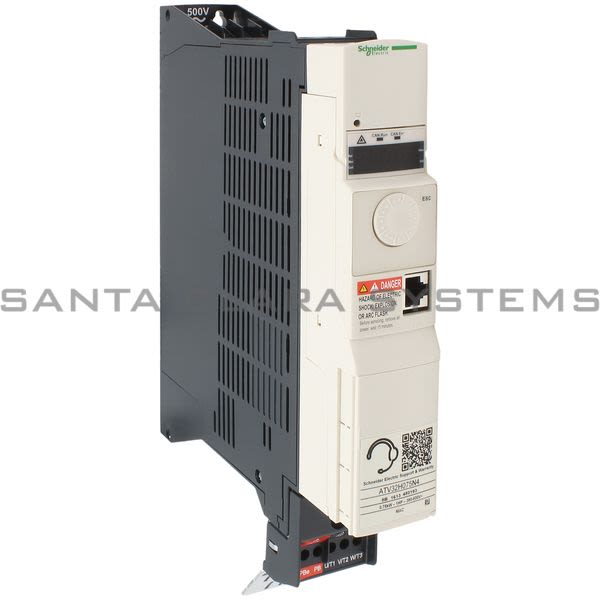

  • Telemecanique ATV32H075N4 variable speed drive ATV32 - 0.75 kw - 400 V - 3 phase - with heat sink Product Image
  • Telemecanique ATV32H075N4 Barcode

ATV32H075N4

Product Summary:

  • Product weight: 5.29 lb(US) (2.4 kg)
  • Range of product: Altivar 32
  • IP degree of protection: IP20 EN/IEC 61800-5-1
  • Width: 1.77 in (45 mm)
  • Height: 12.8 in (325 mm)
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: variable speed drive ATV32 - 0.75 kw - 400 V - 3 phase - with heat sink
  • Product weight: 5.29 lb(US) (2.4 kg)
  • Range of product: Altivar 32
  • IP degree of protection: IP20 EN/IEC 61800-5-1
  • Standards: EN/IEC 61800-5-1, EN 61800-3 environments 2 category C2, EN/IEC 61800-3, EN 55011 class A group 1, EN 61800-3 environments 1 category C2
  • Width: 1.77 in (45 mm)
  • Height: 12.8 in (325 mm)
  • Depth: 9.65 in (245 mm)
  • Operating altitude: <= 3280.84 ft. (1000 m) without derating, 3280.84...6561.68 ft. (1000...2000 m) with current derating 1 % per 100 m
  • Tightening torque: 4.42 lbf.in (0.5 N.m) 4.4 lb/ft. control, 6.19 lbf.in (0.7 N.m) 7.1 lb/ft. motor/braking resistor, 5.31 lbf.in (0.6 N.m) 5.3 lb/ft. power supply
  • Vibration resistance: 1 gn 13...200 Hz EN/IEC 60068-2-6, 1.5 mm peak to peak 3...13 Hz EN/IEC 60068-2-6
  • Shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
  • Electrical connection: Screw terminal 0.5...1.5 mm AWG 18...AWG 14 control, Removable screw terminals 1.5...2.5 mm AWG 14...AWG 12 motor/braking resistor, Screw terminal 1.5...4 mm AWG 14...AWG 10 power supply
  • motor power kW: 0.75 kW 200...240 V
  • [Us] rated supply voltage: 200...240 V - 15...10 %
  • Relative humidity: 5...95 % without condensation IEC 60068-2-3, 5...95 % without dripping water IEC 60068-2-3
  • Protection type: Input phase breaks drive, Overcurrent between output phases and earth drive, Overheating protection drive, Short-circuit between motor phases drive, Thermal protection drive
  • Response time: 8 ms +/- 0.7 ms LI1...LI6 logic, 2 ms R1A, R1B, R1C relay, 2 ms R2A, R2C relay
  • Switching frequency: 2...16 kHz adjustable
  • Line current: 10.1 A 200 V 1 phase 0.75 kW 1 hp, 8.5 A 240 V 1 phase 0.75 kW 1 hp
  • Product or component type: Variable speed drive
  • Apparent power: 2 kVA 240 V 1 phase 0.75 kW 1 hp
  • Product certifications: NOM 117, C-Tick, CSA, GOST, UL
  • Product destination: Asynchronous motors, Synchronous motors
  • prospective line Isc: <= 1 kA 1 phase
  • Marking: CE
  • Product specific application: Complex machines
  • Nominal output current: 4.8 A 4 kHz 240 V 0.75 kW 1 hp
  • Pollution degree: 2 EN/IEC 61800-5-1
  • Function available: -
  • Maximum transient current: 7.2 A 60 s 0.75 kW 1 hp
  • Assembly style: With heat sink
  • Output frequency: 0.0005...0.599 kHz
  • Component name: ATV32
  • Nominal switching frequency: 4 kHz
  • EMC filter: Class C2 EMC filter integrated
  • Phase: 1 phase
  • Speed range: 1...100 asynchronous motor in open-loop mode
  • Ambient air temperature for operation: 14...122 F (-10...50 C) without derating, 122...140 F (50...60 C) with derating factor
  • Speed accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn
  • Ambient air temperature for storage: -13...158 F (-25...70 C)
  • Supply voltage limits: 170...264 V
  • Torque accuracy: +/- 15 %
  • Supply frequency: 50...60 Hz - 5...5 %
  • Transient overtorque: 170...200 %
  • Operating position: Vertical +/- 10 degree
  • Network frequency: 47.5...63 Hz
  • Braking torque: <= 170 % with braking resistor
  • Asynchronous motor control profile: Flux vector control without sensor, standard, Voltage/frequency ratio, 5 points, Voltage/frequency ratio, 2 points, Flux vector control without sensor - Energy Saving, NoLoad law, Voltage/frequency ratio - Energy Saving, quadratic U/f
  • Motor power hp: 1 hp 200...240 V
  • Synchronous motor control profile: Vector control without sensor
  • Regulation loop: Adjustable PID regulator
  • Motor slip compensation: Automatic whatever the load, Not available in voltage/frequency ratio (2 or 5 points), Adjustable 0...300 %
  • Local signaling: 1 LED green CANopen run, 1 LED red CANopen error, 1 LED red drive fault, 1 LED red drive voltage
  • Output voltage: <= power supply voltage
  • Noise level: 43 dB 86/188/EEC
  • Insulation: Electrical between power and control
  • Supply: Internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 % <= 10 mA overload and short-circuit protection
  • Analogue input number: 3
  • Analogue input type: Voltage AI1 0...10 V DC 30000 Ohm 10 bits, Bipolar differential voltage AI2 +/- 10 V DC 30000 Ohm 10 bits, Current AI3 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
  • Sampling duration: 2 ms AI1, AI2, AI3 analog, 2 ms AO1 analog
  • Accuracy: +/- 0.2 % AI1, AI2, AI3 for a temperature of -10...60 C, +/- 0.5 % AI1, AI2, AI3 for a temperature of 25 C, +/- 1 % AO1 for a temperature of 25 C, +/- 2 % AO1 for a temperature of -10...60 C
  • Linearity error: +/- 0.2...0.5 % of maximum value AI1, AI2, AI3, +/- 0.3 % AO1
  • Analogue output number: 1
  • Analogue output type: Software-configurable current AO1 0...20 mA 800 Ohm 10 bits, Software-configurable voltage AO1 0...10 V 470 Ohm 10 bits
  • Discrete output number: 3
  • Discrete output type: Configurable relay logic R1A, R1B, R1C NO/NC 100000 cycles, Configurable relay logic R2A, R2B NO 100000 cycles, Logic LO
  • Minimum switching current: 5 mA 24 V DC configurable relay logic
  • Maximum switching current: 3 A 250 V AC resistive (cos phi = 1 R1, 4 A 30 V DC resistive (cos phi = 1 R1, 2 A 250 V AC inductive (cos phi = 0.4 R1, R2, 2 A 30 V DC inductive (cos phi = 0.4 R1, R2, 5 A 250 V AC resistive (cos phi = 1 R2, 5 A 30 V DC resistive (cos phi = 1 R2
  • Discrete input number: 7
  • Discrete input type: Programmable (sink/source) LI1...LI4 24...30 V DC level 1 PLC, Programmable as pulse input 20 kpps LI5 24...30 V DC level 1 PLC, Switch-configurable PTC probe LI6 24...30 V DC, Safe torque off STO 24...30 V DC 1500 Ohm
  • Discrete input logic: Negative logic (sink) LI1...LI6 > 19 V < 13 V, Positive logic (source) LI1...LI6 < 5 V > 11 V
  • Acceleration and deceleration ramps: U, Ramp switching, Deceleration ramp adaptation, Linear, CUS, S, Deceleration ramp automatic stop DC injection
  • Braking to standstill: By DC injection
  • Communication port protocol: CANopen, Modbus
  • Connector type: 1 RJ45 Modbus/CANopen on front face
  • Physical interface: 2-wire RS 485 Modbus
  • Transmission frame: RTU Modbus
  • Type of polarization: No impedance Modbus
  • Number of addresses: 1...247 Modbus, 1...127 CANopen
  • Method of access: Slave CANopen
  • Electromagnetic compatibility: Conducted radio-frequency immunity test level 3 IEC 61000-4-6, Voltage dips and interruptions immunity test IEC 61000-4-11, 1.2/50 s - 8/20 s surge immunity test level 3 IEC 61000-4-5, Electrical fast transient/burst immunity test level 4 IEC 61000-4-4, Electrostatic discharge immunity test level 3 IEC 61000-4-2, Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
  • Option card: Communication card CANopen daisy chain, Communication card CANopen open style, Communication card DeviceNet, Communication card Ethernet/IP, Communication card Profibus DP V1
