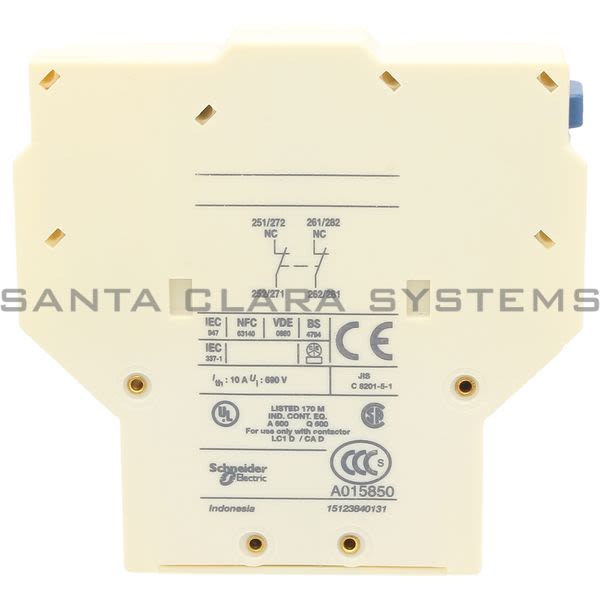

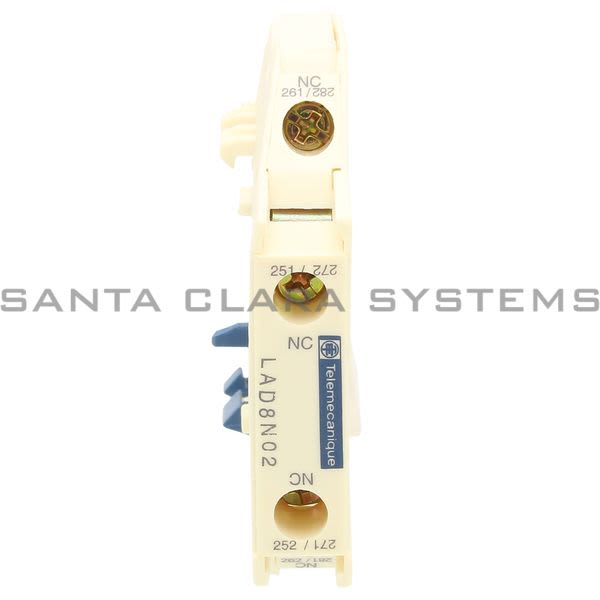

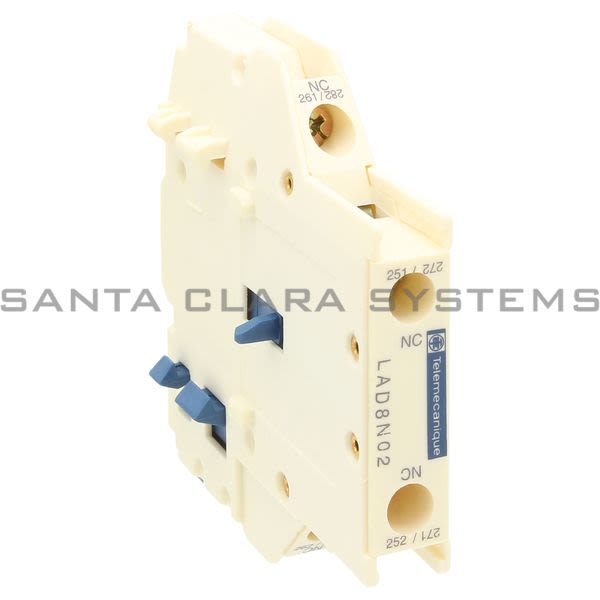

LAD8N02

Telemecanique - Auxiliary Contact Block

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Auxiliary Contact Block
Range of product: TeSys D control relayTeSys D
IP degree of protection: IP2x conforming to VDE 0660
Standards: EN 60947-5-1BS 4794VDE 0660IEC 60947-5-1NF C 63-140
Device short name: LA1
Width: 0.49 in (12.5 mm)
Protective treatment: TH conforming to IEC 60068
[Ui] rated insulation voltage: 690 V - conforming to IEC 60947-5-1600 V - certifications CSA600 V - certifications UL
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 3 Mcycles
Connections - terminals: Screw clamp terminals 1 cable 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endScrew clamp terminals 1 cable 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - without cable endScrew clamp terminals 1 cable 0...0 in² (1...2.5 mm²) - cable stiffness: solid - with cable endScrew clamp terminals 1 cable 0...0 in² (1...2.5 mm²) - cable stiffness: solid - without cable endScrew clamp terminals 2 cable 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - with cable endScrew clamp terminals 2 cable 0...0 in² (1...2.5 mm²) - cable stiffness: flexible - without cable endScrew clamp terminals 2 cable 0...0 in² (1...2.5 mm²) - cable stiffness: solid - with cable endScrew clamp terminals 2 cable 0...0 in² (1...2.5 mm²) - cable stiffness: solid - without cable end
Range: TeSys
[Ith] conventional free air thermal current: 10 A at <= 140 °F (60 °C)
System Voltage: 690 V AC 25...400 Hz
Insulation resistance: > 10 MOhm
Associated fuse rating: 10 A gG IEC 60947-5-1

Protection type: GG fuse <= 10 A rating according to operational current for Ue <= 690 V
Mounting location: Side
Environmental characteristic: Normal environment
Product certifications: ULCSA
Product or component type: Auxiliary contact block
Auxiliary contacts operation: Instantaneous
Irms rated making capacity: 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1
Pole contact composition: 2 NC
Permissible short-time rating: 100 A 1 s120 A 500 ms140 A 100 ms
Ambient air temperature for operation: 23...140 °F (-5...60 °C)
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Minimum switching current: 5 mA
Minimum switching voltage: 17 V
Non-overlap time: 1.5 ms on de-energisation (no overlap between NC and NO contact)1.5 ms on energisation (no overlap between NC and NO contact)
Overlap time: 1.5 ms
