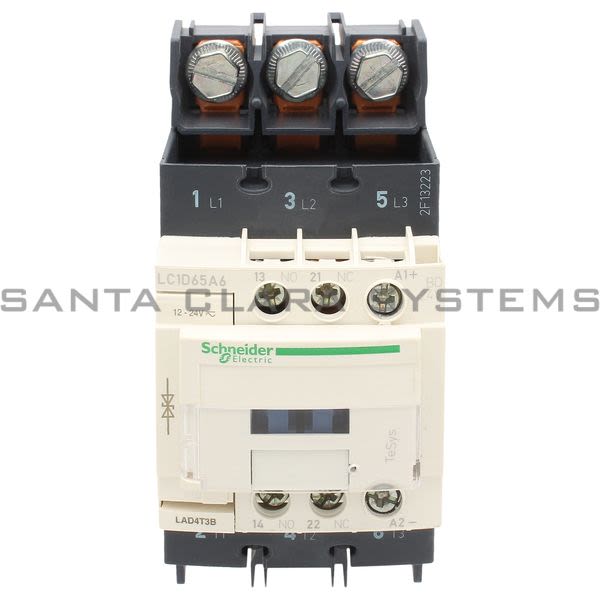

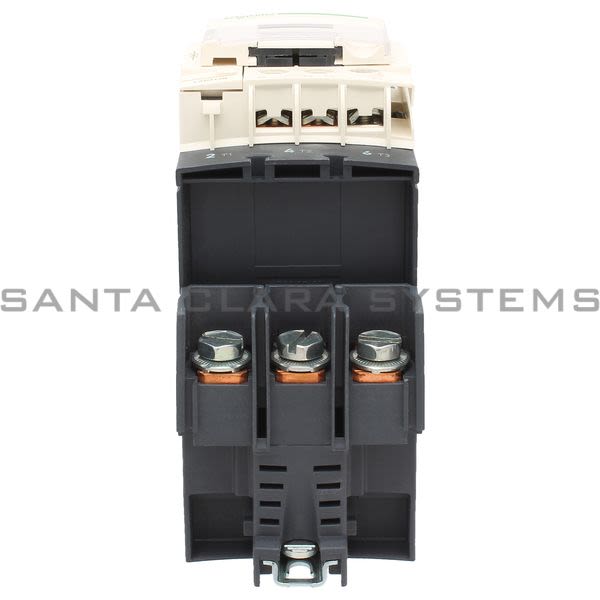

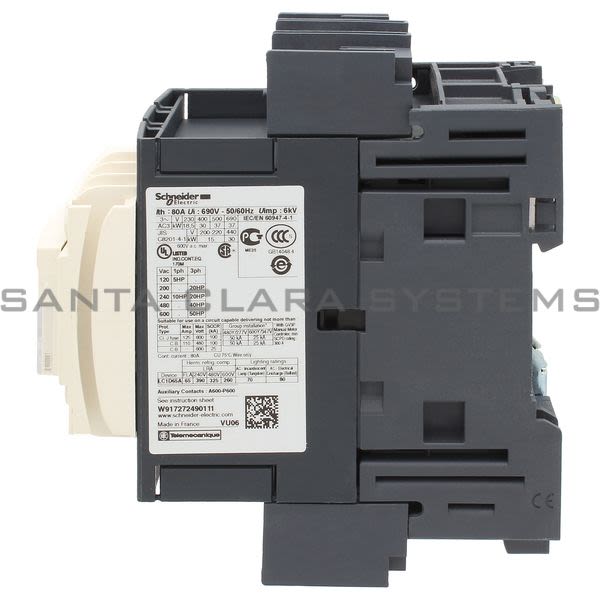

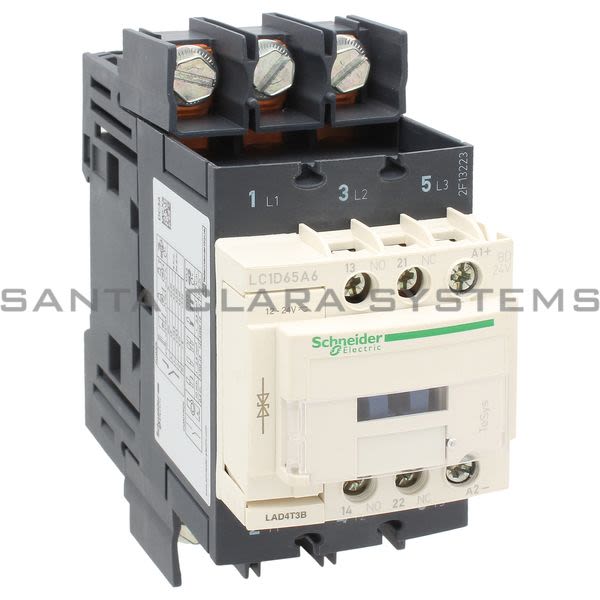

LC1D65A6BD

Telemecanique - TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 24 V DC standard coil

Current response time:

By 5AM PT on Thursday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 24 V DC standard coil
Product weight: 2.06 lb(US) (0.935 kg)
Range of product: TeSys D
IP degree of protection: IP20 front face conforming to IEC 60529
Standards: CSA C22.2 No 14EN 60947-4-1EN 60947-5-1IEC 60947-4-1IEC 60947-5-1UL 508
Device short name: LC1D
Width: 2.17 in (55 mm)
Height: 4.8 in (122 mm)
Depth: 4.72 in (120 mm)
Protective treatment: TH conforming to IEC 60068-2-30
[Ui] rated insulation voltage: 600 V power circuit certifications CSA600 V power circuit certifications UL690 V power circuit conforming to IEC 60947-4-1690 V signaling circuit conforming to IEC 60947-1600 V signaling circuit certifications CSA600 V signaling circuit certifications UL
[Uimp] rated impulse withstand voltage: Conforming to IEC 60947
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Mechanical durability: 10 Mcycles
Tightening torque: Control circuit: 15.04 lbf.in (1.7 N.m) - on lugs-ring terminals - with screwdriver flat Ø 6 mm screw : M3.5Control circuit: 15.04 lbf.in (1.7 N.m) - on lugs-ring terminals - with screwdriver Philips No 2 screw : M3.5Power circuit: 53.1 lbf.in (6 N.m) - on lugs-ring terminals hexagonal 0.39 in (10 mm) screw : M6
Connections - terminals: Control circuit: lugs-ring terminals - external diameter: 0.31 in (8 mm)Power circuit: lugs-ring terminals - external diameter: 0.65 in (16.5 mm)
Range: TeSys
Mounting support: PlateRail
[Ith] conventional free air thermal current: 80 A at <= 140 °F (60 °C) power circuit10 A at <= 140 °F (60 °C) signaling circuit
System Voltage: <= 300 V DC power circuit<= 690 V AC 25...400 Hz power circuit
Operating rate: 3600 cyc/h at <= 140 °F (60 °C)
Product name: TeSys D
[Uc] control circuit voltage: 24 V DC
Electrical durability: 1.45 Mcycles 65 A AC-3 at Ue <= 440 V1.4 Mcycles 80 A AC-1 at Ue <= 440 V
Insulation resistance: > 10 MOhm signaling circuit
motor power kW: 11 kW at 400 V AC 50/60 Hz AC-430 kW at 380...400 V AC 50/60 Hz AC-337 kW at 500 V AC 50/60 Hz AC-337 kW at 660...690 V AC 50/60 Hz AC-318.5 kW at 220...230 V AC 50/60 Hz AC-3
[Ie] rated operational current: 80 A (<= 140 °F (60 °C)) at <= 440 V AC AC-1 power circuit65 A (<= 140 °F (60 °C)) at <= 440 V AC AC-3 power circuit
Utilization category: AC-3AC-1AC-4
Control circuit voltage limits: 0.1...0.3 Uc drop-out at 140 °F (60 °C), DC0.75...1.25 Uc operational at 60 °C, DC
Poles description: 3P
Overvoltage category: III
Operating time: 16...24 ms opening42.5...57.5 ms closing

Associated fuse rating: 125 A gG at <= 690 V coordination type 1 power circuit125 A gG at <= 690 V coordination type 2 power circuit10 A gG signaling circuit conforming to IEC 60947-5-1
Control circuit type: DC standard
Coil technology: Built-in bidirectional peak limiting diode suppressor
Time constant: 34 ms
Pollution degree: 3
Product or component type: Contactor
inrush power in W: 19 W at 68 °F (20 °C)
Ambient air temperature for operation: 23...140 °F (-5...60 °C)
hold-in power consumption in W: 7.4 W at 68 °F (20 °C)
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Contactor application: Motor controlResistive load
Auxiliary contacts type: Type mechanically linked (1 NO + 1 NC) conforming to IEC 60947-5-1Type mirror contact (1 NC) conforming to IEC 60947-4-1
Permissible ambient air temperature around the device: -40...158 °F (-40...70 °C) at Uc
Signaling circuit frequency: 25...400 Hz
Minimum switching current: 5 mA signaling circuit
Fire resistance: 1562 °F (850 °C) conforming to IEC 60695-2-1
Pole contact composition: 3 NO
Minimum switching voltage: 17 V signaling circuit
Flame retardance: V1 conforming to UL 94
Non-overlap time: 1.5 ms on de-energisation (between NC and NO contact)1.5 ms on energisation (between NC and NO contact)
Mechanical robustness: Vibrations contactor open 2 Gn, 5...300 HzVibrations contactor closed 4 Gn, 5...300 HzShocks contactor open 10 Gn for 11 msShocks contactor closed 15 Gn for 11 ms
Motor power hp: 40 hp at 460/480 V AC 50/60 Hz 3 phases motors5 hp at 115 V AC 50/60 Hz 1 phase motors10 hp at 230/240 V AC 50/60 Hz 1 phase motors20 hp at 200/208 V AC 50/60 Hz 3 phases motors20 hp at 230/240 V AC 50/60 Hz 3 phases motors50 hp at 575/600 V AC 50/60 Hz 3 phases motors
Auxiliary contact composition: 1 NO + 1 NC
Irms rated making capacity: 1000 A at 440 V power circuit conforming to IEC 60947140 A AC signaling circuit conforming to IEC 60947-5-1250 A DC signaling circuit conforming to IEC 60947-5-1
Rated breaking capacity: 1000 A at 440 V power circuit conforming to IEC 60947
[Icw] rated short-time withstand current: 100 A 1 s signaling circuit120 A 500 ms signaling circuit140 A 100 ms signaling circuit520 A <= 104 °F (40 °C) 10 s power circuit900 A <= 104 °F (40 °C) 1 s power circuit110 A <= 104 °F (40 °C) 10 min power circuit260 A <= 104 °F (40 °C) 1 min power circuit
Average impedance: 1.5 mOhm at 50 Hz - Ith 80 A power circuit
Power dissipation per pole: 6.3 W AC-39.6 W AC-1
Protective cover: With
Product certifications: CSAULGOSTCCC
Safety reliability level: B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
