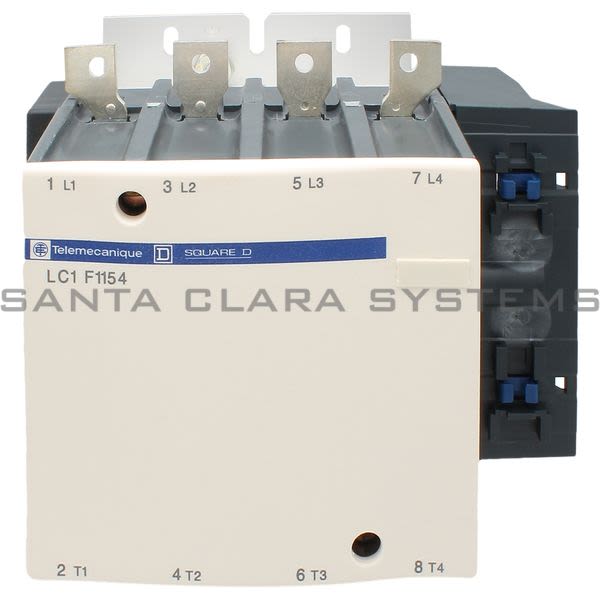

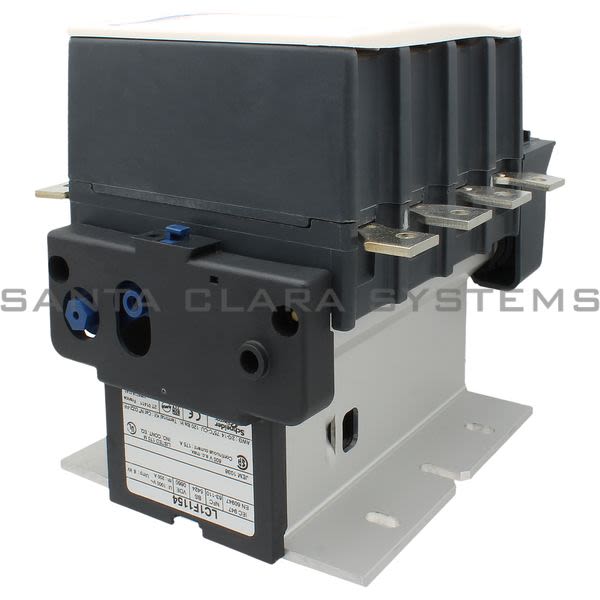

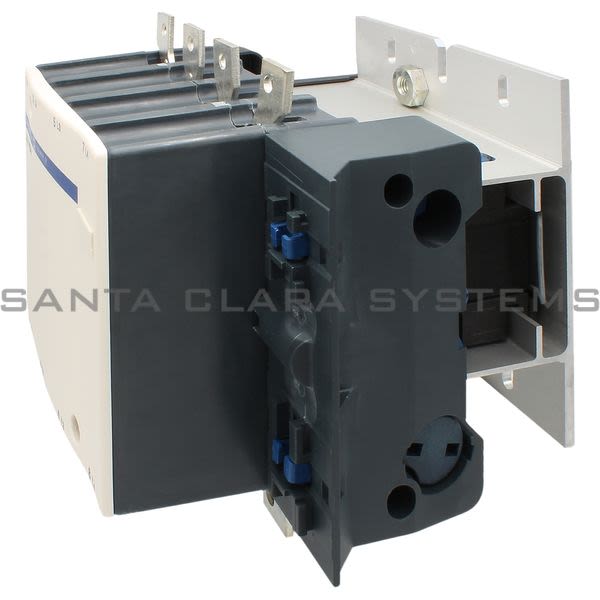

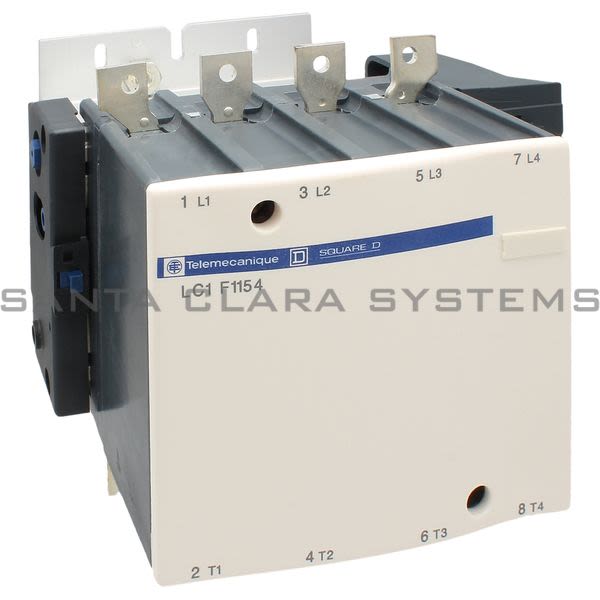

LC1F1154

Telemecanique - Contactor

Product Summary:

Product weight: 8.44 lb(US) (3.83 kg)
Standards: JIS C8201-4-1EN 60947-1IEC 60947-1EN 60947-4-1IEC 60947-4-1
Device short name: LC1F
Width: 7.89 in (200.5 mm)
Height: 6.38 in (162 mm)

Current response time:

6 Minutes 45 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Contactor
Product weight: 8.44 lb(US) (3.83 kg)
IP degree of protection: IP2x front face with shrouds (ordered separately) conforming to IEC 60529IP2x front face with shrouds (ordered separately) conforming to VDE 0106
Standards: JIS C8201-4-1EN 60947-1IEC 60947-1EN 60947-4-1IEC 60947-4-1
Device short name: LC1F
Width: 7.89 in (200.5 mm)
Height: 6.38 in (162 mm)
Depth: 6.73 in (171 mm)
Protective treatment: TH
[Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C
[Uimp] rated impulse withstand voltage: 8 kV
Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
Tightening torque: Power circuit: 88.5 lbf.in (10 N.m)
Connections - terminals: Power circuit: connector 1 cable(s) 0.15 in² (95 mm²)Power circuit: lugs-ring terminals 1 cable(s) 0.15 in² (95 mm²)Power circuit : bolted connectionPower circuit : bar 2 x (20 x 3 mm)
Range: TeSys
Mounting support: Plate
[Ith] conventional free air thermal current: 200 A at <= 104 °F (40 °C)
System Voltage: <= 1000 V AC 50/60 Hz<= 460 V DC
Product name: TeSys F

[Ie] rated operational current: 200 A (<= 104 °F (40 °C)) at <= 440 V AC AC-1
Utilization category: AC-1
Poles description: 4P
Overvoltage category: III
Associated fuse rating: 125 A aM at <= 440 V200 A gG at <= 440 V
Product or component type: Contactor
Ambient air temperature for operation: 23...131 °F (-5...55 °C)
Irms rated making capacity: 1150 A AC conforming to IEC 60947-4-1
Ambient air temperature for storage: -76...176 °F (-60...80 °C)
Contactor application: Resistive load
Rated breaking capacity: 920 A conforming to IEC 60947-4-1
Permissible ambient air temperature around the device: -40...158 °F (-40...70 °C)
[Icw] rated short-time withstand current: 1100 A <= 104 °F (40 °C) 10 s640 A <= 104 °F (40 °C) 30 s520 A <= 104 °F (40 °C) 1 min400 A <= 104 °F (40 °C) 3 min320 A <= 104 °F (40 °C) 10 min
Mechanical robustness: Vibrations contactor closed 6 Gn, 5...300 HzShocks contactor open 9 Gn for 11 msVibrations contactor open 2 Gn, 5...300 HzShocks contactor closed 15 Gn for 11 ms
Pole contact composition: 4 NO
Average impedance: 0.37 mOhm at 50 Hz - Ith 200 A
Power dissipation per pole: 15 W AC-1
Product certifications: DNVCBULBVLROS (Lloyds register of shipping)ABSRINARMRoSCSA
