LX1D6M5

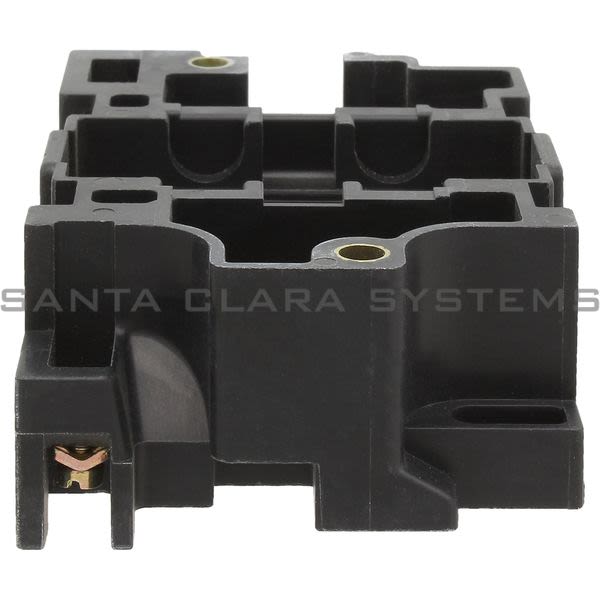

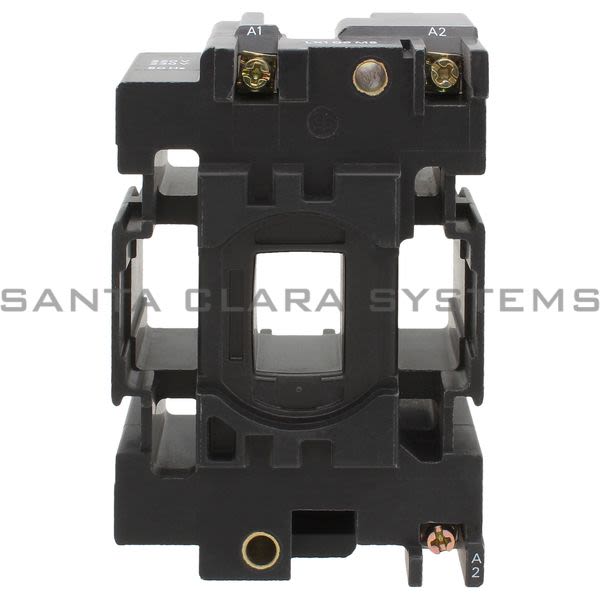

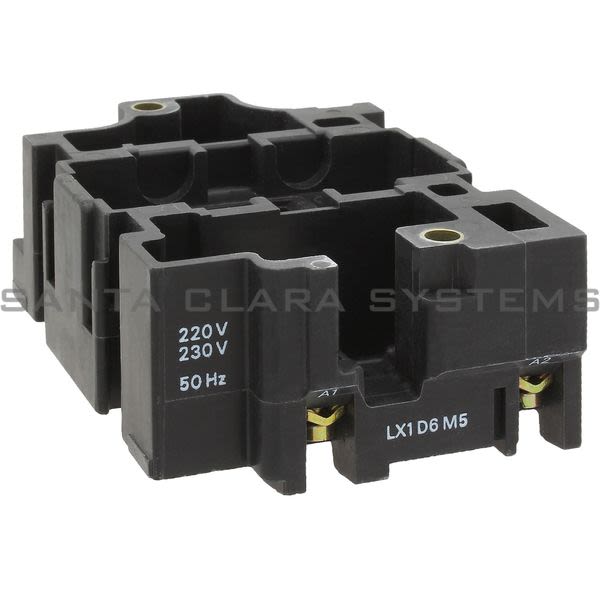

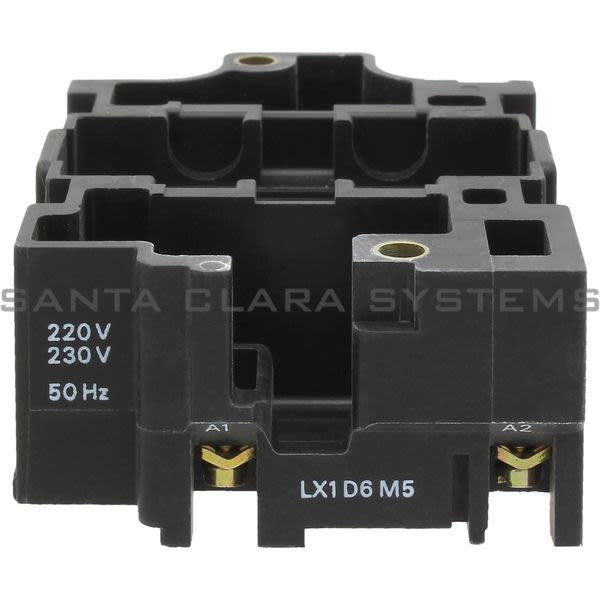

Telemecanique - Coil

Product Summary:

Product weight: 0.62 lb(US) (0.28 kg)
Device short name: LX1D6
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: 3600 cyc/h at <= 140 °F (60 °C)

Current response time:

8 Minutes 30 Seconds

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Coil
Product weight: 0.62 lb(US) (0.28 kg)
Device short name: LX1D6
Mechanical durability: 10 Mcycles
Range: TeSys
Operating rate: 3600 cyc/h at <= 140 °F (60 °C)
[Uc] control circuit voltage: 220 V AC 50 Hz
Control circuit voltage limits: 0.3...0.6 Uc at 131 °F (55 °C) drop-out 50/60 Hz0.8...1.1 Uc at 131 °F (55 °C) operational 50 Hz0.85...1.1 Uc at 131 °F (55 °C) operational 60 Hz
Control circuit type: AC 50 Hz

Coil technology: Without built-in suppressor module
Ambient air temperature for operation: 23...140 °F (-5...60 °C)
Product or component type: Contactor coil
inrush power in VA: 200 VA at 68 °F (20 °C) (cos ? 0.75) 50 Hz
hold-in power consumption in VA: 20 VA at 68 °F (20 °C) (cos ? 0.3) 50 Hz
Heat dissipation: 6...10 W at 50/60 Hz
Average resistance: 127 Ohm at 68 °F (20 °C)
Inductance of closed circuit: 7.5 H
Product compatibility: LC1D80LC1D95

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LX1D6M5 . Santa Clara Systems carries 10,643 items from Telemecanique.
