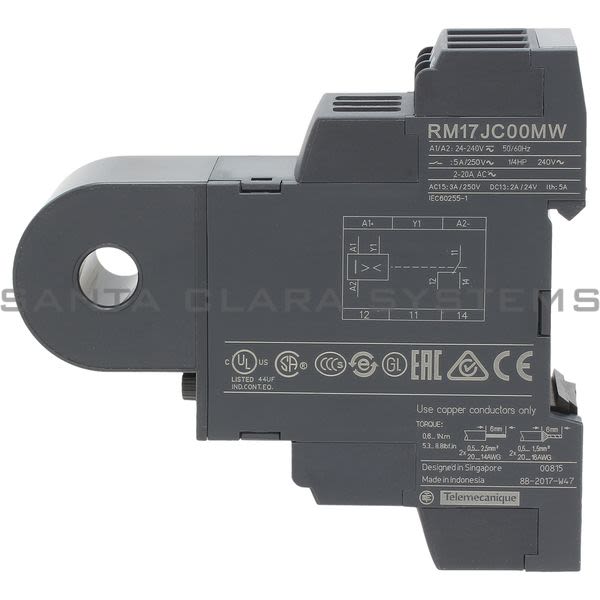

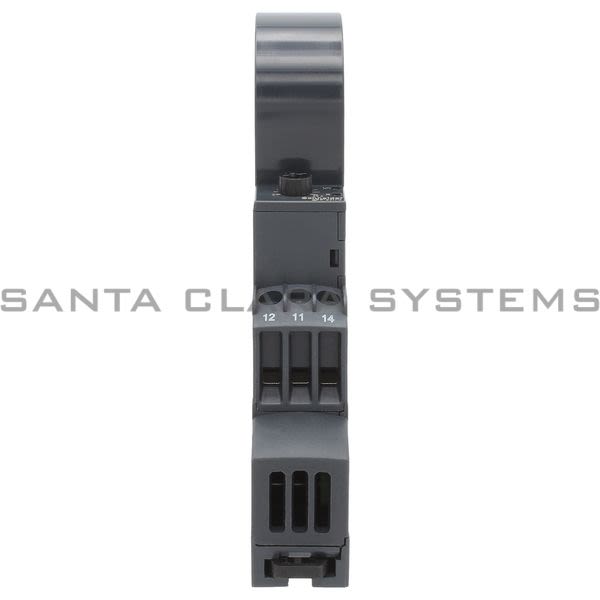

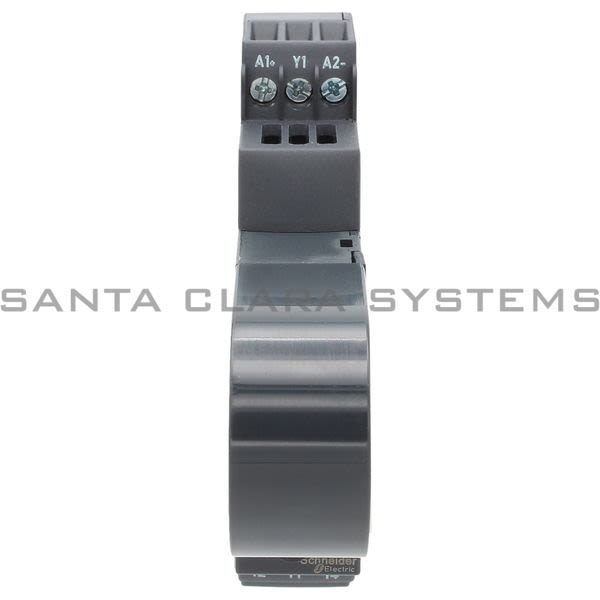

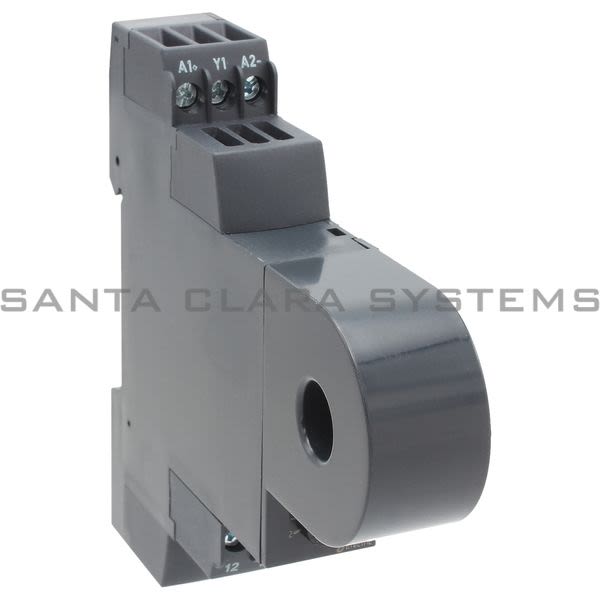

RM17JC00MW

Telemecanique - current control relay RM17-J - range: 2..20 A

Current response time:

By 5AM PT on Friday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: current control relay RM17-J - range: 2..20 A
Product weight: 0.29 lb(US) (0.13 kg)
Range of product: Zelio Control
IP degree of protection: IP20(terminals) conforming to IEC 60529, IP30 (casing) conforming to IEC 60529
Standards: EN/IEC 60255-6
Width: 0.69 in (17.5 mm)
[Ui] rated insulation voltage: 400 V conforming to IEC 60664-1
Mechanical durability: 30000000 cycles
Tightening torque: 5.31...8.85 lbf.in (0.6...1 N.m) conforming to IEC 60947-1
Connections - terminals: Screw terminals 1 x 0.5...1 x 4 mm - AWG 20...AWG 11, solid cable without cable end, Screw terminals 2 x 0.5...2 x 2.5 mm - AWG 20...AWG 14, solid cable without cable end, Screw terminals 1 x 0.2...1 x 2.5 mm - AWG 24...AWG 12, flexible cable with cable end, Screw terminals 2 x 0.2...2 x 1.5 mm - AWG 24...AWG 16, flexible cable with cable end
Mounting support: 35 mm symmetrical DIN rail conforming to EN/IEC 60715
Operating rate: <= 360 operations/hour under full load
Vibration resistance: 0.35 mm (f = 5...57.6 Hz) conforming to IEC 60068-2-6, 1 gn (f = 57.6...150 Hz) conforming to IEC 60255-21-1
Shock resistance: 15 gn 11 ms conforming to IEC 60255-21-1
Electrical durability: 100000 cycles
Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5, > 500 MOhm at 500 V DC conforming to IEC 60664-1
Utilization category: AC-12 conforming to IEC 60947-5-1, AC-13 conforming to IEC 60947-5-1, AC-14 conforming to IEC 60947-5-1, AC-15 conforming to IEC 60947-5-1, DC-12 conforming to IEC 60947-5-1, DC-13 conforming to IEC 60947-5-1, DC-14 conforming to IEC 60947-5-1
Control circuit voltage limits: - 15 % + 10 % Un
[Us] rated supply voltage: 24...240 V AC/DC, 50/60 Hz +/- 10 %
Overvoltage category: III conforming to IEC 60664-1
Relative humidity: 95 % at 131 F (55 C) conforming to IEC 60068-2-30
Response time: < 200 ms in the event of a fault
Housing material: Self-extinguishing plastic
Dielectric test voltage: 2 kV AC 50 Hz
Maximum switching voltage: 250 V AC/DC
Immunity to micro breaks: 10 ms
Product or component type: Modular measurement and control relays
Electromagnetic compatibility: Emission standard for industrial environments conforming to EN/IEC 61000-6-4, Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3, Immunity for industrial environments conforming to NF EN/IEC 61000-6-2
Relay type: Current control relay
Supply voltage limits: 20.4...264 V AC/DC

Relay name: RM17JC
Product certifications: GOST, GL, C-Tick, UL, CSA
Relay monitored parameters: Overcurrent detection
power consumption in W: <= 1 W
Ambient air temperature for storage: -40...158 F (-40...70 C)
Time delay type: Without
Control circuit frequency: 40...70 Hz sinusoidal
Ambient air temperature for operation: -4...122 F (-20...50 C)
switching capacity in VA: 1250 VA
Output contacts: 1 C/O
Minimum switching current: 10 mA at 5 V DC
Nominal output current: 5:00 AM
power consumption in VA: <= 3 VA
Measuring cycle: <= 30 ms measurement cycle as true rms value
Measurement range: 2...20 A current
Hysteresis: 15 % fixed of threshold setting
Run-up delay at power-up: 0.5 s
Pollution degree: 3 conforming to IEC 60664-1
Measurement accuracy: +/- 10 % of the full scale value
Repeat accuracy: +/- 0.5 % input and measurement circuit
Non-dissipating shock wave: 4 kV
Measurement error: +/- 0.05 %/C with temperature variation, < 1 % over the whole range with voltage variation
Polarity: Yes DC
Threshold setting: 10...100 %
Input current: 100000 mA permanent at 25 C, 300000 mA non repetitive < 3 s at 25 C
Marking: CE : EMC 89/336/EEC, CE : 73/23/EEC
Insulation: Between supply and measurement
Operating position: Any position without derating
Local signaling: LED green power ON, LED yellow relay ON
Contacts material: Cadmium free
