RPF2BB7

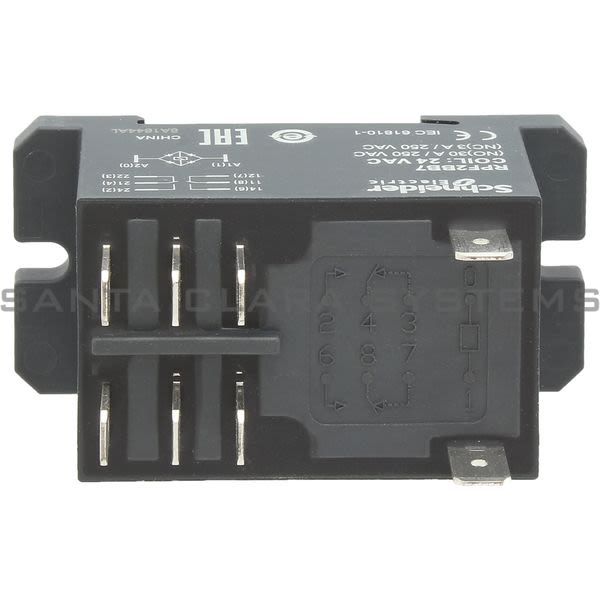

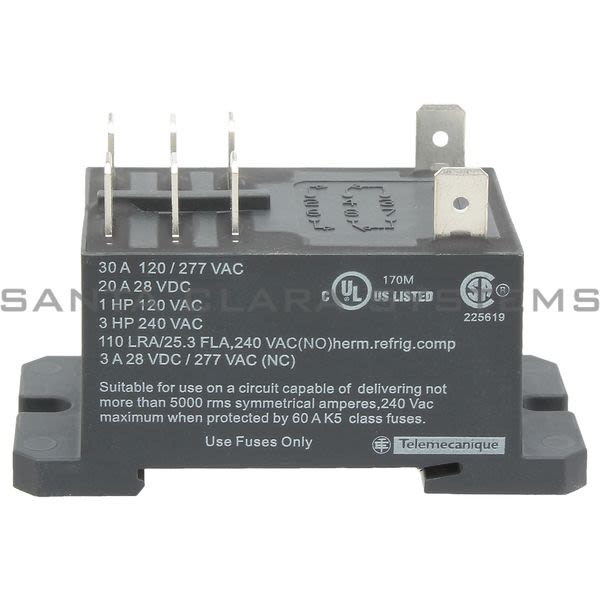

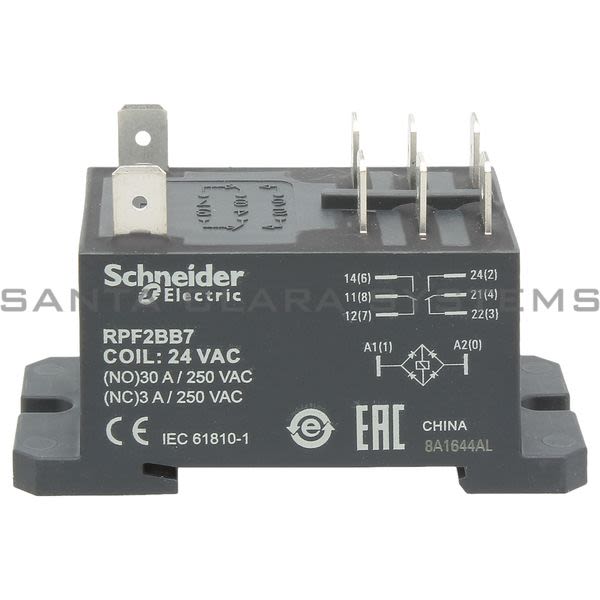

Telemecanique - power relay plug-in - Zelio RPF - 2 CO - 24 V AC - 30 A

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: power relay plug-in - Zelio RPF - 2 CO - 24 V AC - 30 A
Product weight: 0.18 lb(US) (0.082 kg)
Range of product: Zelio Relay
IP degree of protection: IP40 conforming to EN/IEC 60529
Standards: EN/IEC 61810-1, CSA C22.2 No 14, UL 508
Device short name: RPF
[Ui] rated insulation voltage: 250 V conforming to IEC, 300 V conforming to UL
[Uimp] rated impulse withstand voltage: 4 kV 1.2/50 s
Mechanical durability: 5000000 cycles
Mounting support: Panel, DIN rail
Operating rate: <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load
[Uc] control circuit voltage: 24 V AC
Vibration resistance: 3 gn (+/- 1 mm, f = 10...150 Hz) 5 cycles in operation, 10 gn (+/- 1 mm, f = 10...150 Hz) 5 cycles not operating
Shock resistance: 10 gn in operation, 30 gn not operating
Electrical durability: 100000 cycles resistive load
[Ie] rated operational current: 30 A at 250 V AC (for NO) conforming to IEC, 30 A at 277 V AC (for NO) conforming to UL, 20 A at 28 V DC (for NO) conforming to UL, 3 A at 250 V AC (for NC) conforming to IEC, 3 A at 28 V DC (for NC) conforming to IEC, 3 A at 277 V AC (for NC) conforming to UL, 3 A at 28 V DC (for NC) conforming to UL, 25 A at 28 V DC (for NO) conforming to IEC
Control circuit voltage limits: 19.2...26.4 V
Operating time: 25 ms
Control type: Without lockable test button
Dielectric strength: 2000 V AC between poles with basic insulation, 1500 V AC between contacts with micro disconnection insulation, 4000 V AC between coil and contact with reinforced insulation
Series name: Power
Product or component type: Plug-in relay

Product certifications: CSA, CE, GOST, UL
Ambient air temperature for storage: -40...185 F (-40...85 C)
Contacts type and composition: 2 C/O
Ambient air temperature for operation: -40...131 F (-40...55 C)
Maximum switching voltage: 250 V conforming to IEC
Maximum switching capacity: 7500 VA/700 W
Shape of pin: Flat
Minimum switching capacity: 6000 mW (500 mA/ 12 V)for NO, 170 mW (10 mA/ 6 V)for NC
Contacts material: Silver tin oxide
Pollution degree: 3
[Ithe] conventional enclosed thermal current: 25 A at -40...131 F (-40...55 C)for relays side by side without a gap, 30 A at -40...131 F (-40...55 C)for 13 mm gap between two relays
Load current: 25 A at 28 V DC, 30 A at 250 V AC
Utilization coefficient: 10%
Average consumption: 4 VAat 60 Hz
Drop-out voltage threshold: >= 0.15 Uc
Reset time: 25 ms
Average resistance: 170 Ohm (tolerance +/- 15 %)at 68 F (20 C)
Safety reliability data: B10d = 100000
Protection category: RT II
Operating position: Any position
Device presentation: Complete product
