STBDDO3705

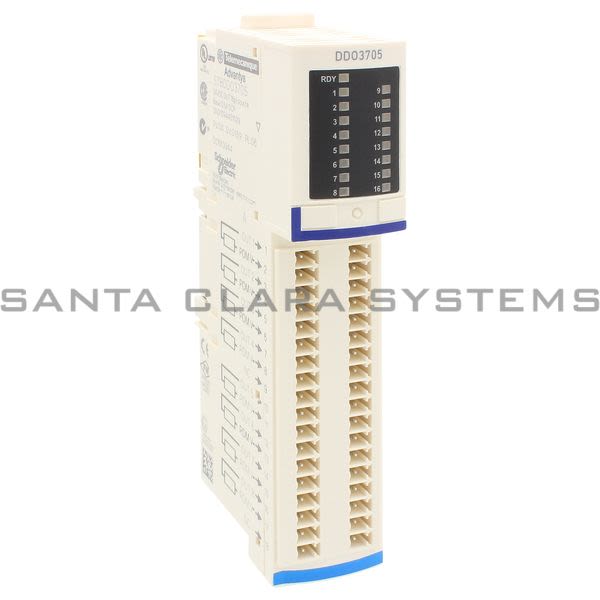

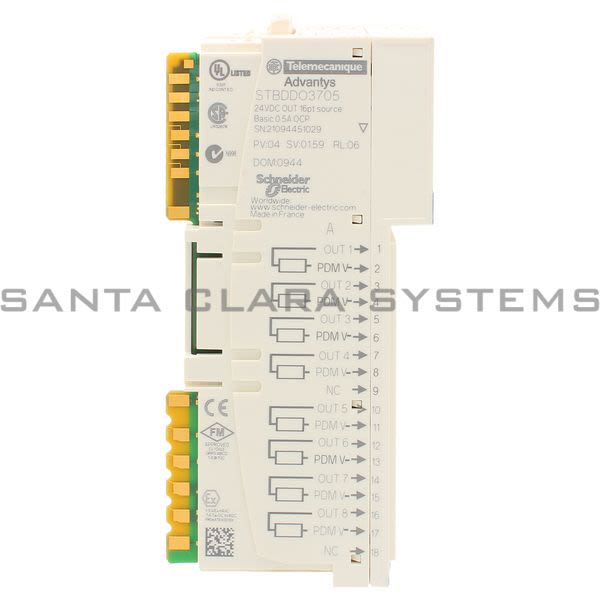

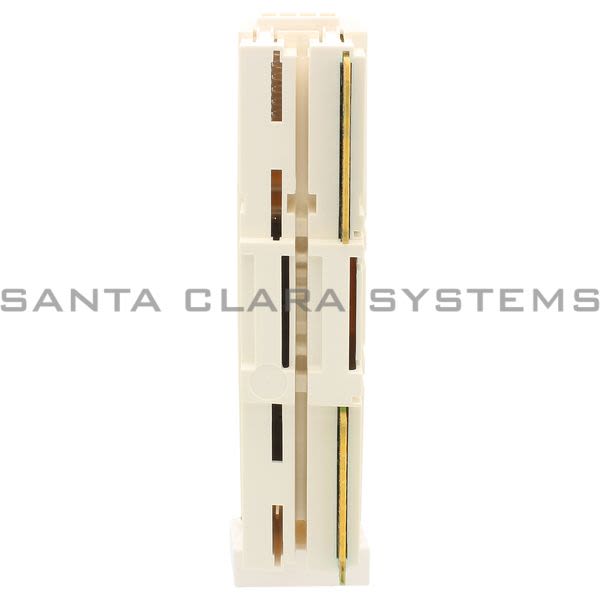

Telemecanique - basic digital output module STB - 24 V DC - 16 O

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: basic digital output module STB - 24 V DC - 16 O
Product weight: 0.19 lb(US) (0.086 kg)
Range of product: Modicon STB distributed I/O solution
IP degree of protection: IP20 EN 61131-2 class 1
Standards: EN/IEC 61131-2
Width: 5.05 in (128.3 mm)
Height: 0.55 in (13.9 mm)
Depth: 2.76 in (70 mm)
Operating altitude: <= 6561.68 ft. (2000 m)
Vibration resistance: +/-0.35 mm 10...58 Hz, 3 gn 58...150 Hz 35 x 7.5 mm symmetrical DIN rail, 5 gn 58...150 Hz 35 x 15 mm symmetrical DIN rail
Shock resistance: 30 gn 11 ms IEC 88 reference 2-27
[Us] rated supply voltage: 24 V DC
Overvoltage category: II
Relative humidity: 95 % 140 F (60 C) without condensation
Protection type: Reverse polarity protection, Short-circuit protection, Thermal overload protection, Power protection integrated fuse on PDM time lag 5 A
Response time: 2 ms off-to-on, 2 ms on-to-off
Discrete output current: 500 mA
Product or component type: Basic digital output module
Discrete output logic: Positive
Product certifications: UL, CSA, FM Class 1 Division 2
Discrete output number: 16

Permissible voltage: 19.2...30 V DC
Pollution degree: 2 IEC 60664-1
Discrete output type: Solid state
Output voltage: 19.2...30 V DC
Discrete output voltage: 24 V
Absolute maximum voltage: 35 V 1.3 ms
Discrete output voltage type: DC
Ambient air temperature for operation: 32...140 F without
Cold swapping: Yes
Hot swapping fallback: No for basic NIMs
Ambient air temperature for storage: -40...185 F without
Insulation between channels and logic bus: 1500 V for 1 minute
Leakage current: <= 0.4 mA at state 0 30 V
Load capacitance: <= 10 F
Load inductance: <= 1000 mH 4 Hz
Reset: Manual reset COM fault
Product compatibility: I/O base STBXBA3000, Power distribution module STBPDT3100/3105
Supply: Power distribution module
Current consumption: 135 mA 5 V DC logic bus
Marking: CE

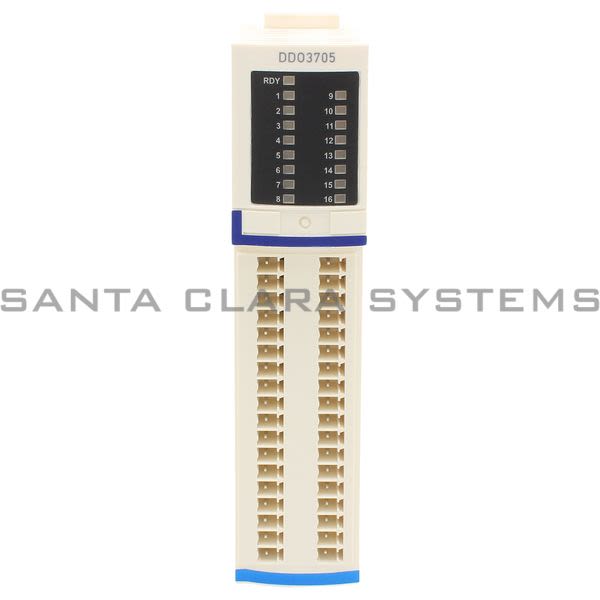

status LED: 1 LED green module status (RDY), 1 LED per channel green channel status (OUT1 to OUT16)
