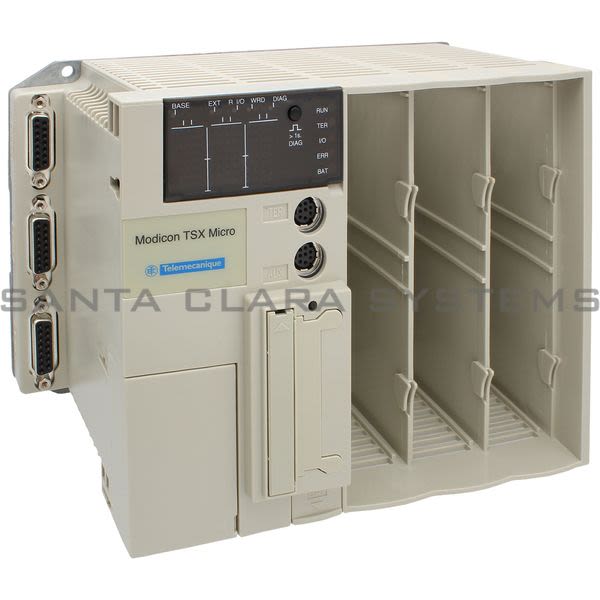

• Telemecanique TSX3722001 TSX Micro 37 21/22 PLC configurations Product Image

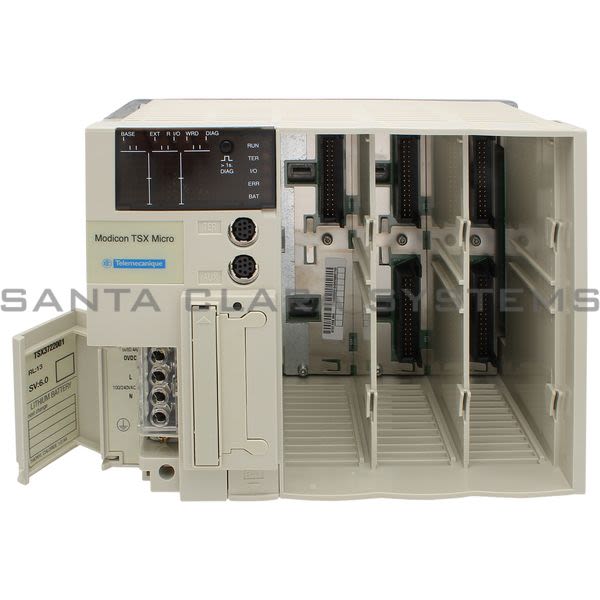

  • Telemecanique TSX3722001 TSX Micro 37 21/22 PLC configurations Product Image

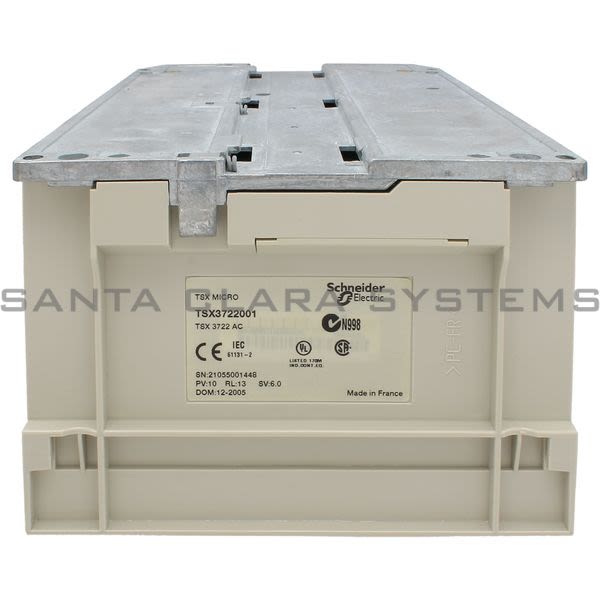

  • Telemecanique TSX3722001 TSX Micro 37 21/22 PLC configurations Product Image

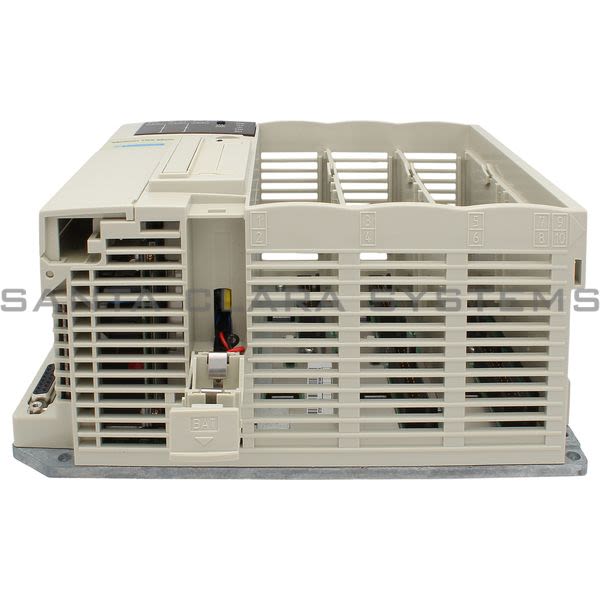

  • Telemecanique TSX3722001 TSX Micro 37 21/22 PLC configurations Product Image
  • Telemecanique TSX3722001 Barcode

TSX3722001

Product Summary:

  • range of product: Modicon TSX Micro automation platform
  • number of slots: 3
  • ambient air temperature for operation: 32...140 F (0...60 C)
  • product or component type: Modular base controller
  • analogue input type: 0...10 V 8
Get a Quote
           or
  • Description: TSX Micro 37 21/22 PLC configurations
  • real-time clock: With
  • height: 5.94 in (151 mm)
  • memory description: Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage Flash 15 Kwords data, Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage Flash 15 Kwords data, Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage Flash 15 Kwords data, Internal RAM 20 Kwords data Internal RAM (with PCMCIA card) 128 Kwords program and data Internal RAM 128 Kwords data storage Flash 15 Kwords data
  • depth: 5.98 in (152 mm)
  • maximum size of object areas: 256 %Mi 128 %KWi constant words 1 %MWi internal words, 256 %Mi 128 %KWi constant words 1 %MWi internal words, 256 %Mi 128 %KWi constant words 1 %MWi internal words
  • product weight: 3.86 lb(US) (1.75 kg)
  • execution time per instruction: 0.13 s Boolean without PCMCIA card 4.5 s arithmetic REAL floating without PCMCIA card 0.19 s Boolean with PCMCIA card 4.5 s arithmetic REAL floating with PCMCIA card, 0.13 s Boolean without PCMCIA card 4.5 s arithmetic REAL floating without PCMCIA card 0.19 s Boolean with PCMCIA card 4.5 s arithmetic REAL floating with PCMCIA card, 0.13 s Boolean without PCMCIA card 4.5 s arithmetic REAL floating without PCMCIA card 0.19 s Boolean with PCMCIA card 4.5 s arithmetic REAL floating with PCMCIA card, 0.13 s Boolean without PCMCIA card 4.5 s arithmetic REAL floating without PCMCIA card 0.19 s Boolean with PCMCIA card 4.5 s arithmetic REAL floating with PCMCIA card
  • execution time for 1: 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card, 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card, 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card, 5.88 100 % Boolean without PCMCIA card 0.27 65 % Boolean and 35 % numerical without PCMCIA card 4 100 % Boolean with PCMCIA card 0.266 65 % Boolean and 35 % numerical with PCMCIA card
  • application structure: 1 fast task 16 event tasks 1 master task, 1 fast task 16 event tasks 1 master task, 1 fast task 16 event tasks 1 master task
  • system overhead: 2.3 ms master task
  • protection type: Overload protection Short-circuit, Overload protection Short-circuit
  • network frequency: 50...60 Hz
  • total useful secondary power: 24 W
  • electromagnetic compatibility: Electrostatic discharge IEC 1000-4-2 level 3 Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2, Electrostatic discharge IEC 1000-4-2 level 3 Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2, Electrostatic discharge IEC 1000-4-2 level 3 Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2, Electrostatic discharge IEC 1000-4-2 level 3 Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2, Electrostatic discharge IEC 1000-4-2 level 3 Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2, Electrostatic discharge IEC 1000-4-2 level 3 Electromagnetic field immunity test IEC 1000-4-3 level 3 Resistance to fast transient IEC 1000-4-4 level 3 Immunity to impulse waves IEC 1000-4-5 Damped oscillatory wave IEC 1000-4-12 Immunity to electromagnetic interference IEC 61131-2
  • range of product: Modicon TSX Micro automation platform
  • number of slots: 3
  • ambient air temperature for operation: 32...140 F (0...60 C)
  • product or component type: Modular base controller
  • analogue input type: 0...10 V 8
  • ambient air temperature for storage: -13...158 F (-25...70 C)
  • primary voltage: 100...240 V 90...264 V AC
  • analogue output type: 0...10 V 1
  • relative humidity: 5...95 % without condensation for operation 10...95 % without condensation for operation, 5...95 % without condensation for operation 10...95 % without condensation for operation
  • input current: 2 mA < 60 A
  • counting input type: Discrete incremental counter 1 10 Hz Incremental 1 10 Hz, Discrete incremental counter 1 10 Hz Incremental 1 10 Hz
  • operating altitude: 0...6561.68 ft. (0...2000 m)
  • immunity to micro breaks: < 20 ms
  • integrated connection type: 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s, 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s 1 Modbus Modbus RTU 19.2 kbit/s
  • width: 13.44 in (341.4 mm)
  • output current: 0.5 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TSX3722001 . Santa Clara Systems carries 7,003 items from Telemecanique.
