TSXDSZ32T2
In stock and ready to ship
Product Summary:
- Product weight: 0.93 lb(US) (0.42 kg)
- Range of product: Modicon TSX Micro automation platform
- Category: 22556 - TSX MICRO, PL7 MICRO & ACCESS
- Returnability: N
- Country of origin: FR
Get a Quote
Current response time:
19 Minutes 42 Seconds

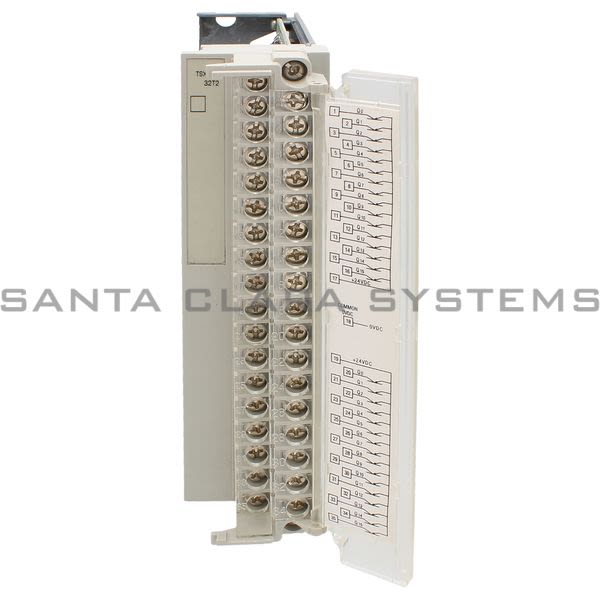

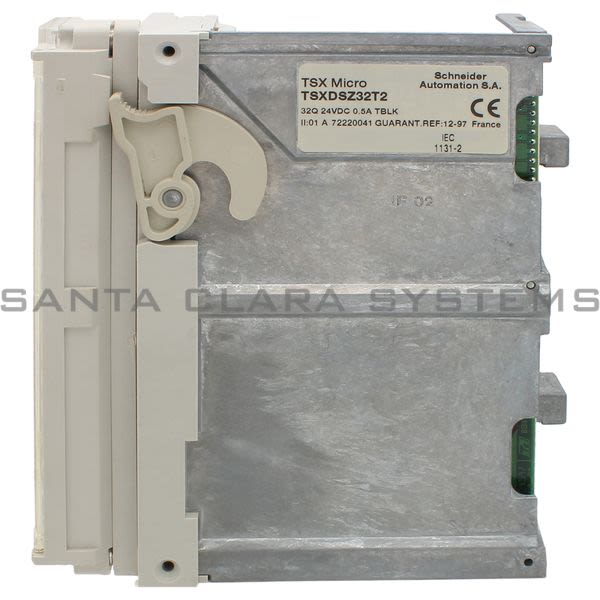

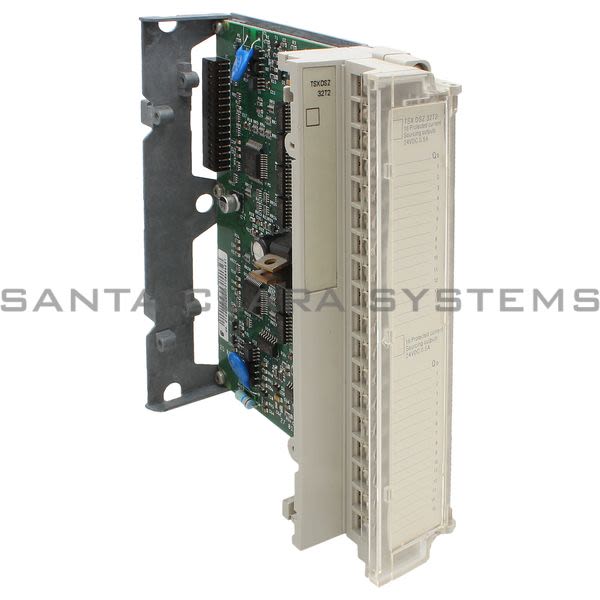

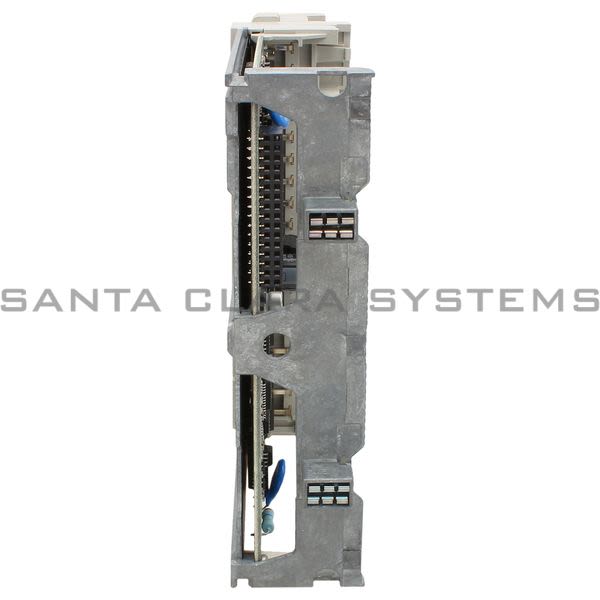

- Description: TSX Micro - 32 discret output DC
- Product weight: 0.93 lb(US) (0.42 kg)
- Range of product: Modicon TSX Micro automation platform
- Category: 22556 - TSX MICRO, PL7 MICRO & ACCESS
- Returnability: N
- Country of origin: FR
- Response time: < 0.5 ms at state 1< 0.5 ms at state 0
- Switching frequency: < 0.6/LI² Hz
- Output voltage limits: 19...30 V
- Product or component type: Discrete output module
- Output current limits: 0.625 A
- Discount Schedule: PC14
- Discrete output number: 32 screw terminal block
- Leakage current: <= 0.5 mA at state 0
- GTIN: 785901871088
- Discrete output voltage: 24 V DC
- [Ures] residual voltage: <= 0.3 V
- Nbr. of units in pkg.: 1
- Discrete output current: 0.5 mA
- Load impedance ohmic: 48 Ohm
- Package weight(Lbs): 2
- Discrete output logic: Positive
- Output overvoltage protection: By zener diode
- Output short-circuit protection: Current limiterThermal circuit breaker
- Reverse polarity protection: Reverse diode on power supply
- Paralleling of outputs: Yes : 2 maximum
- Current consumption: 94 mA
- power dissipation in W: 0.15 W by channel3.2 W by module
- Isolation voltage: 1500 V 1 s
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on TSXDSZ32T2 . Santa Clara Systems carries 10,643 items from Telemecanique.
- Tsx Micro - 32 Discret Output Dc
