VCF2GE

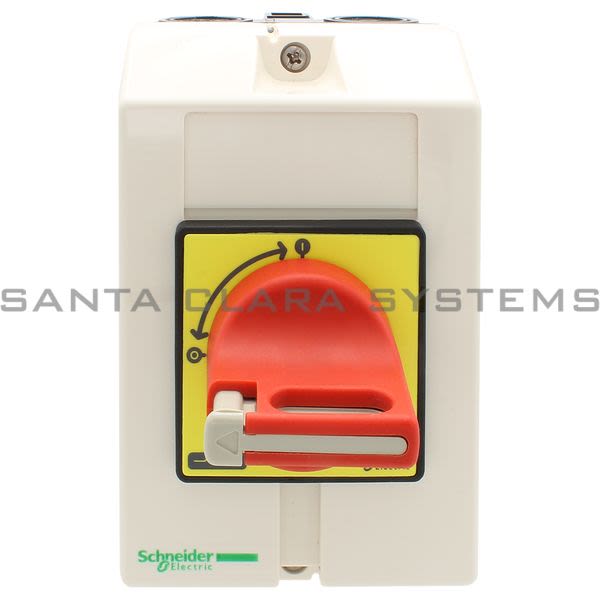

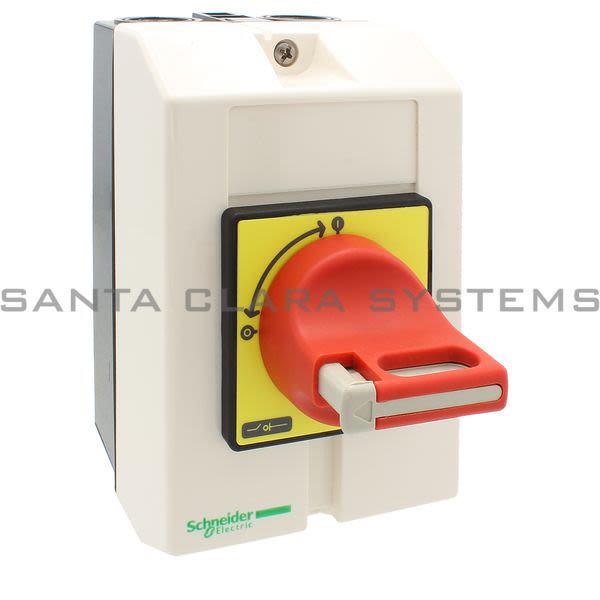

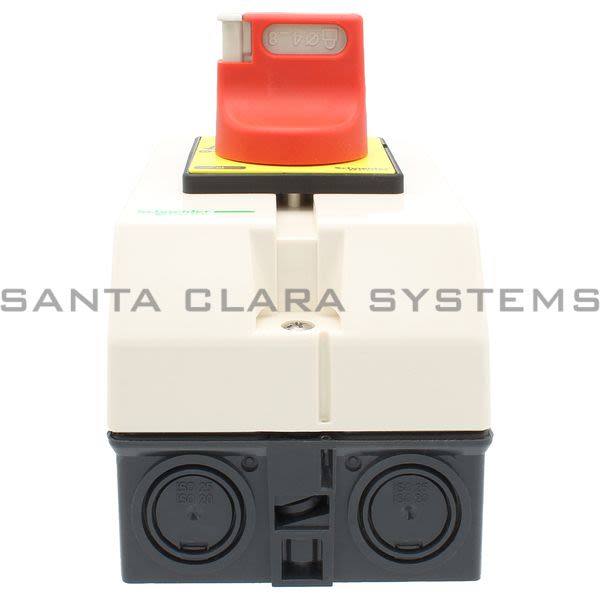

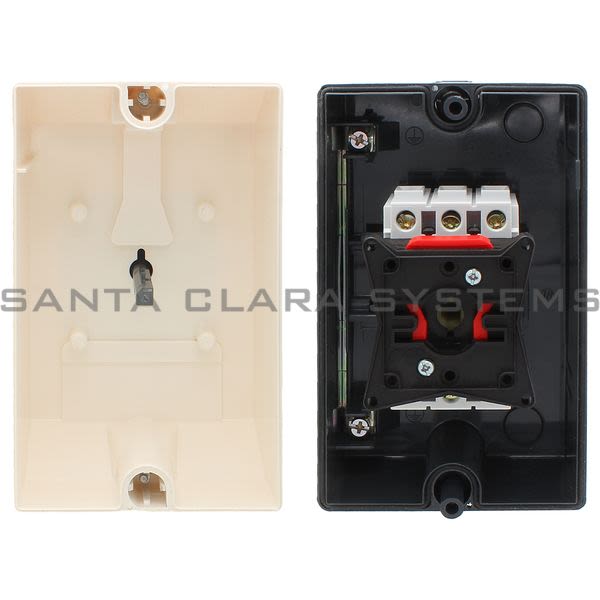

Telemecanique - TeSys VARIO - enclosed emergency stop switch disconnector - 32 A

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys VARIO - enclosed emergency stop switch disconnector - 32 A
Product weight: 1.1 lb(US) (0.5 kg)
IP degree of protection: IP65 conforming to IEC 60529
Standards: IEC 60947-4-1IEC 60204
Device short name: VCF
Width: 3.54 in (90 mm)
Height: 5.75 in (146 mm)
Depth: 5.16 in (131 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 8 kV
Mechanical durability: 100000 cycles
Tightening torque: Control circuit: 18.58 lbf.in (2.1 N.m) - on connector
Connections - terminals: Control circuit: connector cable 0.02 in² (10 mm²) - cable stiffness: solid -Control circuit : connector cable 6 mm² - cable stiffness: flexible - with cable end cable end
Range: TeSys
System Voltage: 690 V AC
Product name: TeSys VARIO
Electrical durability: 30000 cycles DC-1...5100000 cycles AC-21
[Ie] rated operational current: 29 A AC-23A 400 V
Poles description: 3P
Control type: Rotary handle

Breaking capacity: 320 A at 400 V (AC-21A)320 A at 400 V (AC-22A)320 A at 400 V (AC-23A)
Handle color: Red
Marking: 0 - 1
Product or component type: Emergency stop switch disconnector
[Ithe] conventional enclosed thermal current: 32 A
Mechanical robustness: Vibrations 10...150 Hz 1 gn IEC 60068-2-6Shocks 11 ms 30 Gn IEC 60068-2-27
Performance level: High performance
Ambient air temperature for operation: -4...122 °F (-20...50 °C)
rated operational power in W: 11 kW at 400 V AC-315 kWat 400 V AC-23
Intermittent duty class: 30
Making capacity: 400 A at 400 V AC-21A400 A at 400 V AC-22A400 A at 400 V AC-23A
Handle front plate color: Yellow
[Icm] rated short-circuit making capacity: 1 kA at 400 V at Ipeak
Rotary handle padlocking: 1 to 3 padlocks with 0.16...0.31 in (4...8 mm)
[Icw] rated short-time withstand current: 480 A at 400 V during 1 s
Rated conditional short-circuit current: 10 kA at 400 V - associated fuse 50 A aM10 kA at 400 V - associated fuse 50 A gG
Environmental characteristic: Standard environment
Suitability for isolation: Yes
Fire resistance: 1760 °F (960 °C) conforming to IEC 60595-2-1
Base dimension: 60 x 60 mm
